T&E 1/2" Dr. Digital Angle and Torque Adaptor
Details

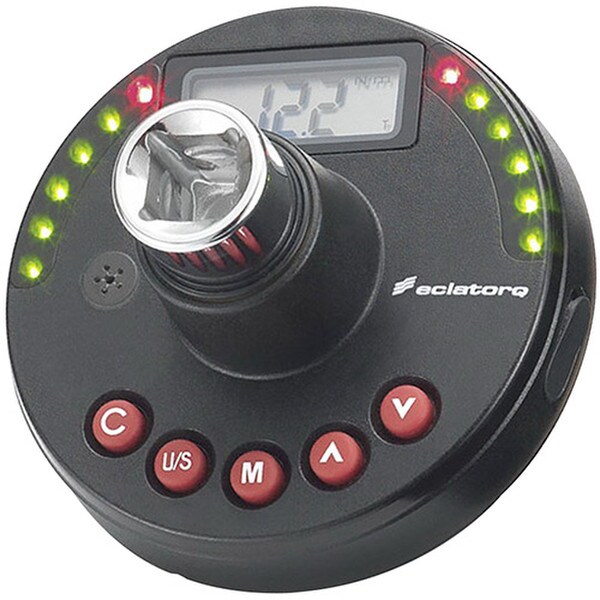

1/2" Dr Digital Angle and Torque Adaptor - T&E #AD340-CN

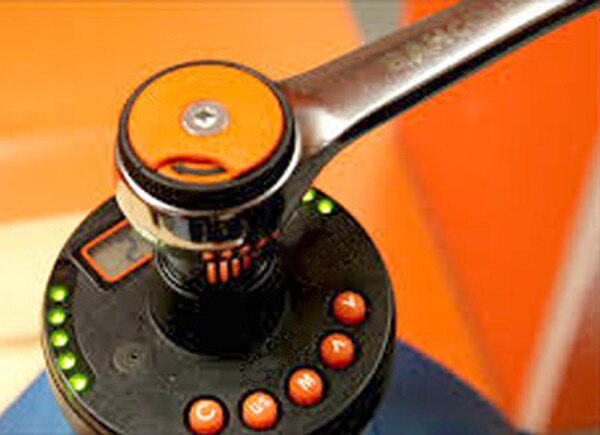

- Use with any 1/2" drive ratchet, bar or torque wrench. Multiple functions: angle setting, torque setting, unit setting, mode setting, data storage, data clear, data output and online calibration.

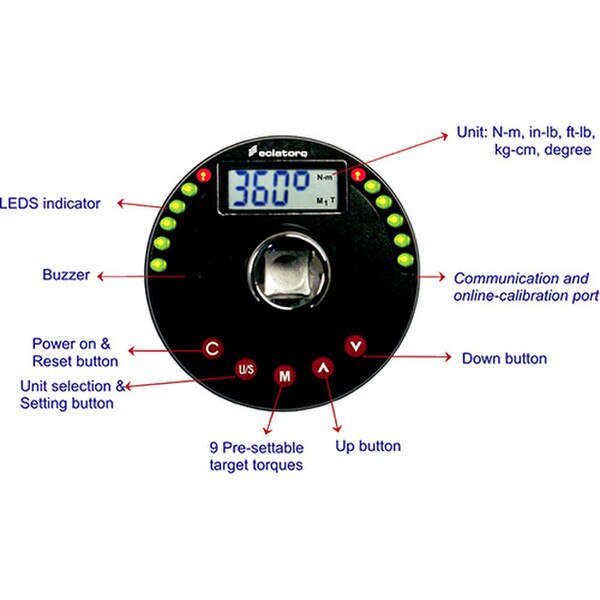

- Functions clockwise and counterclockwise. Five button settings, twelve bright LEDs (2 red and 10 green) and a large LCD visual screen.
- Torque accuracy: CW +/- 3%.
- Data memory size: 50 readings.
- Angle accuracy: +/- 2° (Rotating 90° at speed of 30°/second).
- Operating range: 340Nm, 207.5ft/lbs., 3,009in/lb., 3,469kg/cm, 999°.
- Measured angle / Torque range: 17 to 340Nm, 125 to 250.7ft/lbs., 150 to 3,009in/lb., 173 to 3,469kg/cm, 1° to 360°.
- Resolution: 0.1Nm, 0.1ft/lb., 1in/lb., 1kg/cm, 1° of angle.
- Pre-setting number: 9 Sets
- Operation mode: Peak hold/track
- Unit selection: Nm, in/lb., ft/lb., kg/cm, degree of angle
- Bright LEDs: 12 LED (2 red + 10 green)
- Battery: 2 x AAA
- Size: 3.3/8" x 3.3/8" x 2.3/8" (85 x 85 x 60mm)
