25T Two Jaw Puller
Details

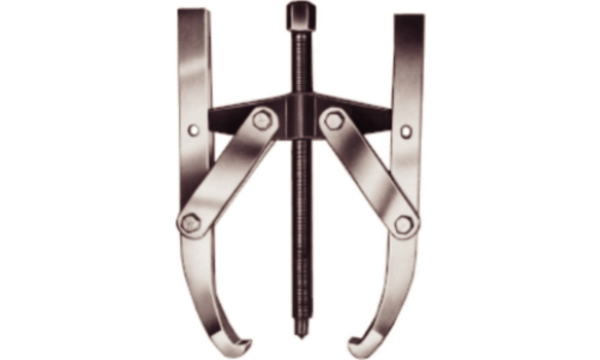

No.2-1048 - 2 Jaw Puller 25 Ton (Long Length)
The T&E 25 Ton Heavy-Duty 2-Jaw Puller is designed for demanding applications, featuring long-length jaws and two-hole position legs for versatility. Engineered for strength and durability, this puller is drop-forged from alloy steel, heat-treated, and equipped with a fine-thread forcing screw, ensuring maximum load capacity and precise force application.
Key Features:
- Heavy-Duty Construction: Drop-forged alloy steel for superior strength and durability.
- Long-Length Jaws: Ideal for applications requiring extended reach.
- Two-Hole Position Legs: Provides flexibility for different pulling tasks.
- Precision Machining: Narrow and wide jaw ends are precisely machined for a secure grip.
- Fine-Thread Forcing Screw: Ensures smooth and controlled force application.
Specifications:
- Capacity: 25 Ton
- Reach: 22" (560mm)
- Spread: 17" (430mm)
- Screw Size: 1-1/4" x 12 x 16"
- Weight: 43 lbs (19kg)
This heavy-duty gear puller is ideal for workshops, industrial applications, and automotive use, delivering exceptional performance and reliability.
