Cable Shears With Twin Cutting Edge 200mm 1000V VDE

(0) No Reviews yet
$‎224.00
SKU: 9516200

This item is IN STOCK

Details

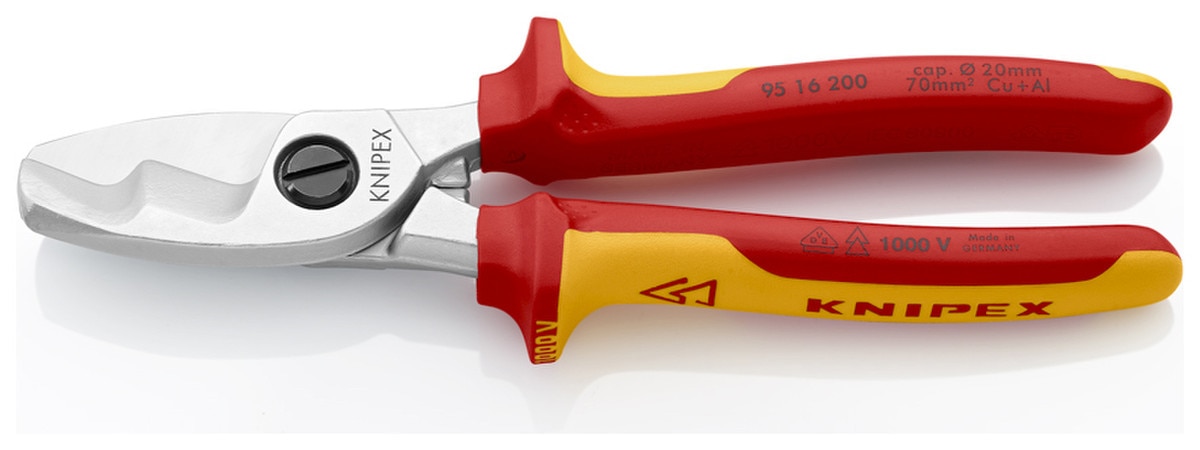

8" (200mm) VDE 1000V Cable Shears with Twin Cutting Edge - KINPEX® #95 16 200

  • For cutting copper and aluminium cables
  • Not suitable for steel wire and hard drawn copper conductors
  • Precision ground, hardened blades
  • Clean and smooth cut without crushing and deformation
  • Easy cutting with one-hand operation
  • Initial and final cut (upper and lower blade) allows cables of up to 20 mm diameter to be cut
  • Low hand force required due to favourable lever ratio and special blade geometry
  • Guard prevents operators’ fingers being pinched
  • Adjustable bolted joint, self-retaining screw
  • High-grade special tool steel, forged, oil-hardened
Applications:

  • Initial cut: using the front cutting edge to cut the insulating sheath on larger cable diameters leaves an ergonomic handle opening width.



  • Final cut: after cutting the sheath in the front profile the conductors in the rear part are cut. Initial cut in the front profile, final cut in the rear profile - to keep it as easy as possible.



Knipex made in Germany
