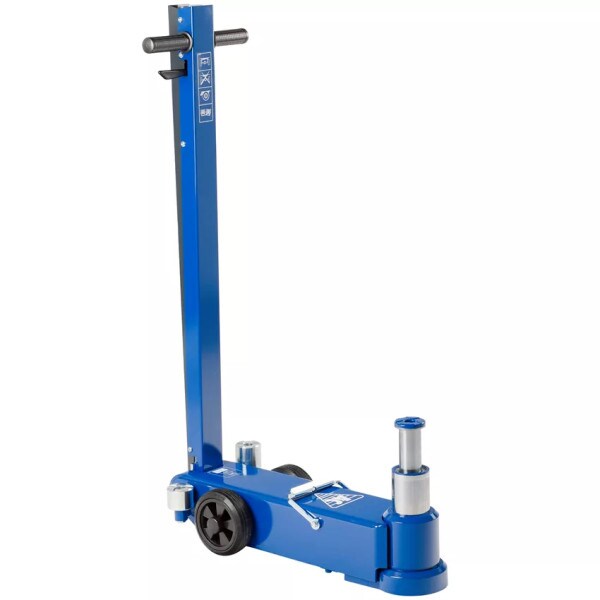

AC Hydraulic - Air Hydraulic Jack 10/25T 2 stage

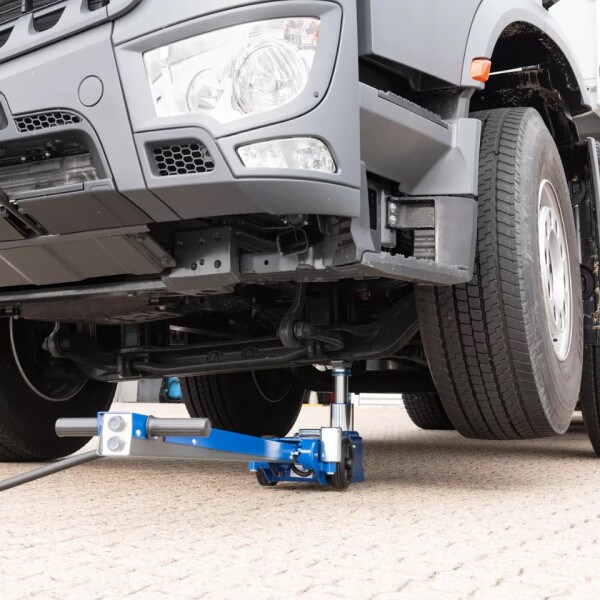

VERSATILE 2-STAGE AIR HYDRAULIC JACK WITH LOW MINIMUM HEIGHT, IDEAL FOR BUSES AND TRUCKS

• Minimum height of 180 mm
• Designed for heavy-duty, intensive commercial use
• Hard chromium plated rams for long life
• Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
• Ergonomic handle with push buttons
• Extend the maximum lifting height with an additional 50 or 100 mm extensions


Specifications:

• Capacity 25 t
• Capacity / Height steps;
  • 25 t / 275 mm
  • 10 t / 380 mm
• Min height 180 mm
• Max height 380 mm
• Frame length 770 mm
• Handle length 1160 mm
• Width 160 mm
• Width with wheels 305 mm
• Air supply 8 - 10 bar
• Air consumption 350 - l/min
• Weight 60 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
