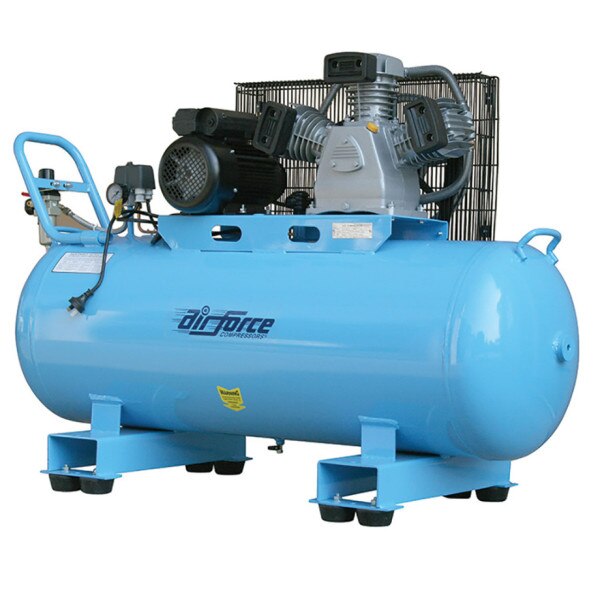

AirForce Fixed Industrial Piston Electric Compressor AF3200, 200L, 3Hp, 1ph, 15CFM

Industrial AF Series

Three-Stage Fixed Skid Base Industrial Piston Compressor, Electric Drive via Belt

• Pressure: 8 Bar / 116 PSI
• Cylinders: 3
• Nominal Motor Rating: 3 Hp / 2.2 kW
• Voltage: 230V / 1ph / 50hz (approx 11.5A load at 0.85 lag PF per phase)
• Air Displacement: 430 l/min / 15 CFM
• Tank: 200 litres
• Rotational Speed: 2,800 RPM
• Soft Starter
• Regulator & Pressure Gauge

Downloads

Specification Sheet
