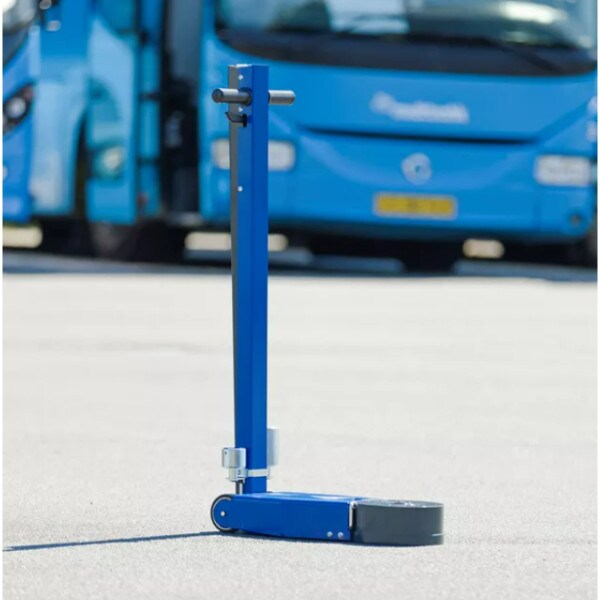

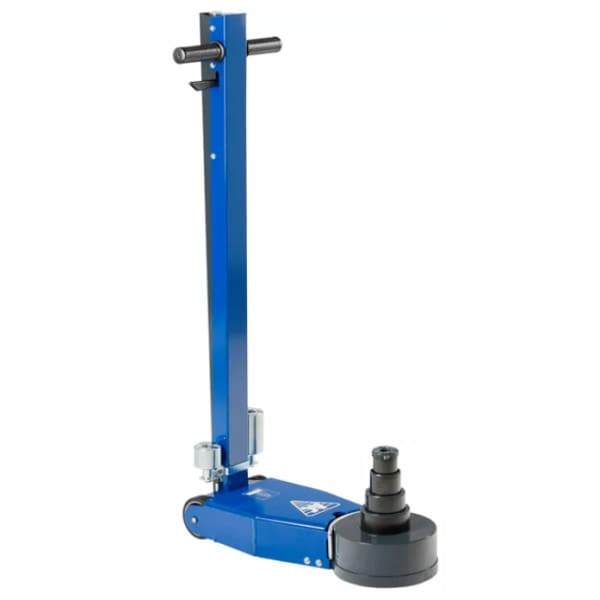

AC Hydraulic - Air Hydraulic Jack 40T 4 stage for Low Clearance Vehicles

EXTRA LOW 4-STAGE AIR HYDRAULIC JACK FOR VEHICLES WITH LOW CLEARANCE

• The lowest jack on the market with a minimum height of only 100 mm
• Telescopic cylinders ensure a fast and safe 4-stage lift
• Compact and short chassis for even the lowest vehicles
• Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
• Ergonomic handle with push buttons
• Extend the maximum lifting height with an additional 50 or 100 mm


Specifications:

• Capacity 40 t
• Capacity / Height steps
  • 40 t / 145 mm
  • 27 t / 180 mm
  • 16 t / 230 mm
  • 10 t / 275 mm
• Minimum height 100 mm
• Maximum height 275 mm
• Frame length 630 mm
• Handle length 1,160 mm
• Width 235 mm
• Width with wheels 255 mm
• Air supply 8 - 10 bar
• Air consumption 215 - l/min
• Weight 54 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
