Bendpak QuickJack 5000TL, 2,270 kg Portable Car Lift w/ 230VAC
Details
Quickjack Portable Car Lift
- 24" raised height
- 230VAC Single Phase power required
- Automatic safety Locks
- Single-handed operation
- Accessories galore to increase versatility
- Ideal for rallying road-side maintenance
What's included:

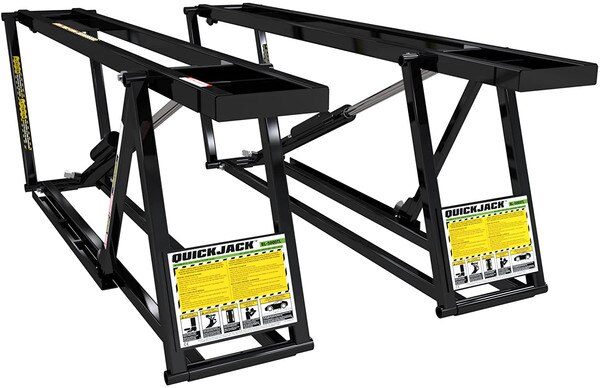

- Left Frame Assembly
- Right Frame Assembly

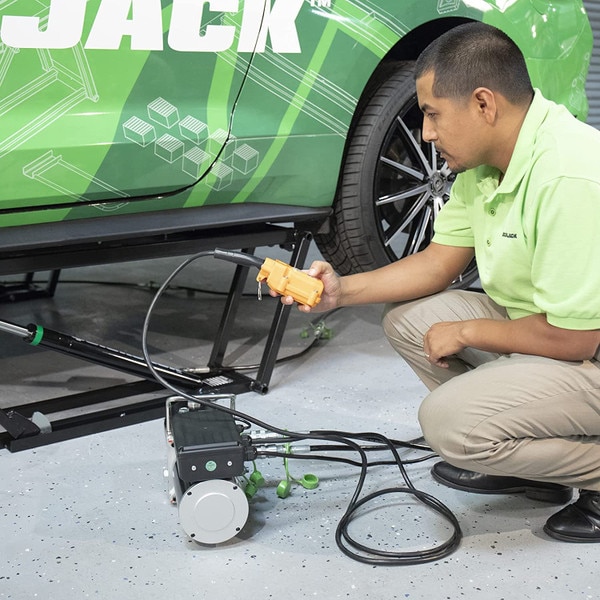

- 1x Hydraulic power unit with control

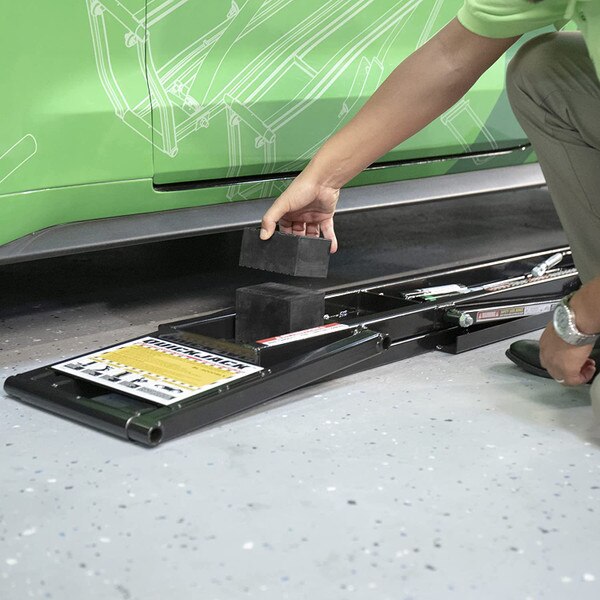

- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
All items are shipped in three separate boxes
Oil is NOT included
Requirements:
- Up to 3 liters of Automatic Transmission Fluid
- Air source to inflate air cylinders up to 50 PSI
- Assembly tools

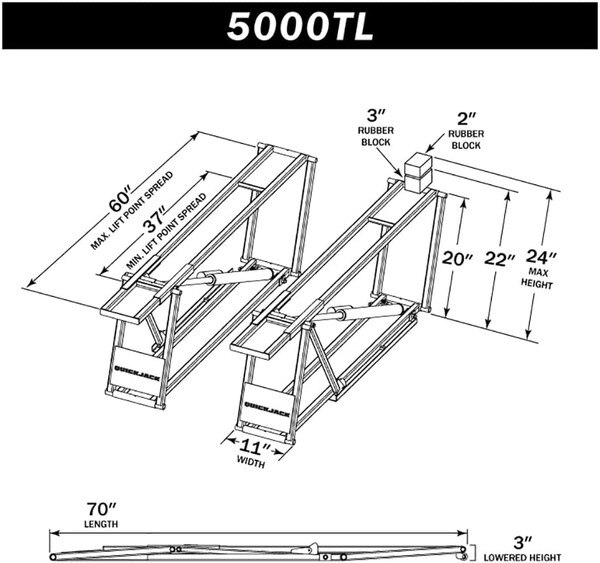

Specifications:
- Lifting capacity
- 5,000 lbs. (2,268 kg)
- Lowered height
- A - Frame only: 3" (76 mm)
- B - With 2" block: 3.5" (89 mm)
- Lifting height
- D - With 2" block: 21" (521 mm)
- E - With 3" block: 22" (546 mm)
- F - Max. height: 24" (616 mm)
- G - With adapters: 24" (597 mm)
- H - With adapters + pin: 26.75" (673 mm)
- Lift point spread
- I - Maximum: 60" (1,524 mm)
- J - Minimum: 37" (940 mm)
- Frame dimensions (ea.)
- K - Width: 11" (278 mm)
- L - Length: 70" (1,778 mm)
- A - Height (lowered): 3" (76 mm)
- Weight: 78 lbs. (35 kg)
- Other specs
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
- Shipping dimensions (ea. frame): 73.75" (L) x 15.25" (W) x 5" (H) (1,869 mm x 385 mm x 129 mm)
- Shipping weight: 240 lbs. (109 kg)
