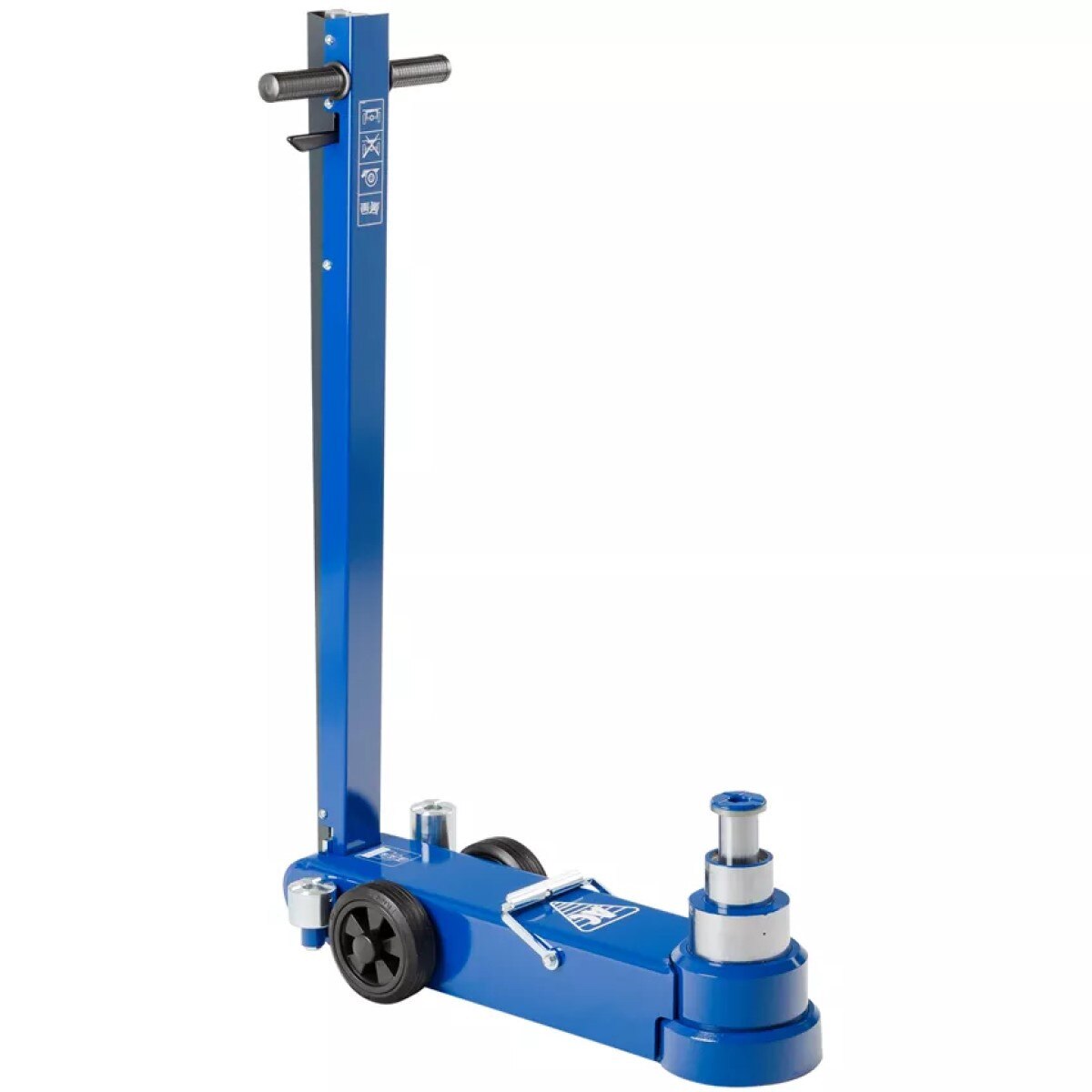

AC Hydraulic - Air Hydraulic Jack 10/25/50T 3 stage for Low Clearance Vehicles

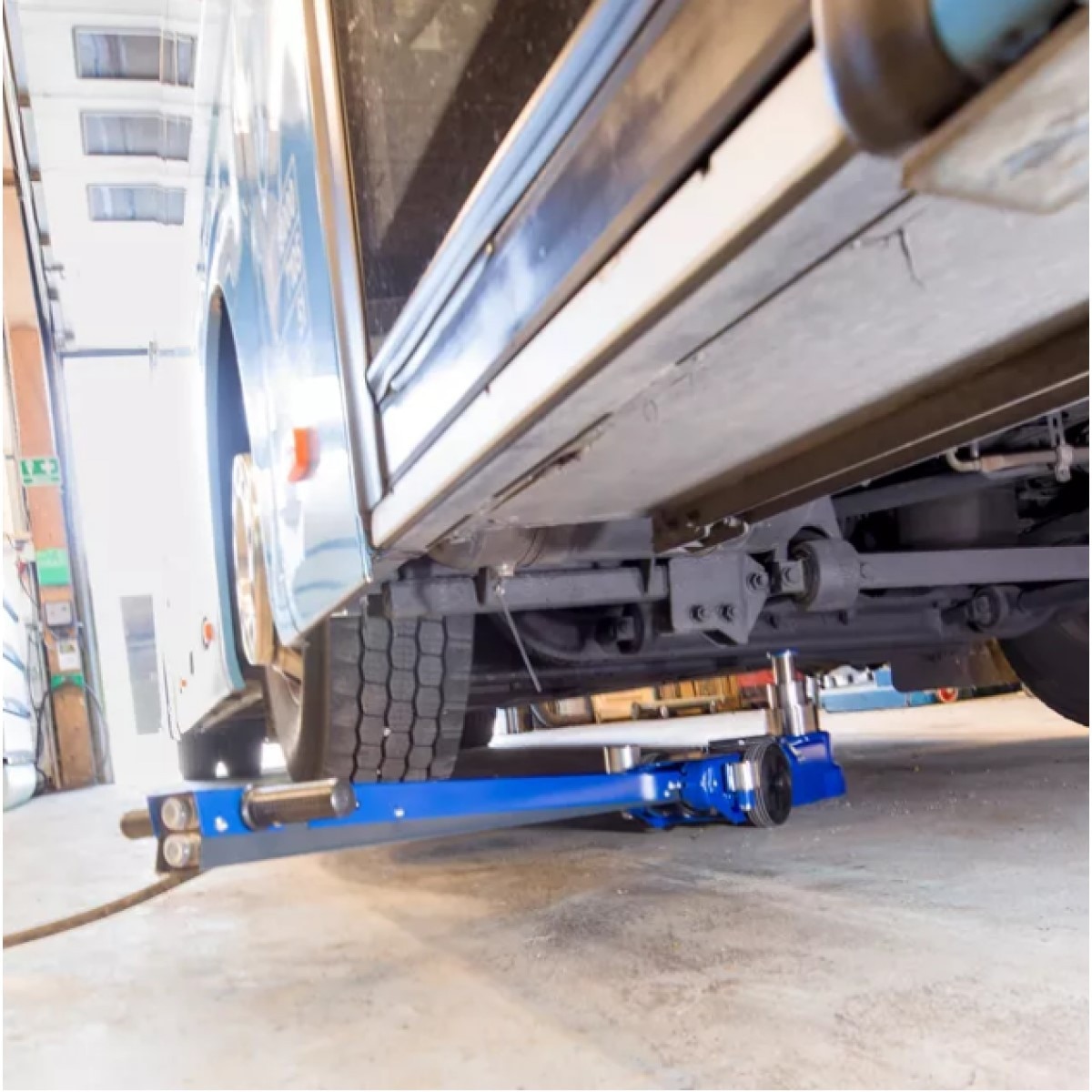

3-STAGE AIR HYDRAULIC JACK FOR LOW BUSES, TRUCKS AND OTHER LOW CLEARANCE VEHICLES

• Minimum height of only 150 mm combined with a high lifting capacity
• Telescopic cylinders ensure a high capacity combined with a low minimum height
• Designed for heavy-duty, intensive commercial use
• Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
• Ergonomic handle with push buttons
• Extend the maximum lifting height with an additional 50 or 100 mm with extensions


Specifications:

• Capacity 50 t
• Capacity / Height steps:
  • 50 t / 210 mm
  • 25 t / 265 mm
  • 10 t / 335 mm
• Min height 150 mm
• Max height 335 mm
• Frame length 810 mm
• Handle length 1160 mm
• Width 200 mm
• Width with wheels 310 mm
• Air supply 8 - 10 bar
• Air consumption 350 - l/min
• Weight 67 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
