Bendpak QuickJack 7000TL, 3,180kg Portable Car Lift 230Vac

Quickjack Portable Car Lift

• 24.25" raised height
• 230VAC Single Phase power required
• Automatic safety Locks
• Single-handed operation
• Accessories galore to increase versatility
• Ideal for rallying road-side maintenance

What's included:

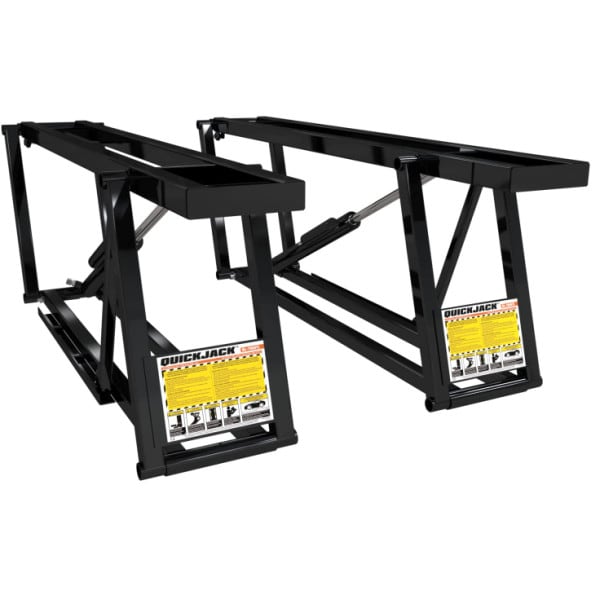

• Left Frame Assembly
• Right Frame Assembly

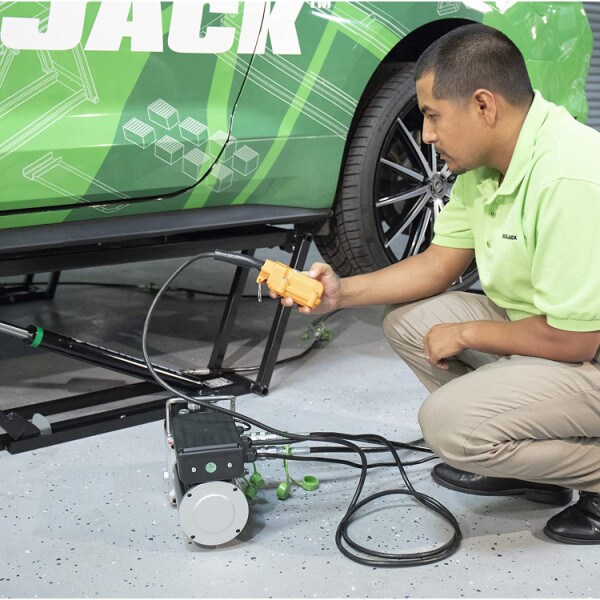

• 1x Hydraulic power unit with control
• 4x Medium rubber lift blocks (2")
• 4x Tall rubber lift blocks (3")
• 2x Short hydraulic hoses
• 2x Long hydraulic hoses
• 2x Frame-positioning handles
• Fittings and thread tape for setup
• Instruction manual

All items are shipped in three separate boxes

Oil is NOT included

Requirements:

• Up to 3 liters of Automatic Transmission Fluid
• Air source to inflate air cylinders up to 50 PSI
• Assembly tools

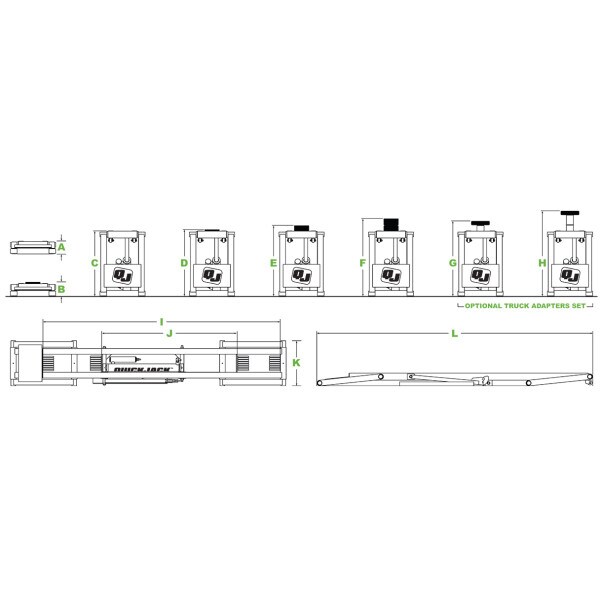

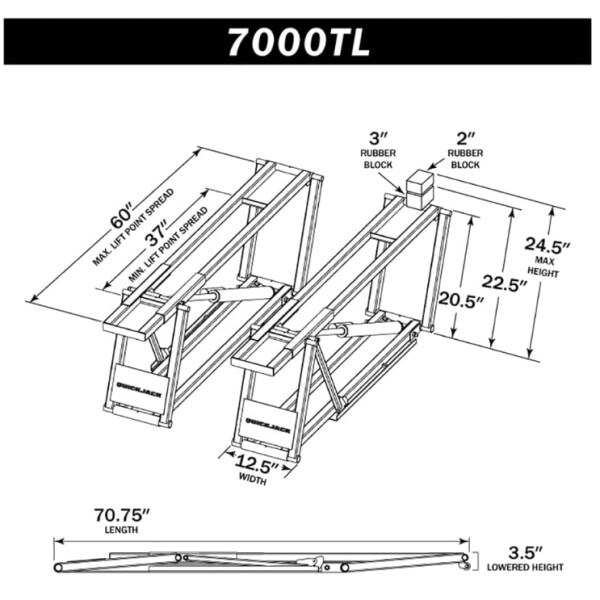

Specifications:

• Lifting capacity
  • 7,000 lbs. (3,180 kg)
• Lowered height
  • A - Frame only: 3.5" (89 mm)
  • B - With 2" block: 4" (102 mm)
• Lifting height
  • D - With 2" block: 21.5" (546 mm)
  • E - With 3" block: 22.5" (572 mm)
  • F - Max. height: 24.5" (622 mm)
  • G - With adapters: 24.25" (610 mm)
  • H - With adapters + pin: 27" (686 mm)
• Lift point spread
  • I - Maximum: 60" (1,524 mm)
  • J - Minimum: 37" (940 mm)
• Frame dimensions (ea.)
  • K - Width: 12.5" (318 mm)
  • L - Length: 70.75" (1,797 mm)
  • A - Height (lowered): 3.5" (89 mm)
  • Weight: 98 lbs. (45 kg)
• Other specs
  • Time to full rise: 30 seconds
  • Power unit weight: 15 lbs. (7 kg)
  • Shipping dimensions (ea. frame): 73.75" (L) x 16.75" (W) x 6.25" (H) (1,872 mm x 425 mm x 155 mm)
  • Shipping weight: 280 lbs. (127 kg)

Downloads

Operating Manual

Compare all Quickjack models
