Bendpak QuickJack (Long Model) 1,590Kg Capacity, 230VAC
Details

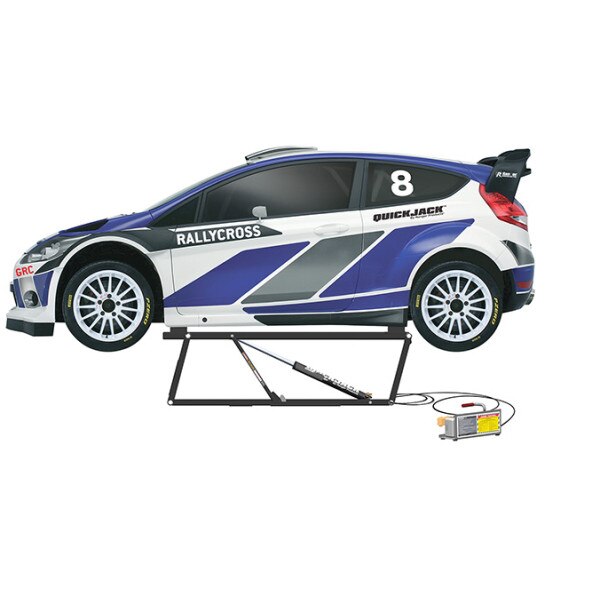

Quickjack Portable Car Lift
- 230VAC Single Phase power supply with a 12VDC Battery supply as optional extra for better portability
- Automatic safety Locks
- Single-handed operation
- Accessories galore to increase versatility
- Ideal for rallying road-side maintenance
What's included:

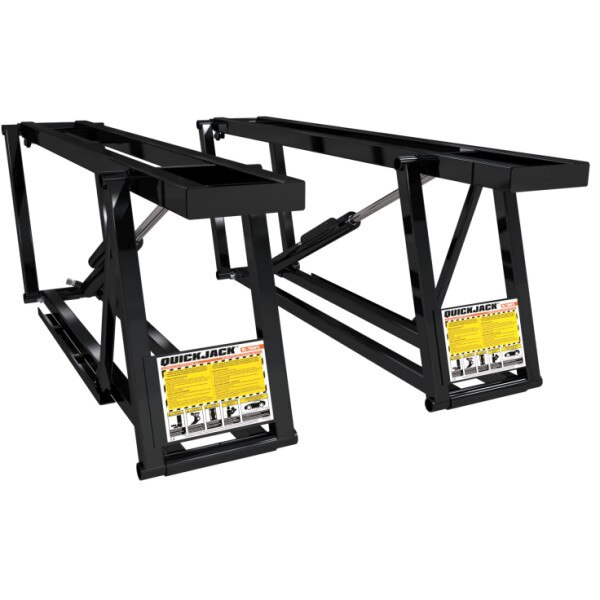

- Left Frame Assembly
- Right Frame Assembly

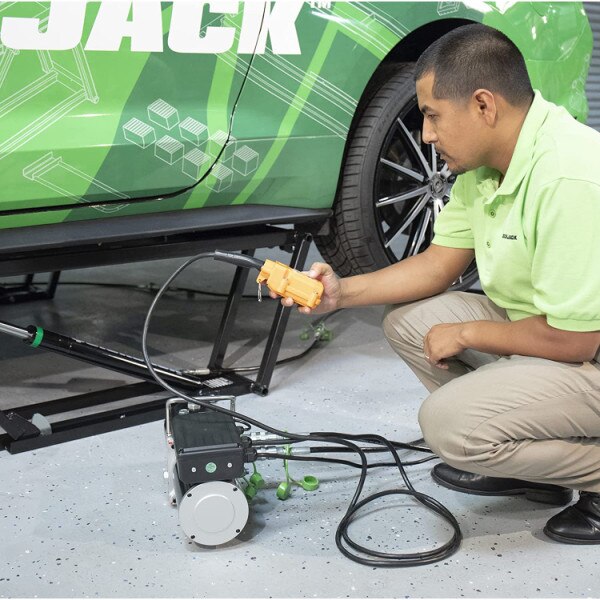

- 1x 230VAC Hydraulic power unit with control

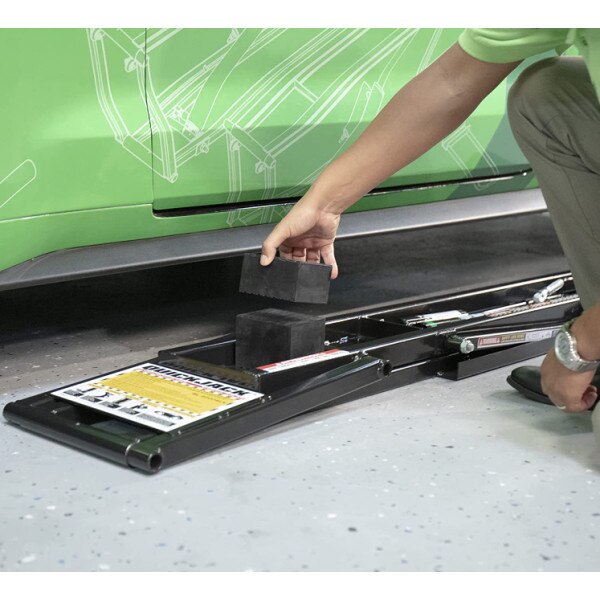

- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses

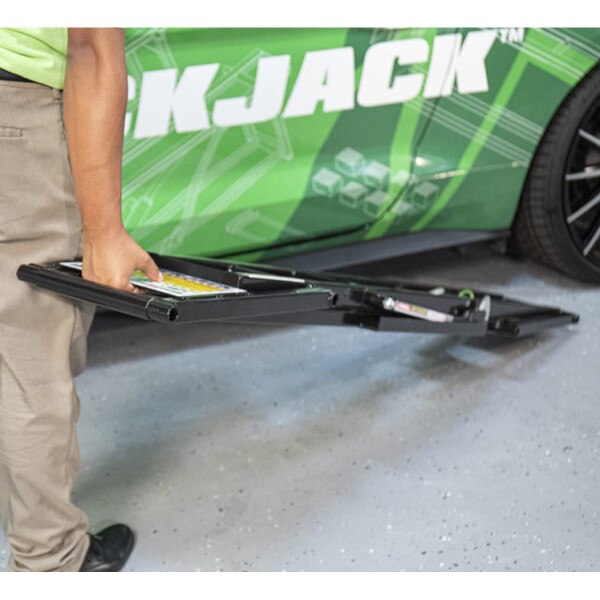

- 2x Frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
All items are shipped in three separate boxes
Oil is NOT included
Requirements:
- Up to 3 liters of Automatic Transmission Fluid
- Air source to inflate air cylinders up to 50 PSI
- Assembly tools
Specifications:
- Lifting capacity
- 3,500 lbs. (1,590 kg)

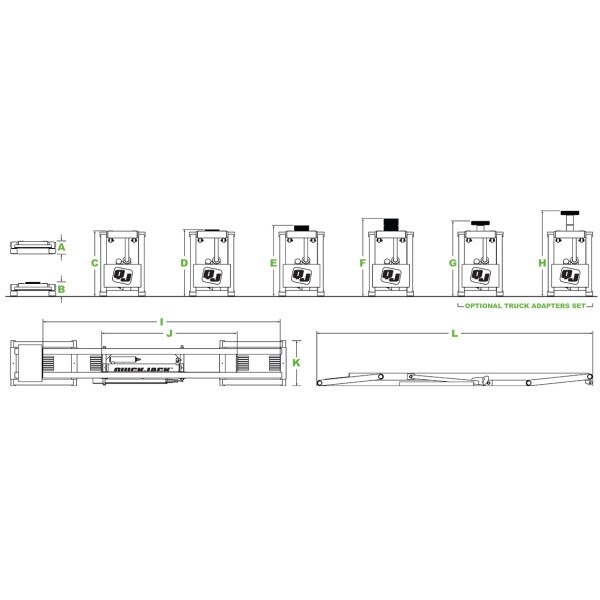

- Lowered height
- A - Frame only: 3" (76 mm)
- B - With 2" block: 3.5" (89 mm)
- Lifting height
- D - With 2" block: 17" (432 mm)
- E - With 3" block: 18.5" (470 mm)
- F - Max. height: 20" (508 mm)
- G - With adapters: Not compatible
- H - With adapters + pin: Not compatible
- Lift point spread
- I - Maximum: 50.5" (1,283 mm)
- J - Minimum: 26.7" (678 mm)
- Frame dimensions (ea.)
- K - Width: 10.6" (268 mm)
- L - Length: 62" (1,575 mm)
- A - Height (lowered): 3" (76 mm)
- Weight: 60 lbs. (27 kg)
- Other specs
- Power unit weight: 35 lbs. (16 kg)
- Noise: <45 dBA
- Shipping weight: 180 lbs. (82 kg)
