BM20200 Mobile Roller Brake Tester - BM - #CD111015

Mobile brake tester with 13 tonne axle load. One man operation. Measuring system is based on latest microprocessor technology. Automatic data collection and calculation of all test results. Long lifetime is ensured by hot galvanised roller field with gas spring controlled middle roller and soft start of motors. Transportable and on ground installation. Can be equipped to meet exactly your demands and requirements.

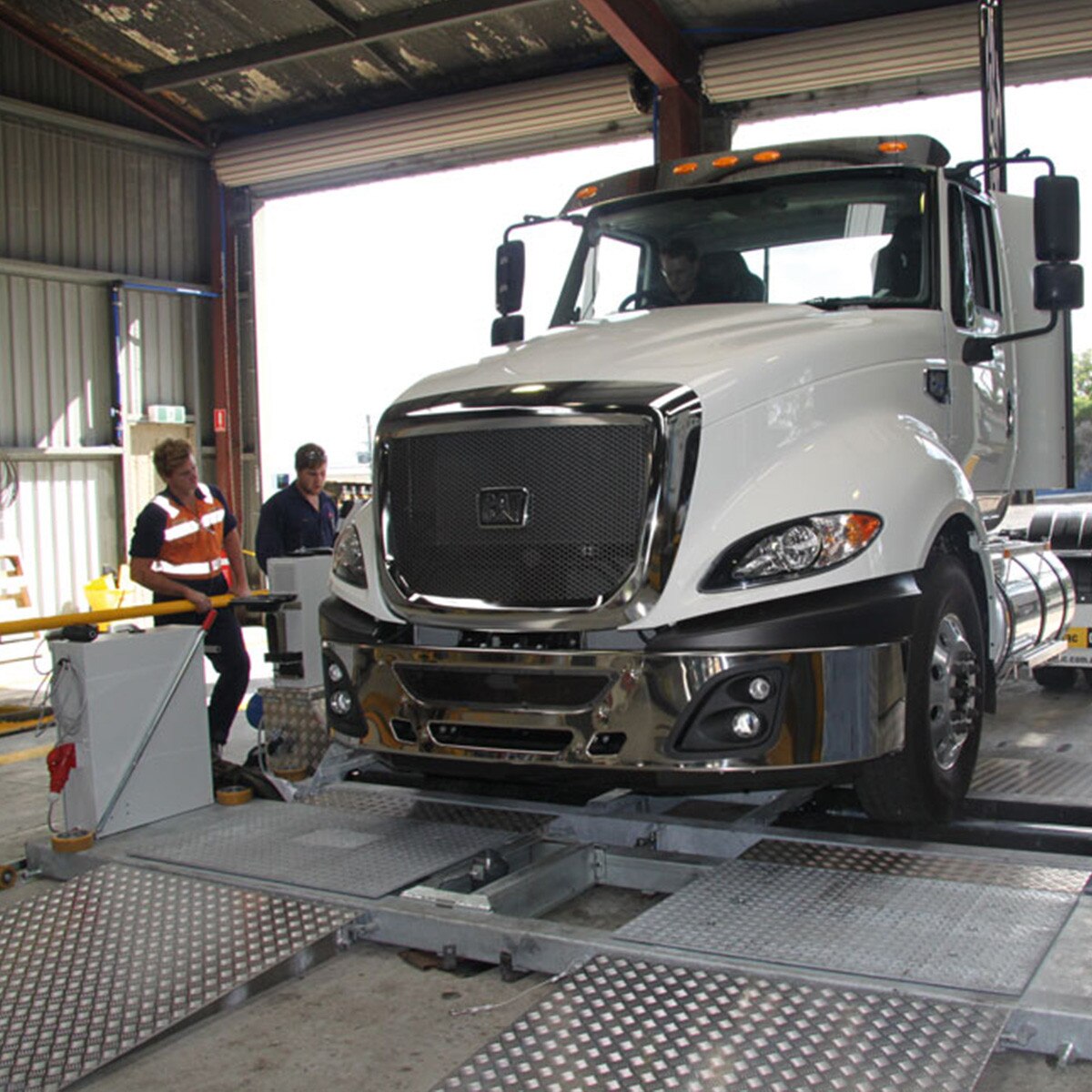

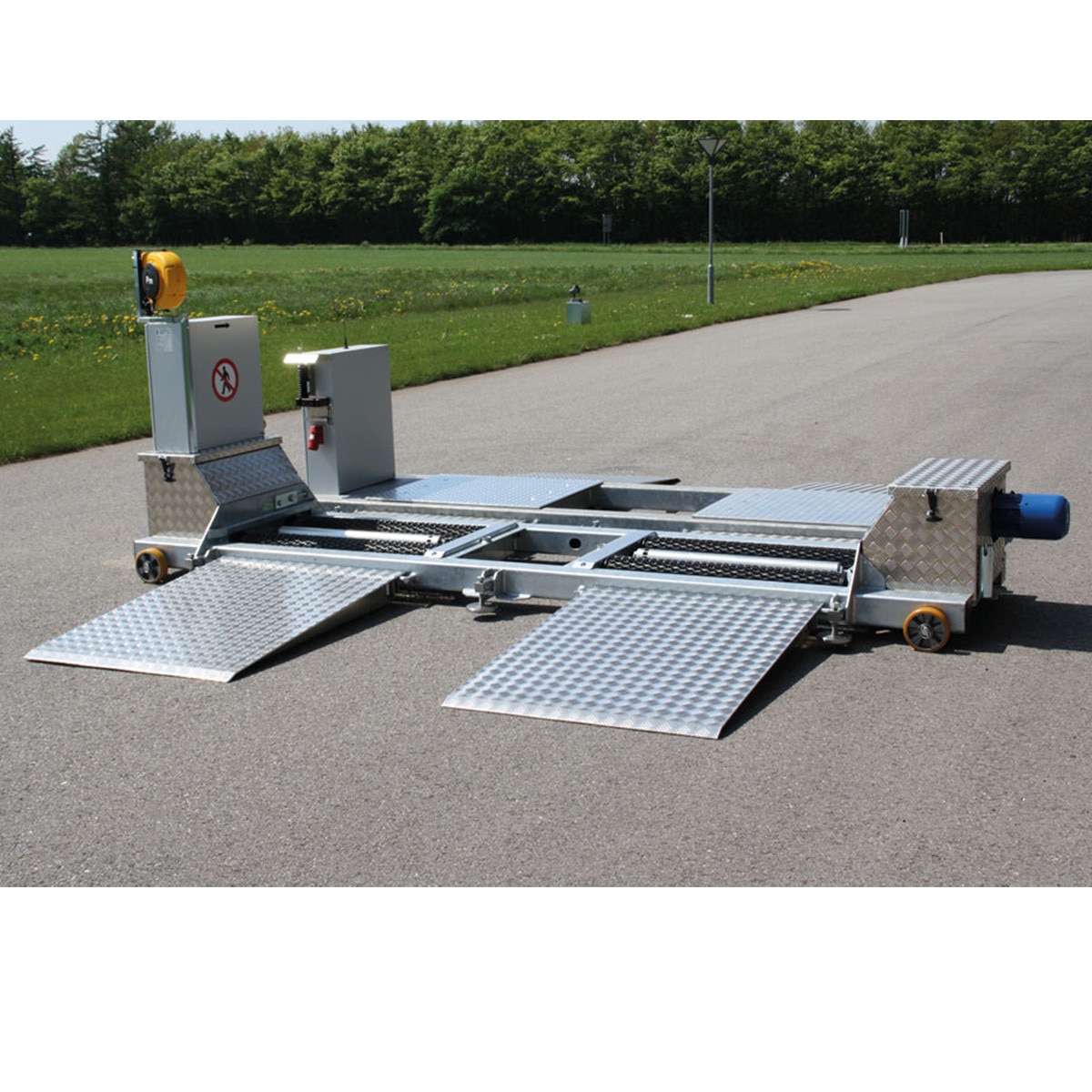

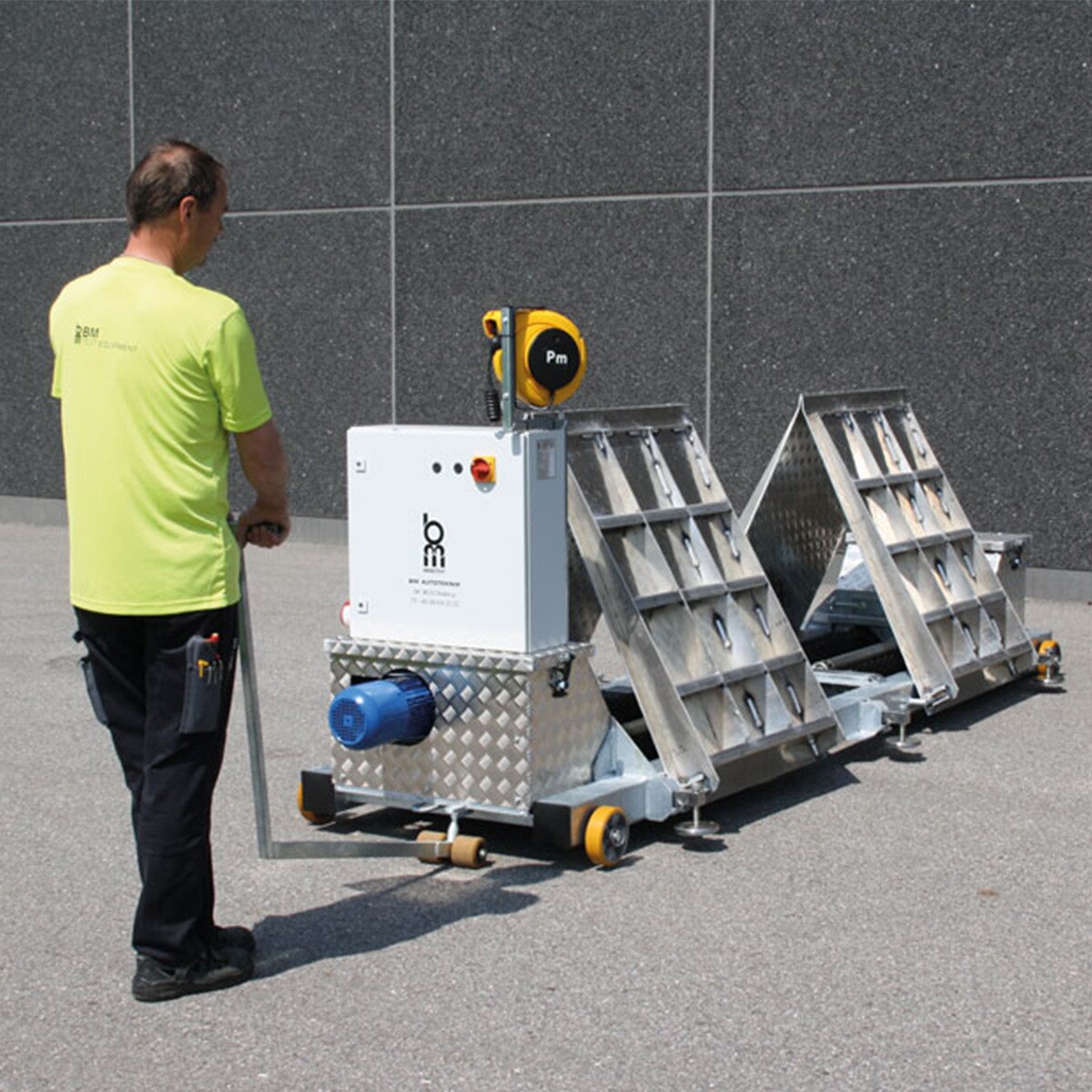

The BM20200 roller brake tester is designed for direct on-ground installation without need of civil work. It requires only approximately 10 minutes for one person to set it up for operation.

This brake tester features a large range of options that allows for a customised configuration.

OPTIONS

Robust and long lasting:
- All steel is of highest quality and hot galvanized.

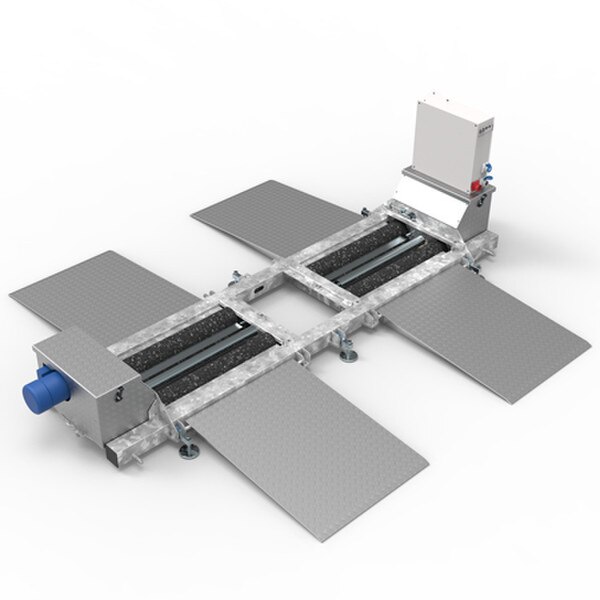

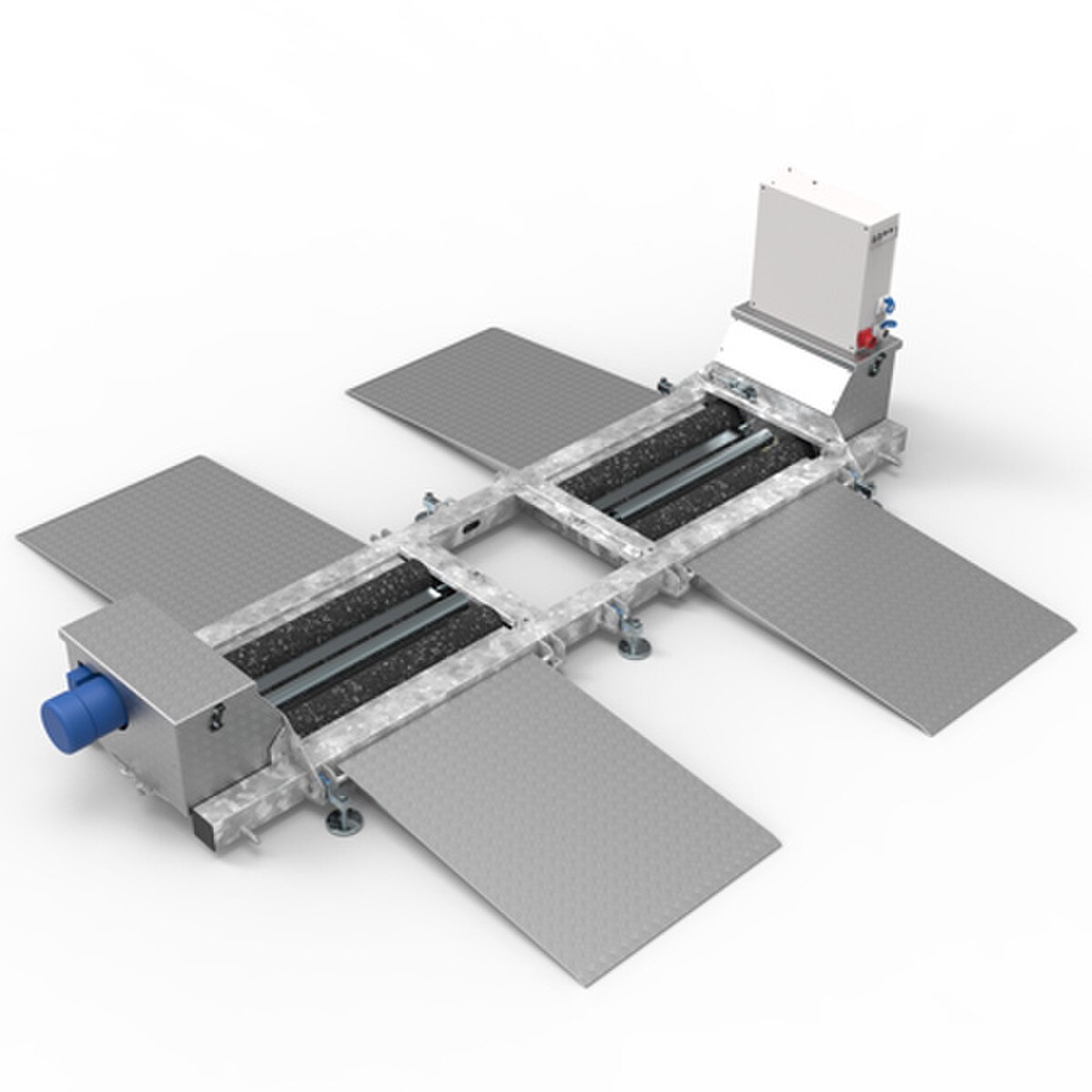

- Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
- The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
- Can be supplied in a minimum configuration and still allows for later upgrade to all options.
Easy to use with BM software:
- Integrated guide.
- Advanced graphics printout.
- Diagnostic printout with or without connection to PC/Notebook.
- Calculation of test results according to the requirements of many national authorities.
- BM FlexCheck software:
  Advanced data collection, storing and presentation of test results.
  Data capture from a complete inspection lane.
  PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
Infrared remote control with an operating distance of 15-25 metres..
Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
- Integrated guide.
- Large analogue dials showing readings of left and right brake forces.
- 65 mm high bright digital readouts of other measurement results.
- Modularly designed so that it can be customized to existing and future demands.
- Display units are available in daN, kgf or kN.
Up to 3 displays can be connected.
Optional automatic axle weighing and vehicle total weight.

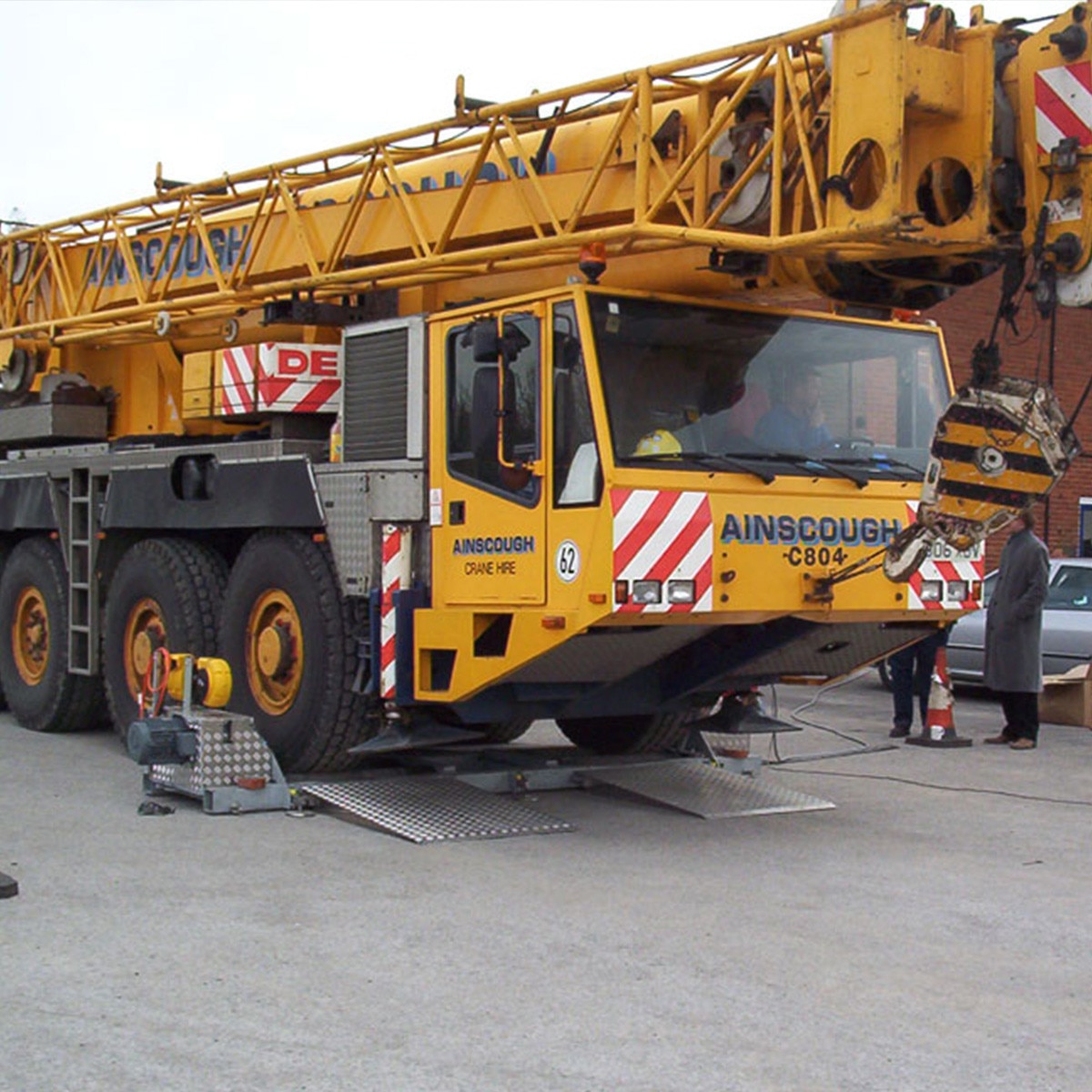

Test of 4×4, 6×4 and 8×6 driven vehicles.
Optional cable or radio pedal force meter.
Optional cable or radio air/hydraulic pressure system.

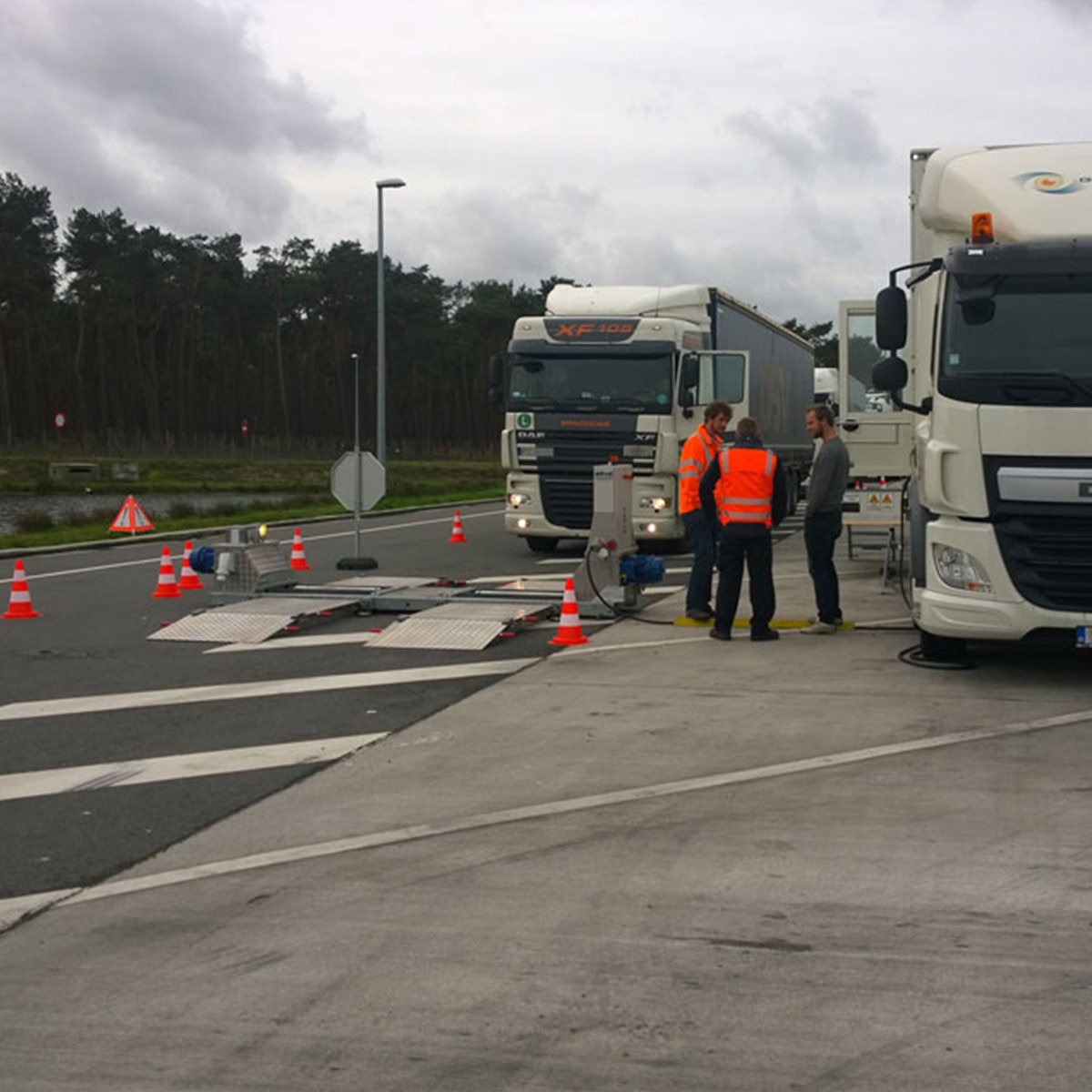

Posibility to create a mobile test lane concept consisting of:
- BM53000 mobile wheel play detector
- BM605 tacho tester
Optional axle load simulation.

Optional transport solutions:
- Trailer solution.
- Inside 20′ container

The BM20200 roller brake tester is approved by several international authorities and can optionally be supplied in compliance with ISO 21069.
