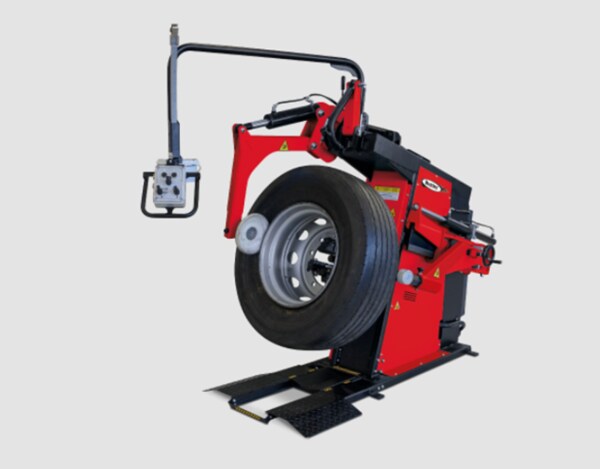

BUTLER NAV101 NAVIGATOR - SUPER FAST TRUCK OR BUS TYRE CHANGER
Details
Superfast commercial Tyre Changer from Butler can dismount and mount a tyre in only 30 seconds and that makes it the fastest truck / bus Tyre Changer in the world today.
No wonder it is New Zealand's most popular Tyre Changer for Fleet Operators. Thanks to its unique design and equipped with 4 rollers the process of dismounting and mounting tyres could not be simpler.

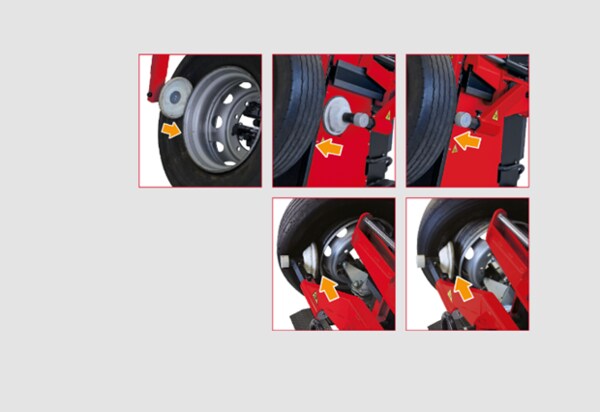

Each bead breaker is supported by two arms separately controlled. Each arm has two rollers, one conical which pushes on the bead and one cylindrical which pushes the side of the tyre. All up, this is an outstanding machine and does exactly as designed.
Features
- Quick loading
- Quick setup
- Adjustable arm position
- 30 second mounting and dismounting
- Chucking unit moves clockwise and counter clockwise as well as up and down
- 4 roller system
- Bead breakers supported by two arms
- Each arm has two rollers.
Warranty
Full Parts and Labour Warranty anywhere in New Zealand
Delivery, Installation and Training are optional extra's, contact your sales representative in your region by calling 0800 4 EQUIP or email equipmentnz@gpcasiapac.com for more details
| Specifications | Data |
| Chucking Unit Rotation Motor | 2 kW |
| Hydraulic Drive Unit Motor | 1.5 kW |
| Max. Wheel Diameter | 52" |
| Max. Allowed Wheel Width | 21.2" |
| Machine Weight | 650 kg |
| Bead Breaker Power | 18,000 N |
| Max Wheel Weight | 1,200 kg |
| Chuck Rotation Speed | 8 rpm |
| Max Torque to Chuck | 2,600 Nm |
Downloads
Specification Sheet
Accessory Sheet
