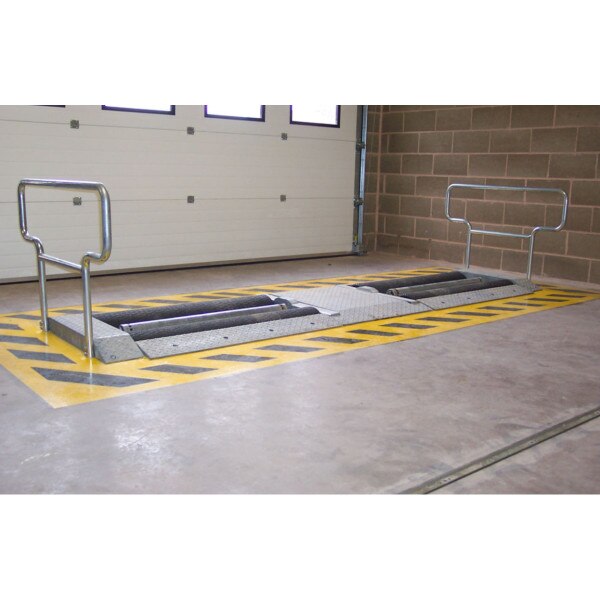

BM 14200 Brake Tester, In Ground, 20,000 kg Capacity (Truck/Bus)

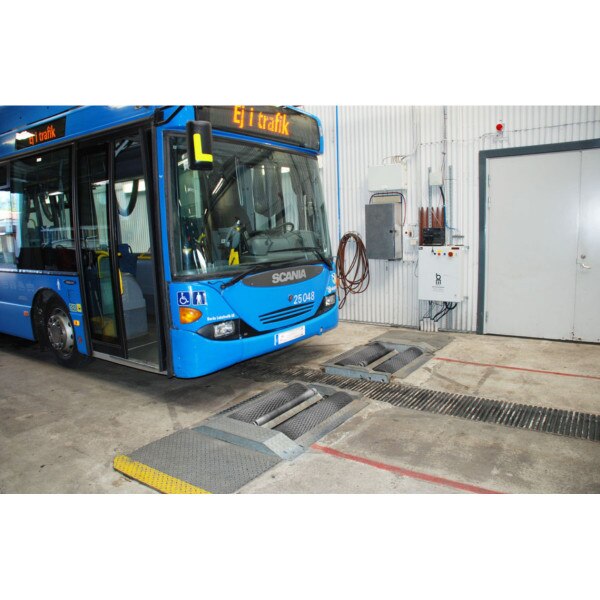

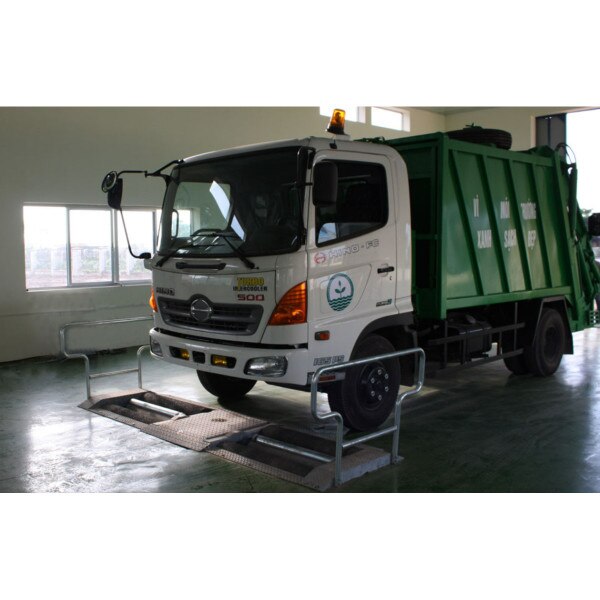

In-ground brake tester for testing light and heavy vehicles with axle load up to 20,000 kg

The BM 14200 roller brake tester has one of the strongest designs in the market and is built to withstand a high daily throughput of fully laden heavy vehicles.

This brake tester features a large range of options that allows for a customised configuration.

Meets NZTA approval for COFB testing in NZ.

Options:

• Robust and long lasting:
  • All steel is of highest quality and hot galvanized

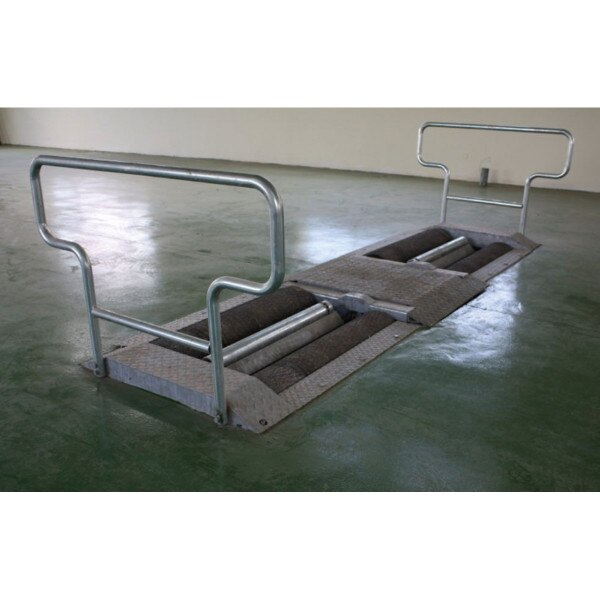

  • Consists of an integral motorised gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame
  • The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements

• All gaps are minimized to protect staff
• Cover plate design around the roller area all have angles to minimize potential tyre damage
• Can be supplied in a minimum configuration and still allows for later upgrade to all options
• Easy to use with BM software:
  • Integrated guide
  • Advanced graphics printout
  • Diagnostic printout with or without connection to PC/Laptop
  • Calculation of test results according to the requirements of NZTA

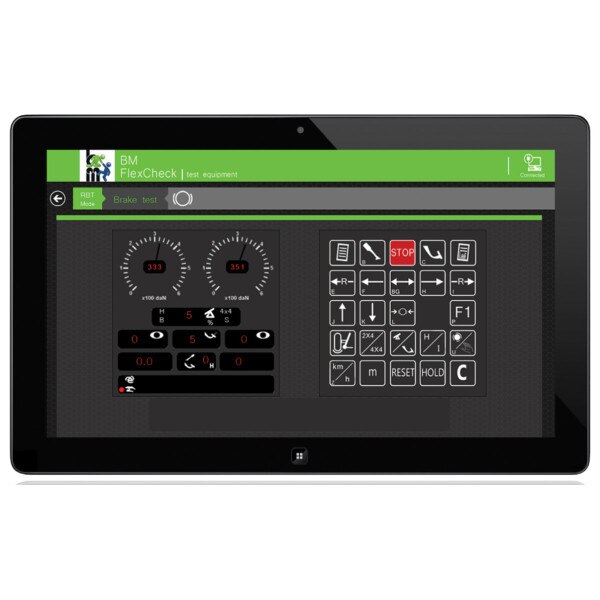

• BM FlexCheck software:
  • Advanced data collection, storing and presentation of test results

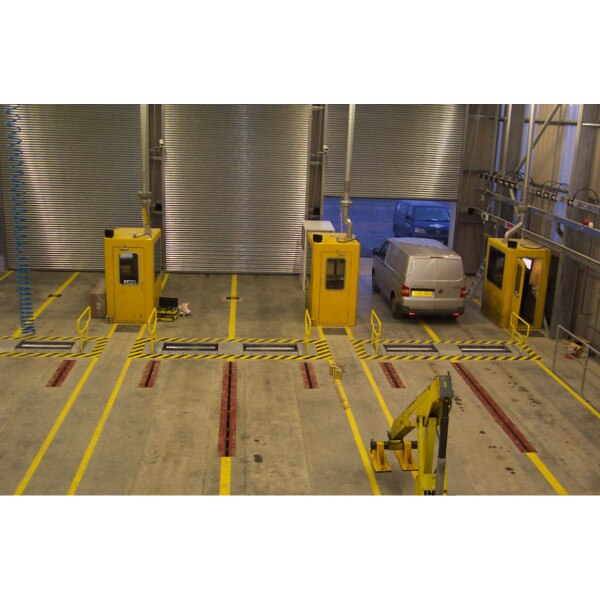

  • Data capture from a complete inspection lane

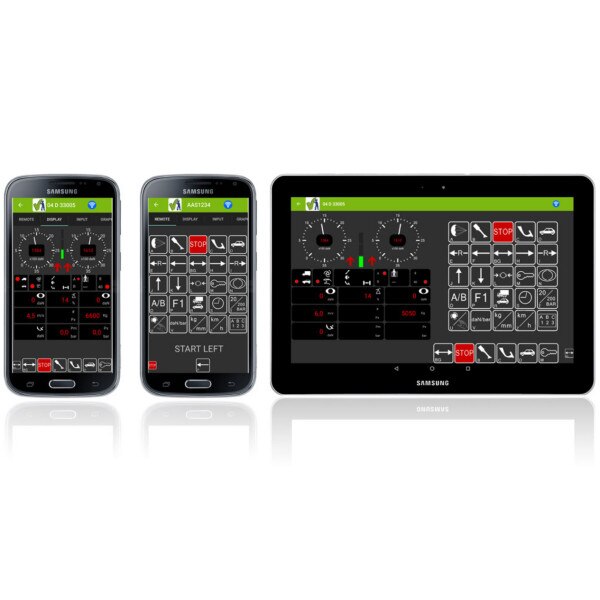

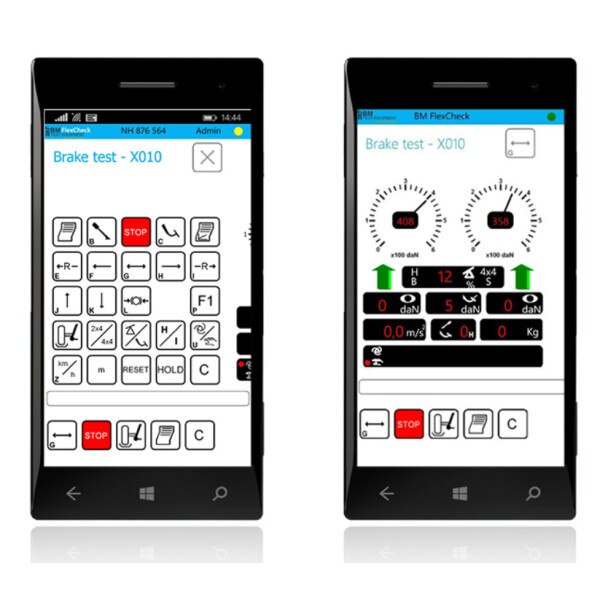

  • PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit

• Infrared remote control with an operating distance of 15-25 metres

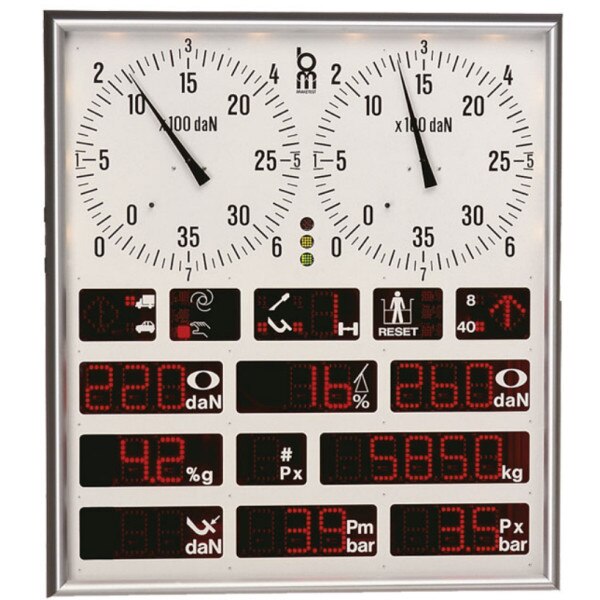

• Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data
• Integrated guiding system
• Two large analogue dials showing readings of left and right brake forces
• 65 mm high bright digital readout of other measurement results
• Modularly designed so that it can be customized to existing and future demands
• Display units are available in daN, kgf or kN

• Up to 3 displays can be connected
• Optional cable or radio air/hydraulic pressure system
• Optional automatic axle weighing
• Test of 4×4, 6×4 and 8×6 driven vehicles
• Optional cable or radio pedal force meter
• Heating package for outdoor installation
• Optional axle load simulation
• Optional chassis load simulation

• The BM14200 roller brake tester is approved by NZTA for COFB testing use in New Zealand


Specifications:

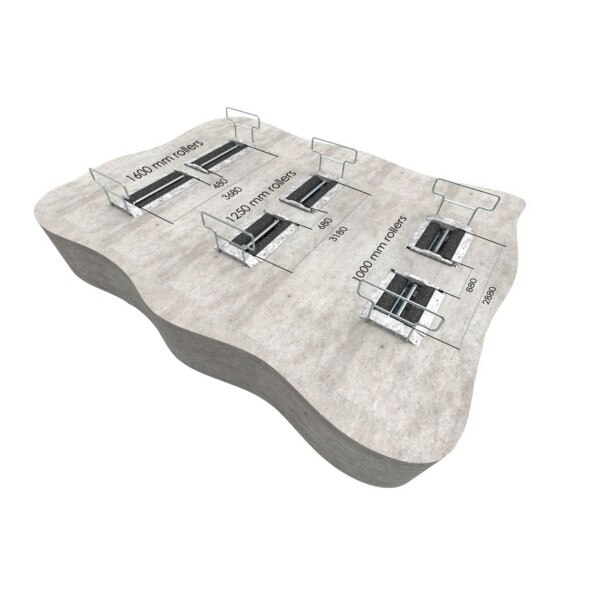

• ROLLER BED PER SIDE (1000 MM ROLLERS) LXWXH 910 x 1,285 x 622 mm
• ROLLER BED PER SIDE (1250 MM ROLLERS) LXWXH 910 x 1,535 x 622 mm
• ROLLER BED PER SIDE (1600 MM ROLLERS) LXWXH 910 x 1,885 x 622 mm
• SUBFRAME FOR SPLIT BED INSTALLATION PER SIDE (1000 MM ROLLERS) LXWXH 990 x 1,355 x 300 mm
• SUBFRAME FOR SPLIT BED INSTALLATION PER SIDE (1250 MM ROLLERS) LXWXH 990 x 1,605 x 300 mm
• SUBFRAME FOR SPLIT BED INSTALLATION PER SIDE (1600 MM ROLLERS) LXWXH 990 x 1,955 x 300 mm
• ROLLER DIAMETER 260 mm
• ROLLER LENGTH 1,000 mm / 1,250 mm / 1,600 mm
• HEIGHT OF MIDDLE COVER PLATE OVER FLOOR LEVEL 75 mm
• ROLLER HEIGHT OVER FLOOR LEVEL FRONT/REAR 35 / 75 mm
• FRICTION COEFFICIENT OF ROLLER FROM FACTORY DRY/WET Min. 0.8 / 0.7
• WHEEL SPAN 890 to 2,890 / 3,390 / 4,090 mm
• DISTANCE BETWEEN ROLLER CENTRES 493 mm
• MAXIMUM TEST AXLE WEIGHT 16,000 kg / 20,000 kg
• GEAR MOTOR SIZE 11 kW / 15 kW
• MAX. BRAKE FORCE MEASUREMENT 3,600 daN / 5,500 daN
• TEST SPEED 2.7 km/h
• DISPLAY (LXWXH) 930 x 820 x 100 mm
• CONTROL BOX (LXWXH) 760 x 600 x 210 mm
• DISPLAY BRAKE FORCE SCALE 0 – 800 daN / 0 – 4,000 daN
• BRAKE FORCE MEASURING ACCURACY 0 – 100 daN: +/-2 daN // > 100 daN: +/-2% FS
• PEDAL FORCE MEASURING ACCURACY 0 – 100 daN: +/-1 daN
• OPERATING TEMPERATURE -15°C to +50°C
• POWER AND FUSES 3 x 400 Vac + N + PE, Min. 50/80 Amp

Advantages

• IT system using latest app technology for smartphone and tablet (Windows and Android)
• The most comprehensive load simulation system program
• The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals, it can also be mounted on a trolley making it easy to move around

• Large chain wheels reduces required maintenance of chains and increases the life of gears, motors and other components

Installation

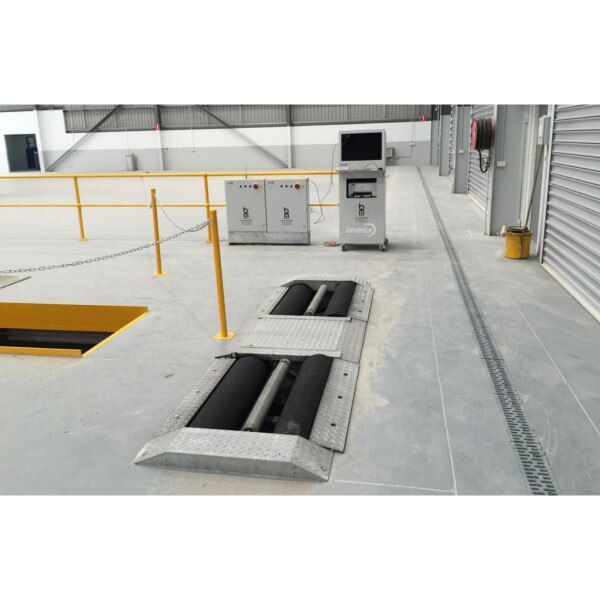

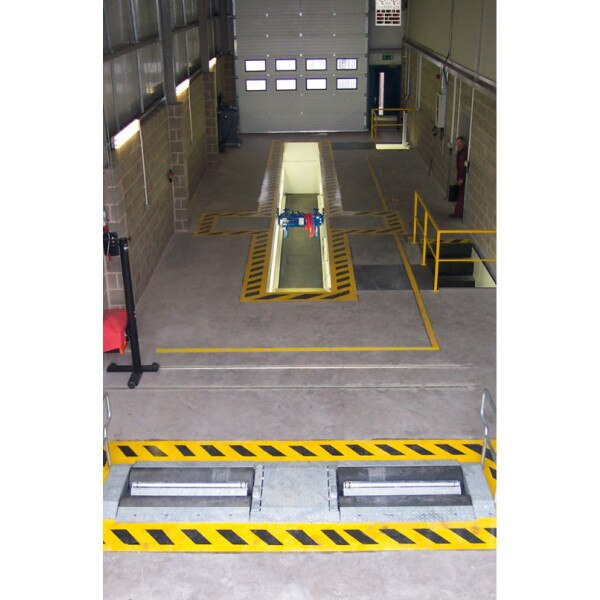

• Hot galvanized subframes can be concreted into the ground before the actual brake tester is installed
• The subframes ensures easier planning and implementation of installation as well as correct alignment of the brake tester during concreting

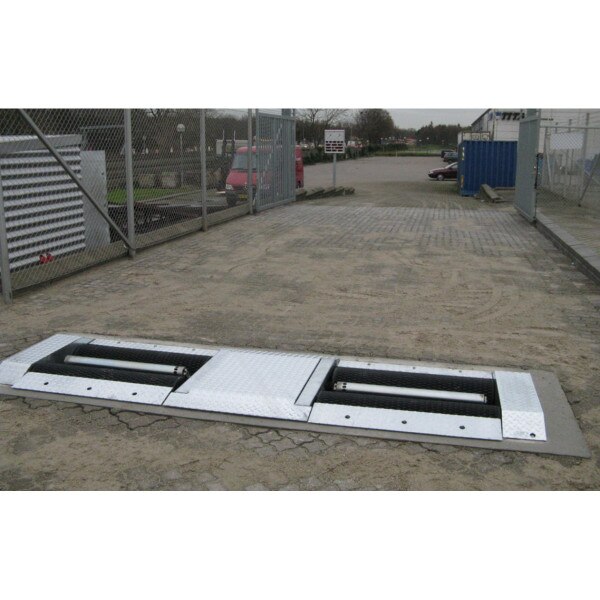

• Can be installed both indoor and outdoor in most environments from -30ºC to 60°C and humidity up to 95%

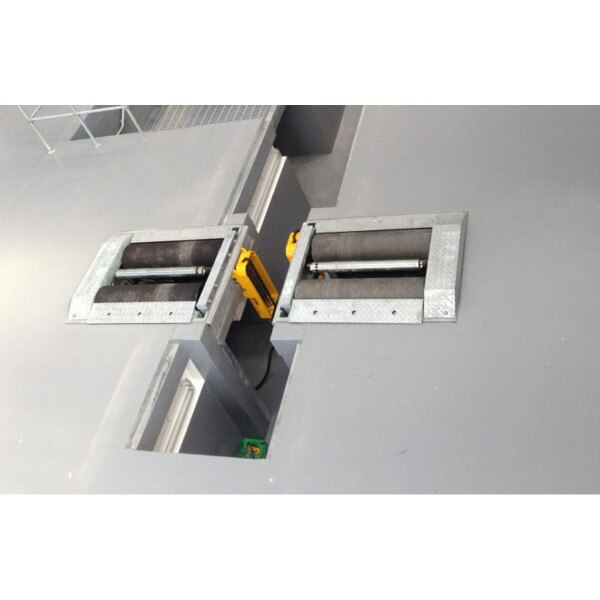

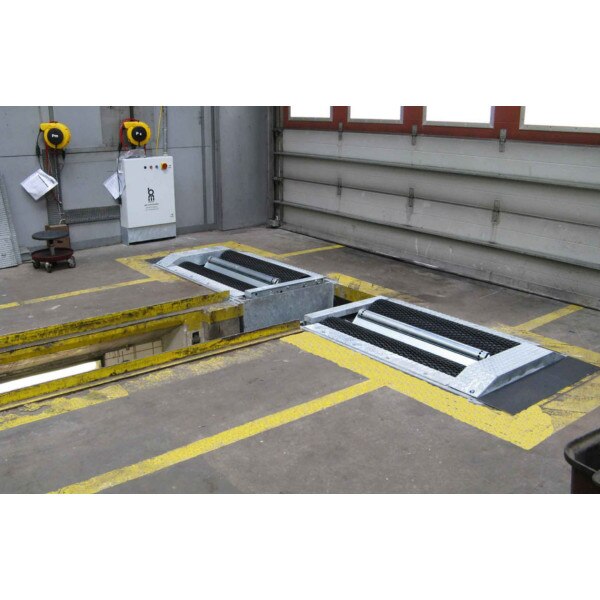

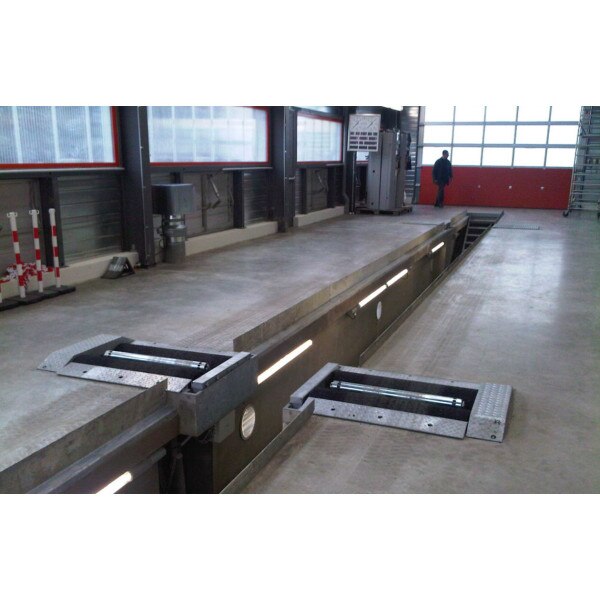

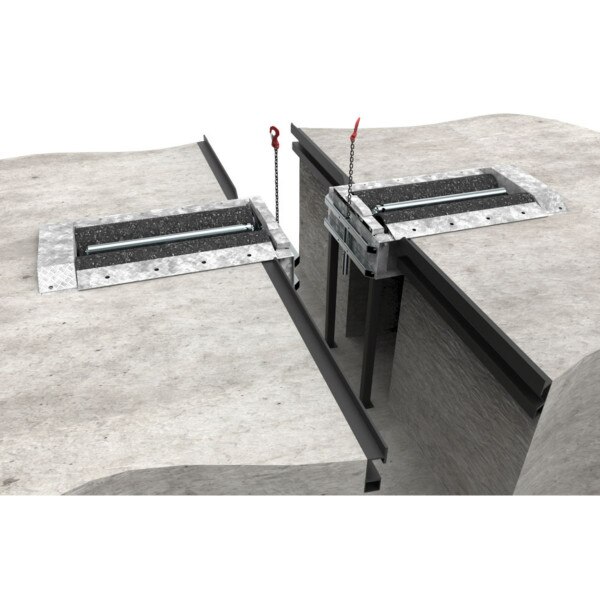

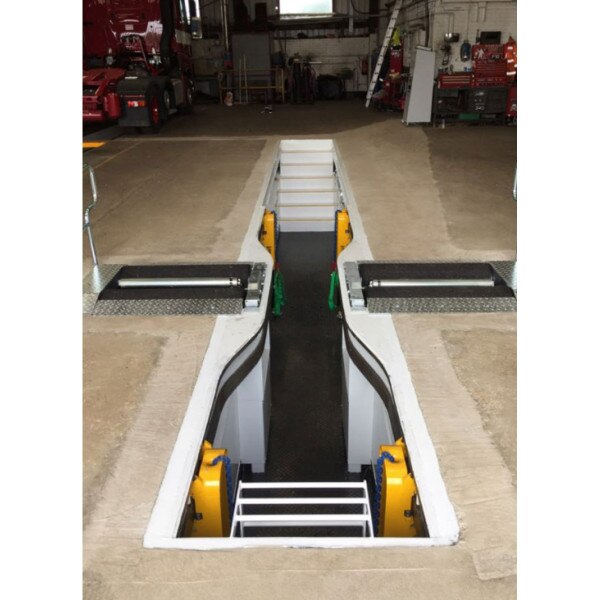

• Optional split bed installation over an inspection pit

• We can install this Brake Roller anywhere in New Zealand
• Civil works requirements to fit the Brake Roller can be undertaken by Sulco on request
