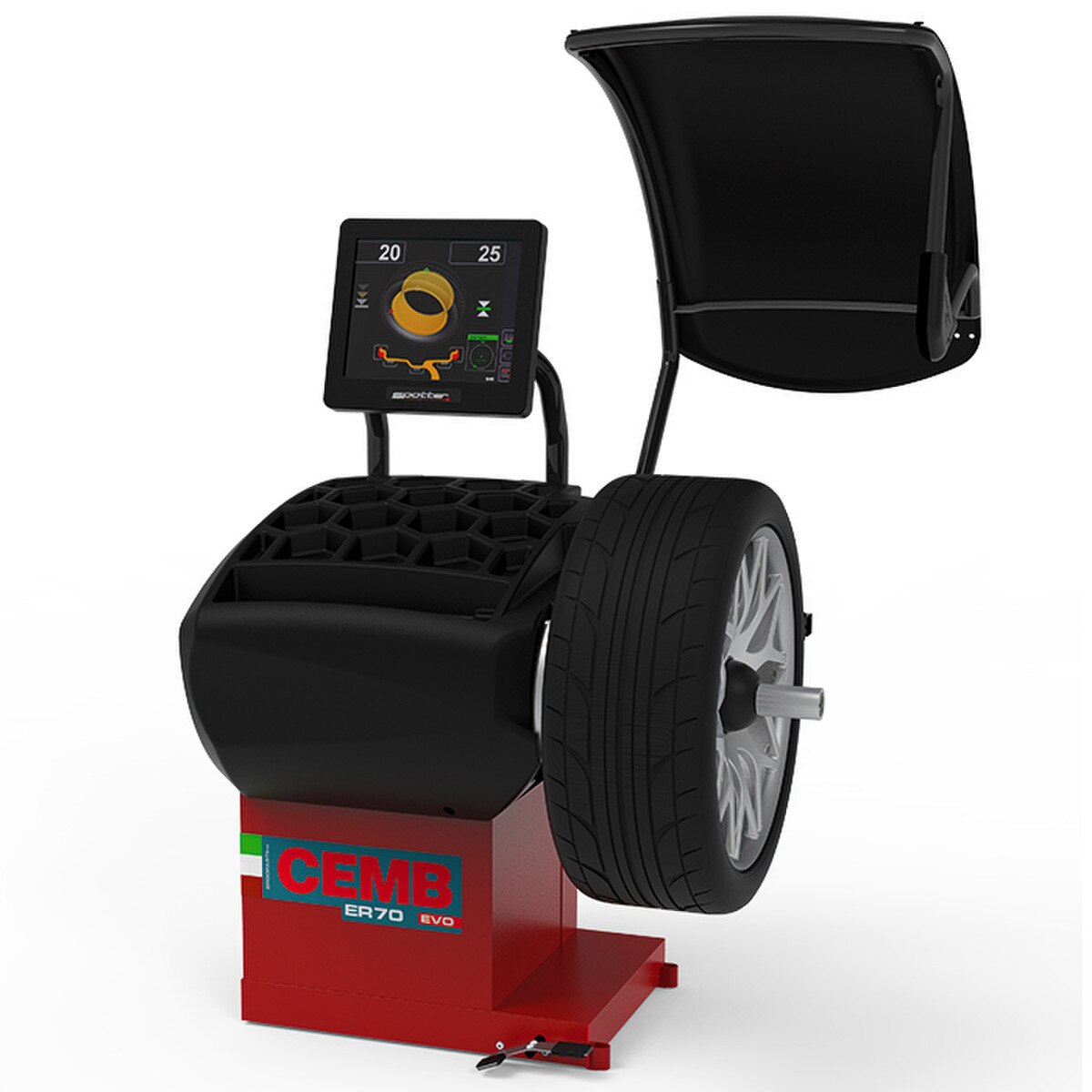

CEMB ER70SE EVO Digital Wheel Balancer with Pneumatic Locking
Details
From the worlds best name in industrial and automotive wheel balancing
The ER70SE EVO model is characterized by an excellent simplicity of use thanks to the touch screen
The included laser SPOTTER pinpoints the exact position for counter-weight application and in addition, the LA Sonar that automatically detects the wheel width on steel rims. CEMB brings you further efficiencies thanks to the automatic positioning system.
Features
- Laser Spotter - Greatest accuracy in the weights positioning during correction
- OPB One Plane Balancing - Correction of both static and dynamic unbalance on one plane at once and
with only one weight - AutoAdaptive Mode - The new tolerance calculation system
- Sonar LA for automatic measurement of the wheel width
- ALU-S Balancing mode - Adhesive weights on the internal rim planes with specific counterweight
position indicator - Led light to illuminate the working space inside the rim
- Sonar EMS (option) - 1st Harmonic and Peak to Peak) Automatic and quick eccentricity measurement
during the normal balancing cycle - HubMatch - During the measuring cycle , the wheel’s “maximum eccentricity point” is detected and displayed on the monitor, therefore allowing for its reduction during the re-mounting of wheel on vehicle (only with EMS Sonar)
- Tyre Set - The software indicates the best wheel positioning on the vehicle to get the best ride (conicity) and to minimize wheel vibrations (eccentricity) (option available only with EMS sonar)
- ER70EVO SE - Pneumatic wheel locking
- Floor to floor time reduction / Extremely easy and quick to use / Very accurate wheel centering
- Automatic rotation and locking of the wheel in weight position
- Extended gauge for diameter and distance measurement of rims up to 28”
- VDD Virtual Direct Drive - Very quick and maintenance free measurement system
Warranty
Full Parts and Labour Warranty anywhere in New Zealand
Delivery, Installation and Training are optional extra's, contact your sales representative in your region by calling 0800 4 EQUIP or email equipmentnz@gpcasiapac.com for more details
| Specifications | Data |
| Single phase power supply | 230 Vac 50 Hz |
| Max. load | 0.15 kW |
| Balancing speed | 100 rpm |
| Measuring cycle for 15kg wheel | 4.7 s |
| Measurement uncertainty | +- 0.5 g |
| Rim width setting range | 1.5 - 20" |
| Rim diameter setting range | 10 - 30" |
| Max wheel weight | 75 kg |
| Machine weight (w/o wheel guard) | 120 kg |
Standard Equipment that comes with this Balancer
Available Optional Extra's
Downloads
CEMB offers innovative, patented solutions and the widest range of products in the world. Italian designed and manufactured, high performance, superior accuracy, operational simplicity, reliability are the features which distinguish the CEMB line of garage professional balancing machines.
Since 1952 CEMB offers the most diverse and complete range of balancing machines available on the market, in addition to wheel alignments and tyre changers for cars, trucks, buses and motorcycles. In 1952 moreover Cemb created the cone adapters for balancing machines and since then the company has continued developing and producing high precision centering systems for any type of wheel.
Major tyre manufacturers worldwide choose CEMB for its extremely high-tech industrial systems for mounting, inflating, matching, bead seating-optimising, balancing, uniformity and eccentricity.
