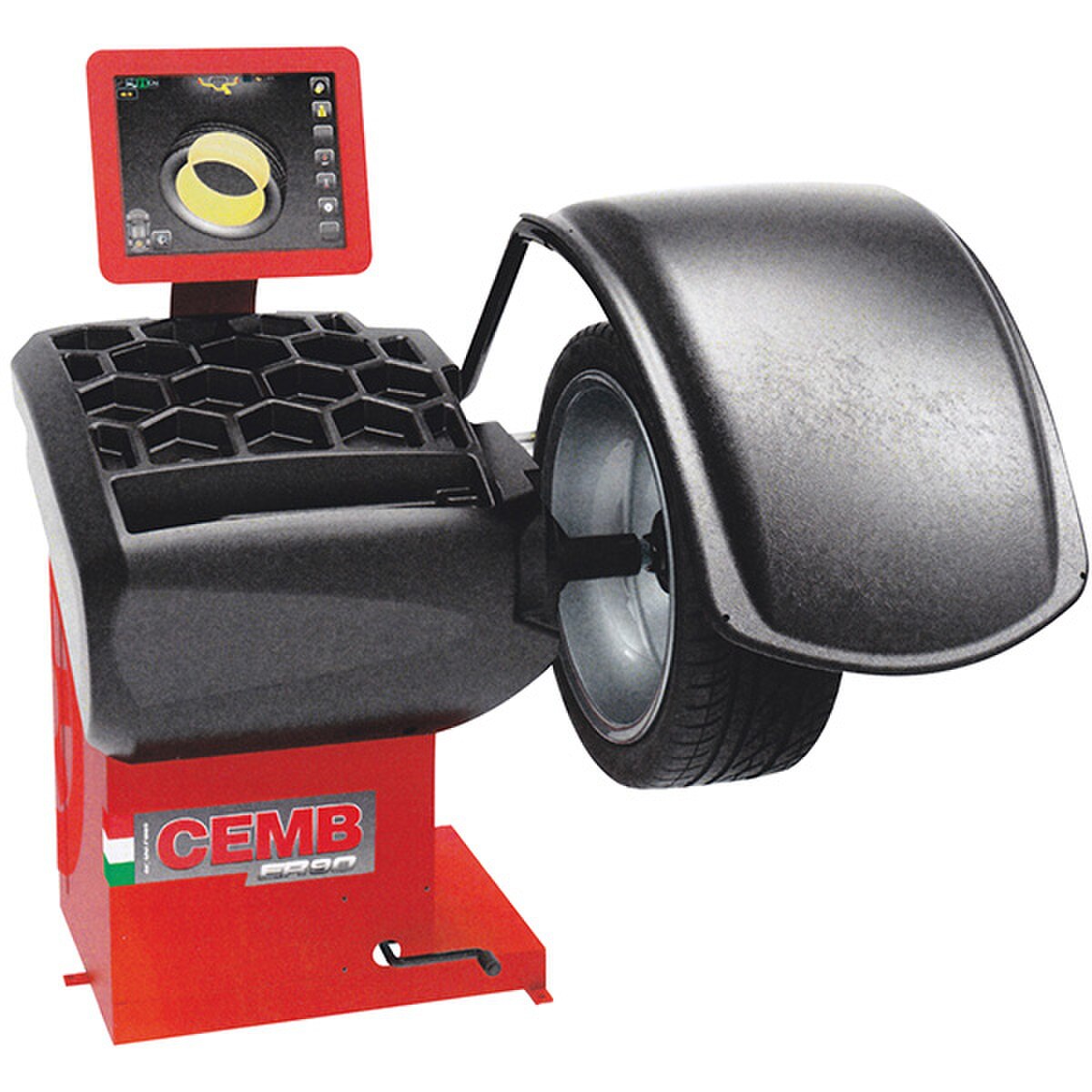

REFURB CEMB ER90SE-R Wheel Balancer
Details
***EX-DEMONSTRATOR***
From the worlds best name in industrial and automotive wheel balancing
The immediate no contact balancing machine without need of check-spin
*Installation and Delivery is an optional extra cost.
Call the Equipment Sales team on 0800 4 EQUIP (0800 437 847) for a quotation to your region.
The ER90 EVO automatically detects wheel data simply pressing one single touch button and after a few seconds gives a clear and accurate indication of exact position to place counterweights (clip-on and/or stick-on weights)
Ergonomic design
The ErgoFast range of wheel balancers has been developed to offer the operator the best possible working conditions. Every tool in a handy position, total access to internal part of rim, all accessories within reach and touch screen are only but a few of the advantages developed for our end users.
3D Laser Scan
– Touchless wheel distance and diameter measuring system which, combined with the external LA sonar for width measurement, detects with 3D precision the dimensions of any profile, even the most complex; no intervention of the operator.
– Advanced technology that speeds up the dimensions reading process without penalizing reliability and precision.
– Brighter laser pointer that grants an extreme accuracy during correction thanks to a clear indication of the application point for stick-on weights.
– Greatest robustness for a long lasting usage. No moving parts are exposed, risks of damages are reduced
– Easy maintenance
Side Laser
Two laser beams indicate the exact 12 o’clock position to place clip-on weights. With these accurate reference points, any possibility of erratically placing counterweights is eliminated.
EMS Sonar for radial run-out measurement
Vibrations caused by run-out do not depend on the unbalance of wheel. The ER90 EVO, with one single quick spin, detects all causes of vibration. The EMS Sonar, supplied as standard on machine, detects wheel eccentricity with a 0,1 mm accuracy and enables a precise diagnosis within seconds.
OPB: One plane balancing
OPB (One Plane Balancing), eliminates both static and dynamic unbalance with a single counterweight, indicating the exact position to apply the weight inside the rim. The balancer automatically detects if it is possible to correct both unbalances with only one weight, and activates OPB program (One Plane Balancing). A real revolution in wheel balancing. OPB saves you time and money while maximizing your productivity.
AutoAdaptive Mode
The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.
Standard
