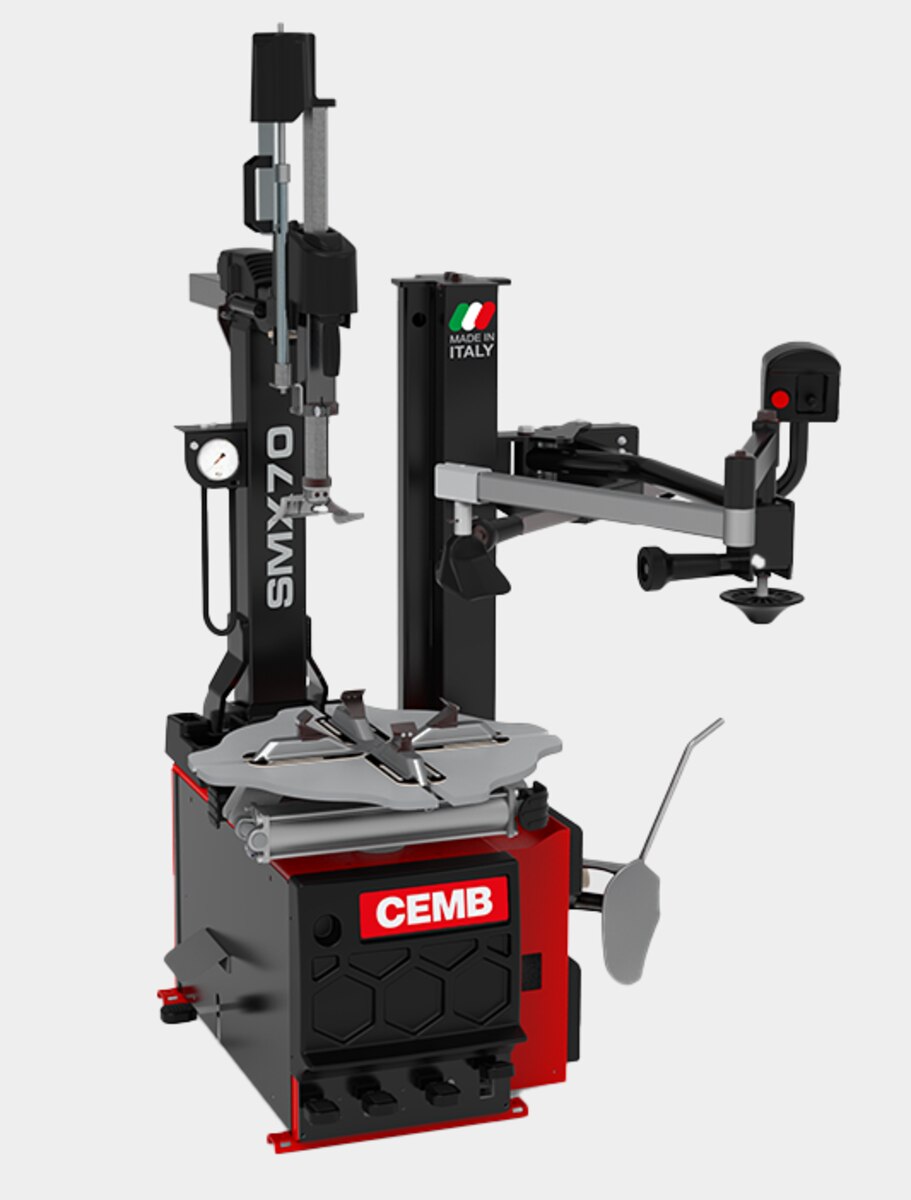

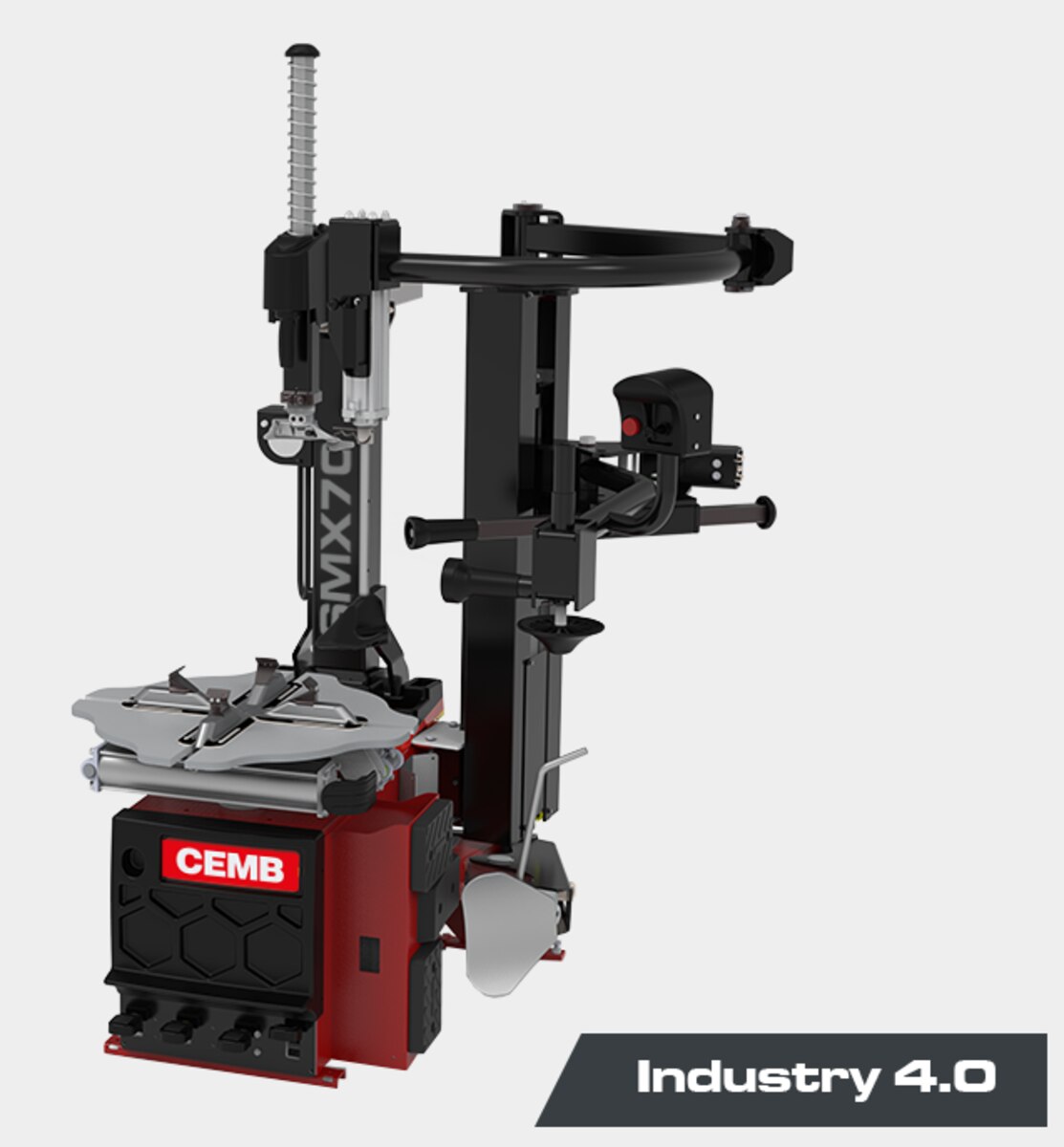

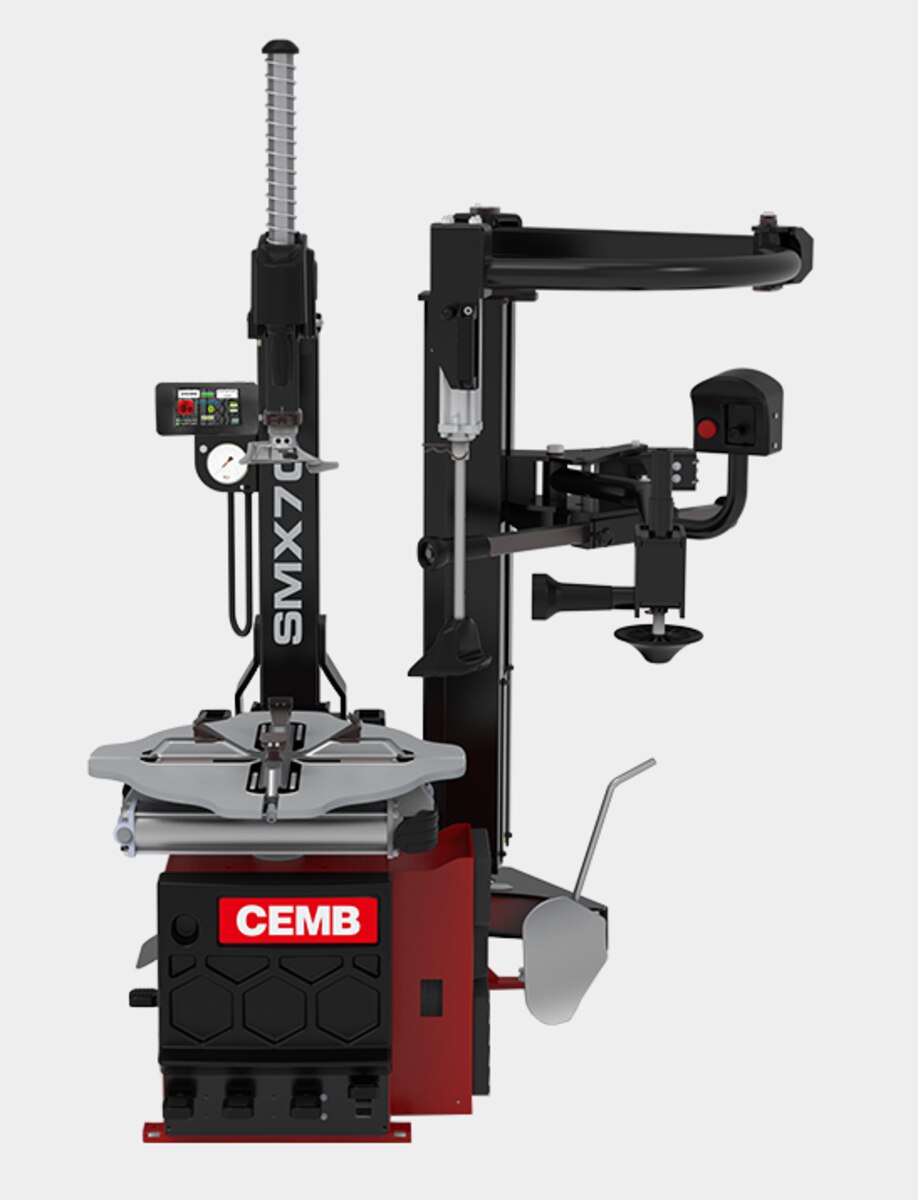

CEMB SMX70 PREMIUM 24" TYRE CHANGER COMBO, 230VAC
Details
Single Phase 230vac Automatic Tyre Changer from CEMB with a locking capacity up to 27" to suit passenger and light commercial vehicles.
Fitted with a self centering turntable to ease bead-breaking of the second tyre bead with Rim locking through an opposed jaws device with 80mm diameter cylinders. New designed swivel fitting for a higher speed during rotation and speed controlled through motor inverter system giving infinitely variable speed.
This new model from CEMB comes with pedal operated inflation, gauge and pressure limiter, HPX compact side presser and is an all round solid machine for high duty tyre workshops.
SPECIFICATION | |
| Clamping Capacity | 10" - 27" |
| Internal Clamping | 12" - 27" |
| External Clamping | 10" - 24" |
| Max Wheel Diameter | 1,170 mm (46") |
| Max Wheel Width | 430 mm (17") |
| Bead Breaker Force | 15,000 N |
| Turntable Speed | 0 - 16 rpm |
| Single phase 1-ph motor | 1.5 kW (Inverter) 230vac 50 Hz |
| Operating Pressure | 8 - 10 bar (116 - 145 psi) |
| Net Weight | 270 kg |
WARRANTY
Full Parts & Labour Warranty anywhere in New Zealand
MORE UPTIME
20+ dedicated service support staff. 12+ mobile service vehicles. Parts and service when and where you need them.
In a country as large as ours – you need a service network as big as ours and we have the largest in-house service network supporting
automotive equipment anywhere in New Zealand.
That’s why when you choose to partner with Sulco, you get the ongoing support of New Zealand’s most dedicated service and parts network.
PRODUCT CONTENTS
SMX70 Machine, 230vac version, HPX Side Presser, On unit Tyre Inflation device, Bead Lever, Front Head Protection, Rear Head Protection
