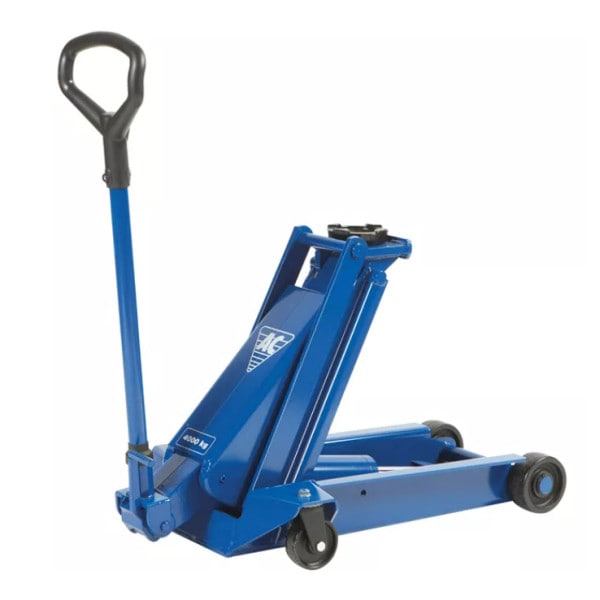

AC Hydraulic - Hydraulic Service Jack 4T Quick Lift

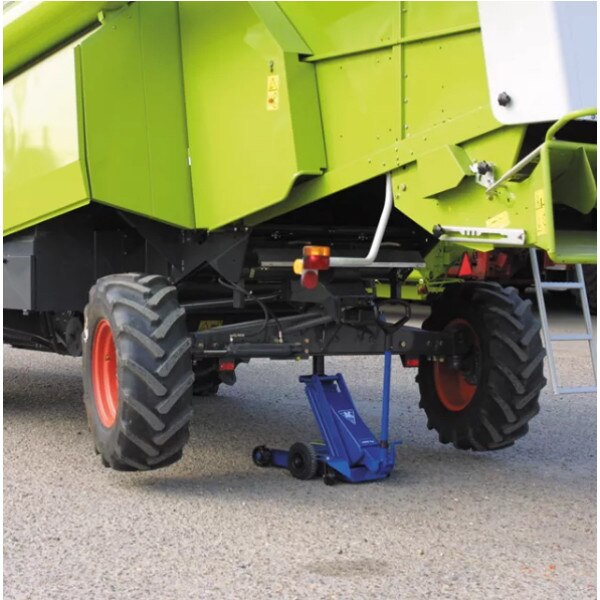

JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES

• Low minimum height of only 140 mm
• Can be fitted with pneumatic tyres for easy manoeuvring (option)
• Wide and robust frame made of high-strength steel
• Fitted with quick-lift pedal for easy reach of lifting point
• Precise and safe control whilst lowering
• Manual dead man’s release for optimum safety when lowering
• Built-in safety overload valve
• Ergonomically designed handle ensuring positive and safe operation


Specifications:

• Capacity 4 t
• Minimum height 140 mm
• Maximum height 600 mm
• Frame length 800 mm
• Frame height 240 mm
• Handle length 950 mm
• Width 500 mm
• Weight 59 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).

Watch this video to learn how to troubleshoot your hydraulic jack

Watch this video to learn how to repair your hydraulic jack
