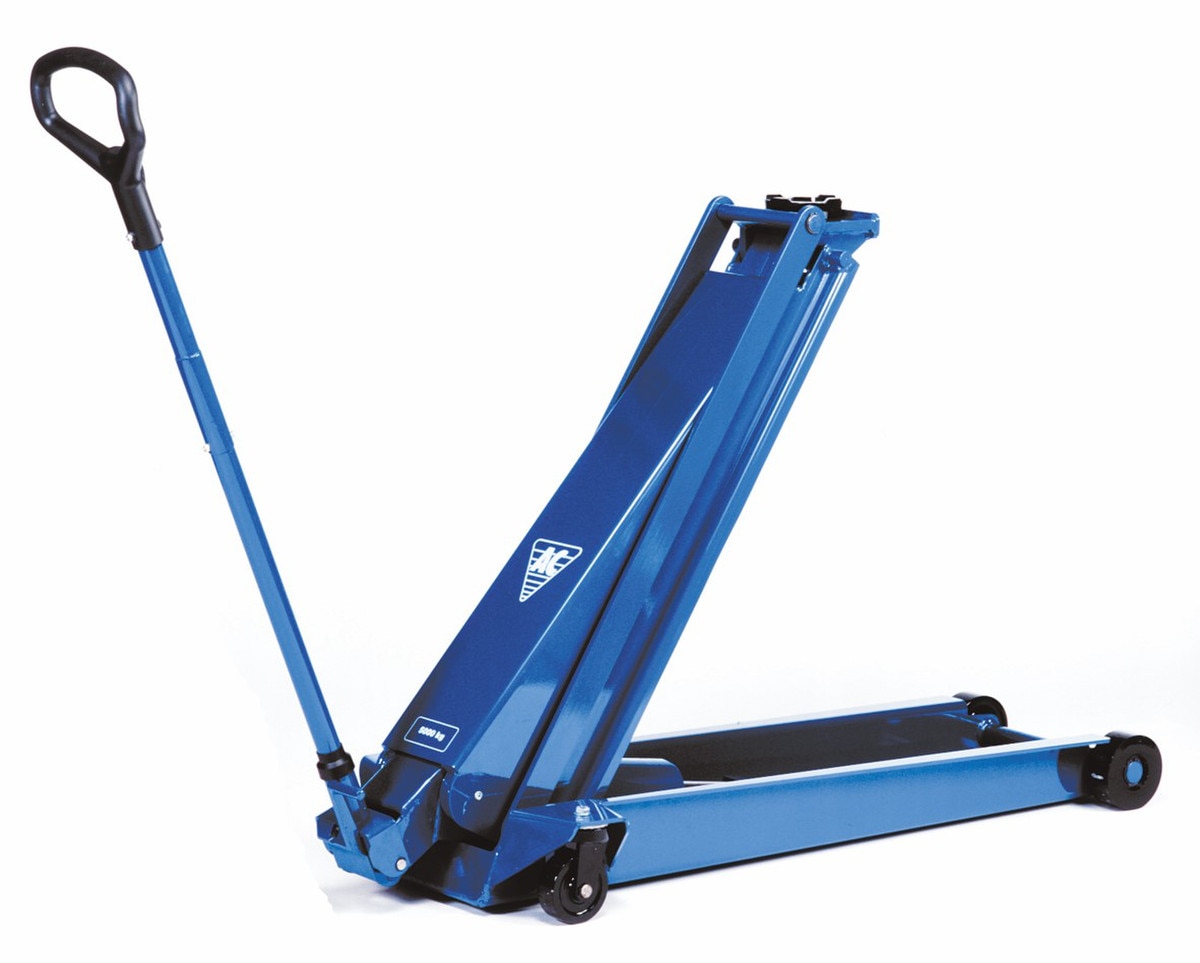

AC Hydraulic - Hydraulic Service Jack (High Lifting) 5T Quick Lift

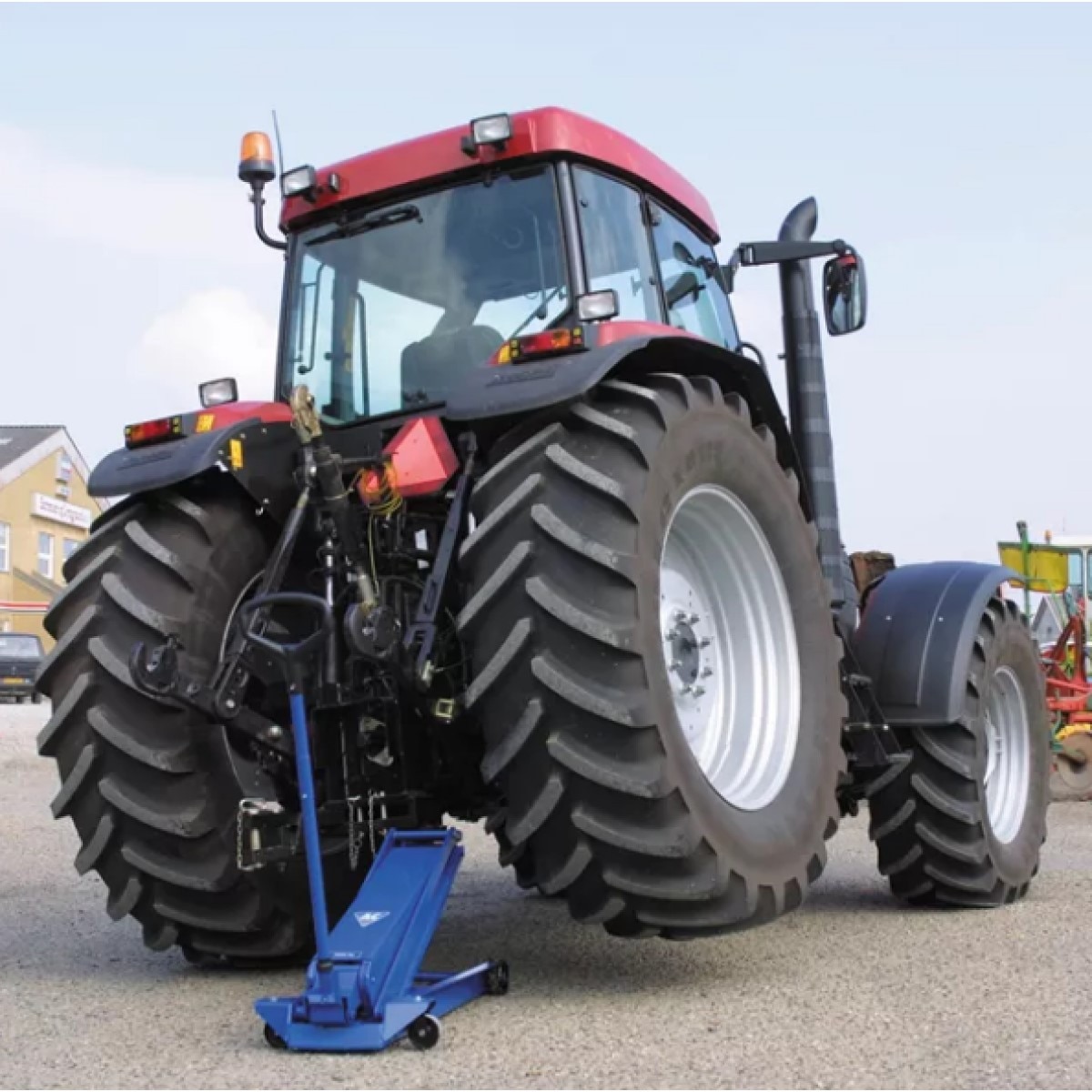

HIGH LIFTING JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES

• Low minimum height of only 140 mm
• Can be fitted with pneumatic tyres for easy manoeuvring (option)
• Wide and robust frame made of high-strength steel
• Fitted with quick-lift pedal for easy reach of lifting point
• Precise and safe control whilst lowering
• Manual dead man’s release for optimum safety when lowering
• Built-in safety overload valve
• Ergonomically designed handle ensuring positive and safe operation


Specifications:

• Capacity 5 t
• Minimum height 140 mm
• Maximum height 975 mm
• Frame length 1290 mm
• Frame height 265 mm
• Handle length 1200 mm
• Width 525 mm
• Weight 170 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
