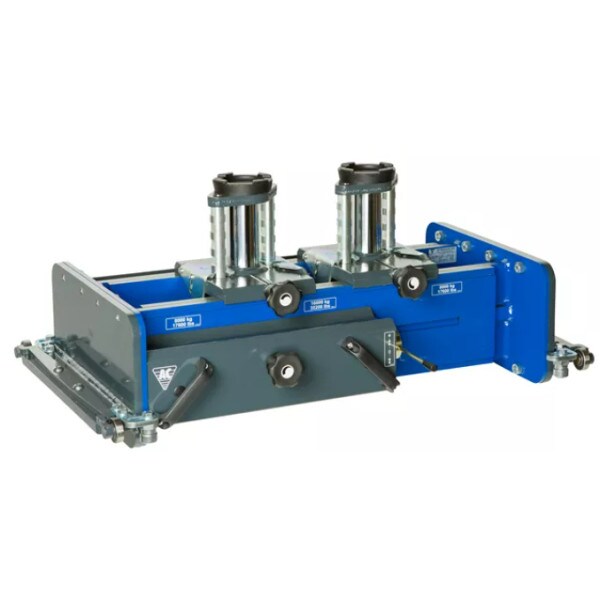

AC Hydraulic FL1602ML, 16T Twin Ram Jacking Beam, Large, with Mechanical Lock
Details
AIR HYDRAULIC TWIN RAM JACKING BEAM, WITH AN AUTOMATIC MECHANICAL SAFETY LOCK
- 2 individually controlled rams offer safe and balanced lifting
- Transversely sliding rams
- Can be made to fit all lifts due to its adjustable frame
- Frame height is adjusted and set to the customers individual specifications
- Supplied with 2 x 100 mm extensions
- Rapid and precise air hydraulic unit with high speed ram travel
- Simple modern design with control panel at ergonomical working height
- Dead man’s release and safety overload valve for optimal safety
Specifications:
- Capacity 16 t
- Stroke 200 mm
- Minimum height 325 mm
- Maximum height 505 mm
- Depth 665 mm
- Cylinder diameter 60 mm
- Air supply 8 - 10 bar
- Air consumption 350 - l/min
- Weight 202 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
