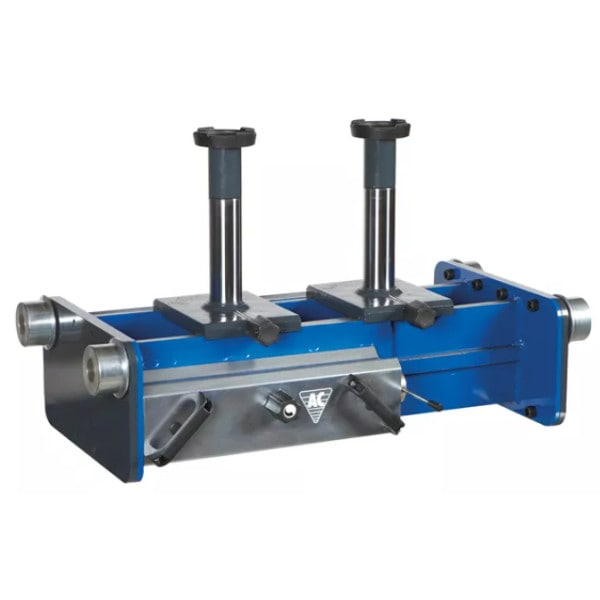

AC Hydraulic FL602, 6T Twin Ram Jacking Beam
Details

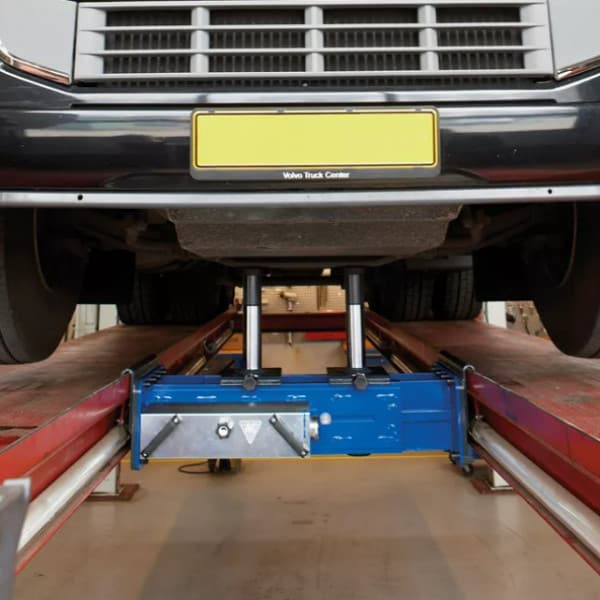

AIR HYDRAULIC TWIN RAM JACKING BEAM
- 2 individually controlled rams offer safe and balanced lifting
- Transversely sliding rams
- Can be made to fit all lifts due to its adjustable frame
- Frame height is adjusted and set to the customers individual specifications
- Supplied with 2 x 100 mm extension
- Rapid and precise air hydraulic unit with high speed ram travel
- Dead man’s release and safety overload valve for optimum safety
- Simple modern design with control panel at ergonomical working height
Specifications:
- Capacity 6 t
- Stroke 200 mm
- Minimum height 305 mm
- Maximum height 505 mm
- Depth 665 mm
- Cylinder diameter 60 mm
- Air supply 8 - 10 bar
- Air consumption - 350 l/min
- Weight 202 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
