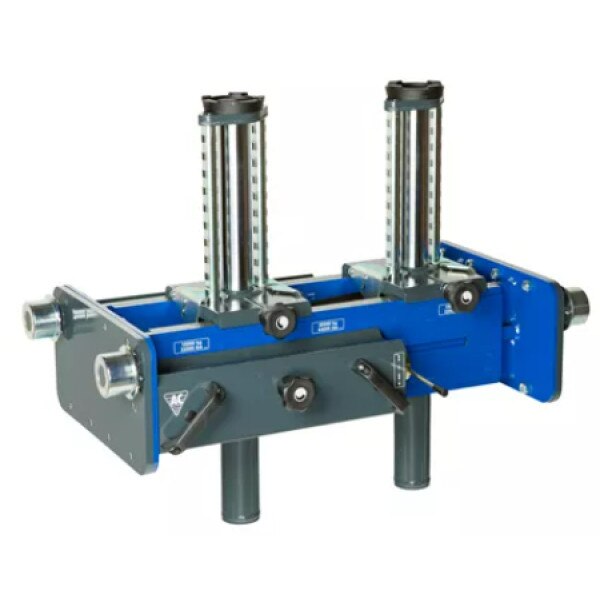

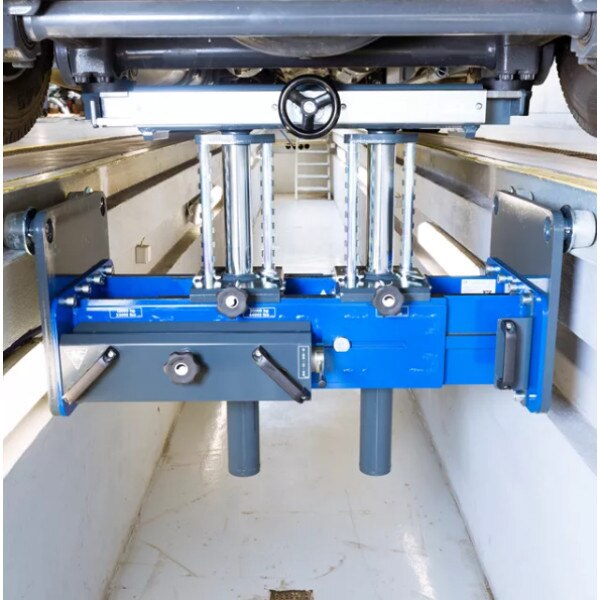

AC Hydraulic GD2002MK, 20T Twin Ram Pit Jack Small Cradle with Mechanical Lock
Details
AIR HYDRAULIC TWIN RAM PIT JACK, WITH AN AUTOMATIC MECHANICAL SAFETY LOCK
- 2 individually controlled rams offer safe and balanced lifting
- Rapid and precise air hydraulic unit with high speed ram travel
- Simple modern design with control panel at ergonomical working height
- Transversely sliding rams
- Can be made to fit all pits due to its adjustable frame
- Frame height is adjusted and set to the customers individual specifications
- Comprehensive option range: cross beam, support bridge etc…
- Supplied with 2 x100 mm extensions
Specifications:
- Capacity 20 t
- Stroke 420 mm
- Minimum height 560 mm
- Maximum height 945 mm
- Depth 650 mm
- Cylinder diameter 60 mm
- Air supply 8 - 10 bar
- Weight 220 kg
- Suits Pit Width 590 - 890 mm
- Distance between lifting points 200 - 640 mm
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
