AC Hydraulic 15T Air Hydraulic Floor Pit Jack with Telescopic Cylinder
Details

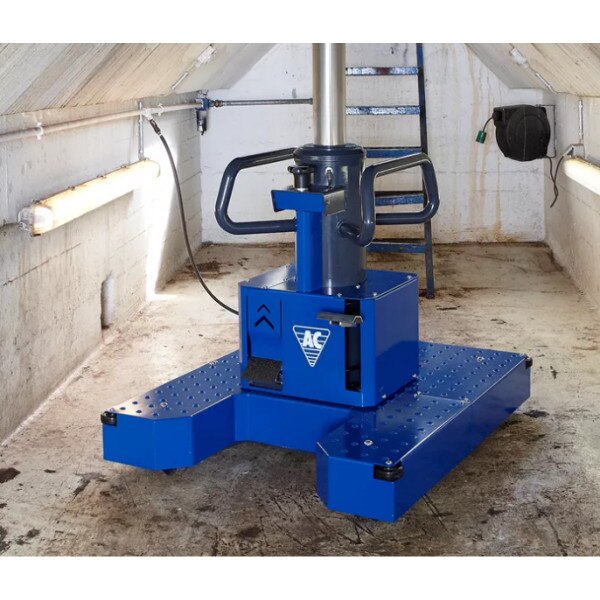

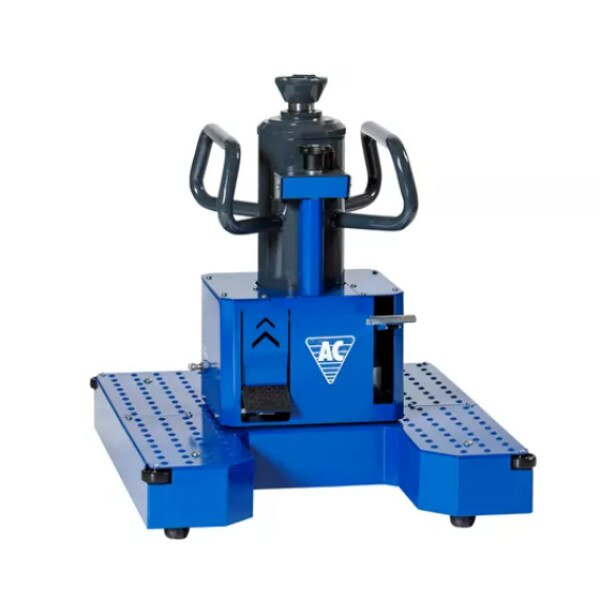

AIR HYDRAULIC FLOOR PIT JACK WITH TELESCOPIC CYLINDER
- Flexible pit jack for use both in pits and under vehicle lifts
- Suitable for all traditional lifting jobs
- Ideal for dismounting and re-mounting of gearboxes
- Spring loaded wheel supports prevent unintended movements when lifting more than 800 kg
- Rapid and precise air hydraulic unit with high speed ram travel
- Built-in manual foot pump for easy and precise adjustment
- Dead man’s release and safety overload valve for optimal safety
Specifications:
- Capacity 15 t
- Stroke 1285 mm
- Minimum height 920 mm
- Maximum height 2205 mm
- Base width 845 mm
- Base depth 1005 mm
- Cylinder diameter 60 mm
- Air supply 8 - 10 bar
- Weight 220 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
