AC Hydraulic 15T Air Hydraulic Floor Pit Jack with Traversing Telescopic Cylinder
Details

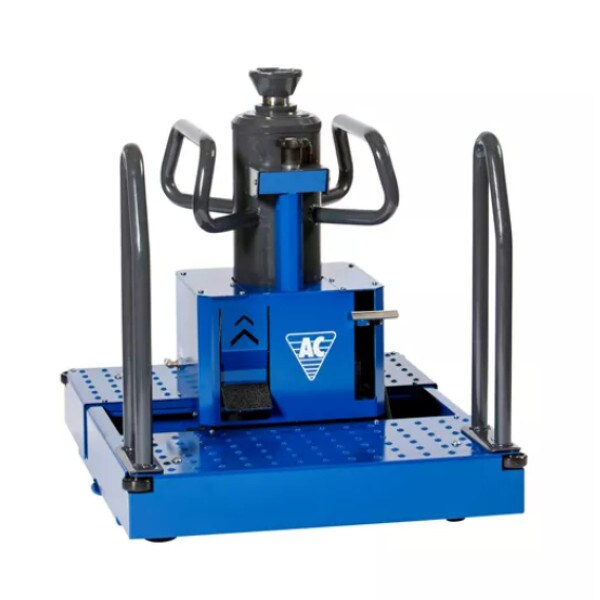

AIR HYDRAULIC FLOOR PIT JACK WITH TRAVERSING TELESCOPIC CYLINDER
- Flexible pit jack for use in pit or under a lift
- Traversing cylinder ensures a wide reach under the vehicle and enables the mechanic to move freely back and forth in the pit

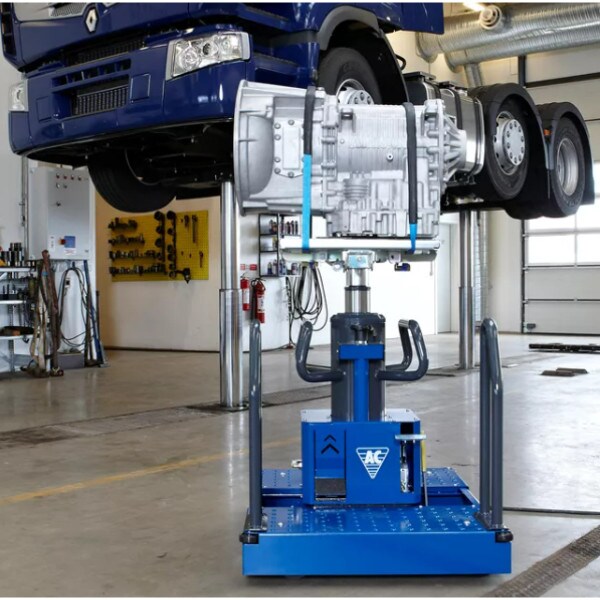

- Ideal for dis- and remounting of gearboxes due to telescopic cylinder
- Spring loaded wheel supports prevent unintended movements when lifting more than 800 kg
- Rapid and precise air hydraulic unit with high speed ram travel up and down
- Built-in manual foot pump for easy and precise adjustment
- Optimum safety and preceise lowering with ”hands-on” dead man’s release and built-in safety overload valve
Specifications:
- Capacity 15 t
- Stroke 1,285 mm
- Minimum height 920 mm
- Maximum height 2,205 mm
- Traversing cylinder 250mm
- Base width 845 mm
- Base depth 1,075 mm
- Cylinder diameter 60 mm
- Air supply 8 - 10 bar
- Weight 250 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
