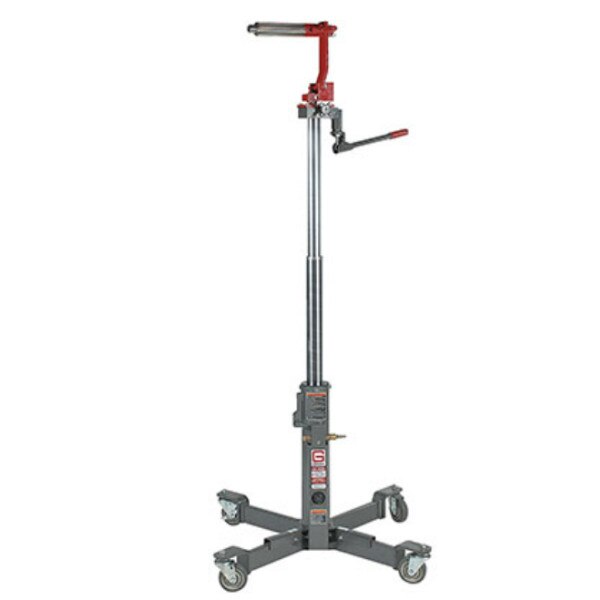

Gray - 2 Stage High Rise Clutch/Component Jack
Details
Features and specs:
- Head rotates 360° allowing flexibility and convenience during installation and removal of clutches
- Hydraulic power system provides precise adjustment
- Swivel casters allow easy movement
- Foot pedal controls allows hands-free operation
- 2-stage design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
- Spline Drive 2" 10 Tooth
| HR-300 | US Units | Metric |
|---|---|---|
| Capacity | 300 lbs | 136.08 kg |
| Minimum Start Height | 40″ | 101.6 cm |
| Maximum Lift Height | 80 1/2″ | 204.47 cm |
| Power | 1st Stage: Air – 2nd Stage: Hydraulic | 1st Stage: Air – 2nd Stage: Hydraulic |
| Head Rotation | 360° | 360° |
| Width | 41″ | 104.14 cm |
| Length | 41″ | 104.14 cm |
| Supplied Spline Shaft | 2″ | 5.08 cm |
| Swivel Caster Diameter | 4″ | 10.16 cm |
| Required Air Pressure | 100 – 160 PSI | 6.9 – 11 Bar |
| Shipping Weight | 105 lbs | 47.63 kg |
