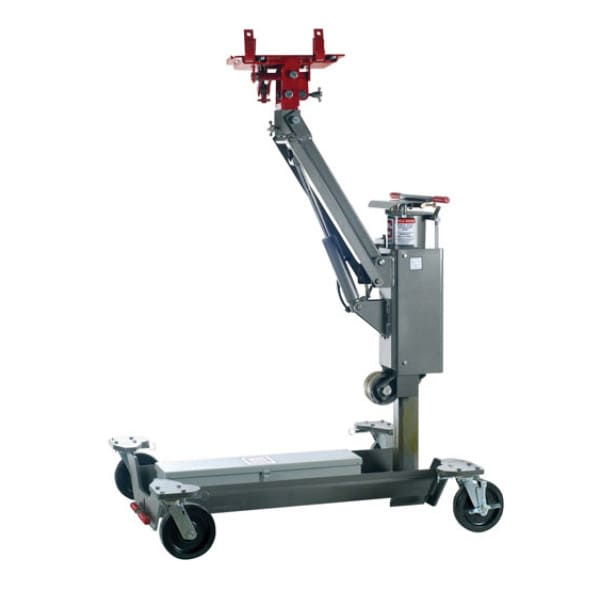

Gray Powertrain Jack Floor Platform 1T
Details
- Low starting height of 762mm easily allows removal of the jack from underneath four post lifts with a component on the jack
- High lift height of 1828mm works underneath mobile column lifts
- 2-stage operation:
- 1st stage 100% air operation
- 2nd stage air/hydraulic
- 1 metric ton capacity built to handle the heaviest components
- Four - 8" steering swivel casters provides ease when manoeuvring throughout the workshop
- 360° head rotation allows adjustment of the head plate when removing components
- TCHS kit included enables removal and replacement of awkward components
- Tow handle allows technician-controlled movement of jack throughout shop
- Easily stores away when not in use
Specifications:
- Maximum capacity: 1,000kgs. (2,204lbs.)
- Starting height: 762mm (30")
- Maximum lift height: 1,828mm (72")
- Power - 2-Stage: 1st Stage – Air; 2nd Stage – Air/Hydraulic
- Maximum PSI required: 7.5bar
- Air stage lift height: 406mm
- Air/hydraulic lift height: 660mm (26")
- Head rotation: 360°
- Swivel caster diameter: 203mm (8")
- Lifting surface dimensions: 254mm x 381mm (10" x 15")
- Tilt forward, rear, side: 10°
- Overall length: 1,252mm (49.5/16")
- Overall height: 876mm (34.1/2")
- Overall width: 1,067mm (42")
- Shipping weight: 304kgs. (670lbs.)
