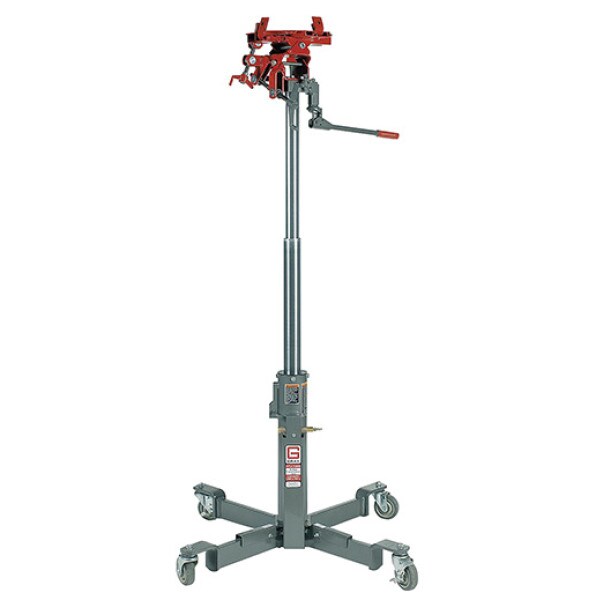

Gray - Transmission Jack - Vertical 455kg

• 2-stage design:
  • 1st stage 100% air operated for speed
  • 2nd stage hydraulic for precise control
• Swivel casters for easy manoeuvrability
• Nylon Speed-Strap™ quickly and conveniently secures the load
• Heavy duty acme threaded screws provide greater bearing surface for easier tilt adjustments

Specifications:

• Type: High-lift, air/hydraulic
• Lifting capacity: 1,000lbs. (455kg)
• Front tilt capacity: 40°
• Rear tilt capacity: 20°
• Side tilt capacity: 10°
• Base size: 41" (1,041mm)
• Minimum height: 34.1/2" (876mm)
• Maximum height: 72" (1,829mm)
• Head: Yes
• Air pressure: 90psi to 160 psi
• Standards: ANSI-PALD
