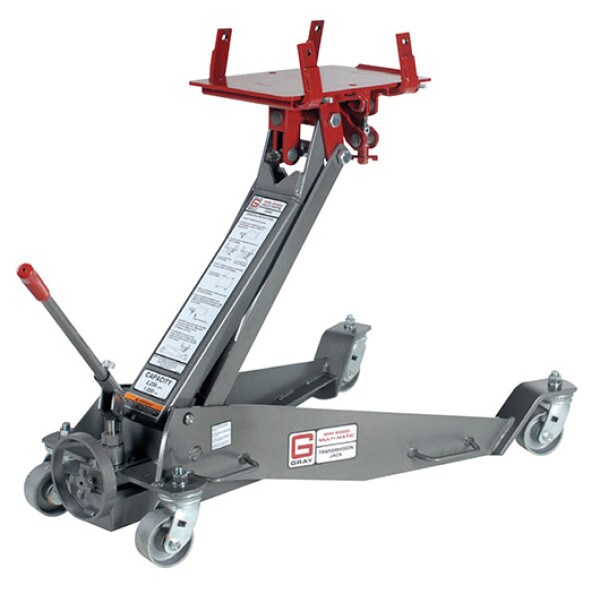

Gray 1T H/DutyTransmission Floor Jack
Details
- Quick and easy setup
- Single person operation
- Rugged design, manufactured with Gray's high quality/low maintenance guarantee
- Ratcheting brackets...secure the load fast
- Precise tilting head offers a wide range of side-to-side and Fore/Aft tilt
- Wrench controllable
- Four 4" steel swivel casters allows easy manoeuvring throughout the shop
- Proven in NZ workshops
Specifications:
- Maximum capacity: 1,000kgs. (2,204lbs.)
- Start height: 209mm (8.1/4")
- Maximum lift height: 876mm (34.1/2")
- Power: Hydraulic
- Head plate dimensions: 292mm x 432mm (11.1/2" x 17")
- Tilt forward, rear side: 10°
- Handle length: 1,117mm (44")
- Frame width: 711mm (28")
- Caster wheel diameter: 102mm (4")
- Shipping weight: 142kgs. (313lbs.)
