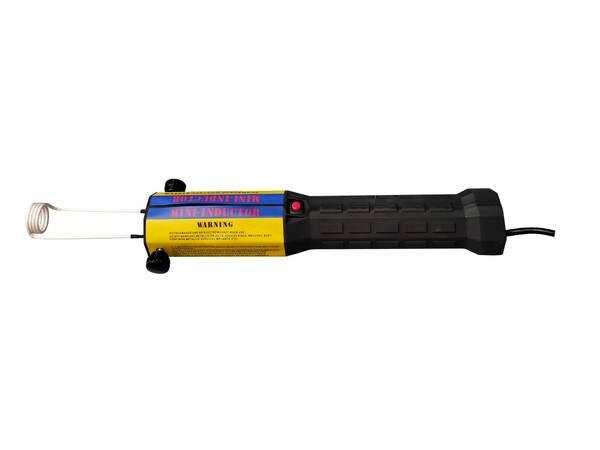

Mini Inductor

This is a kind of quality electromagnetic induction heater, with soft-start function, with long service life, safe and reliable, under frequent starts. Adopts high-performance driver chip for IGBT to drive, can precisely drive and output waveform. Automatic load identification and phase lock function, so that the load side can get a higher power factor, and the circuit can be accurately controlled in the weak inductive area and work efficiently. Help remove rusted fasteners and parts; you can have a try.

• With soft-start function, with long service life, safe and reliable, under frequent starts.
• With overcurrent-protection function for IGBT.
• With input and output overcurrent-protection, automatic adjustment negative feedback function.
• With over-temperature-protection function for IGBT.
• With heating coil short-circuit-protection function.
• With heating coil open-circuit-protection function.
• Full-bridge series resonance circuit topology, with strong anti-interference ability.
• Adopts high-performance driver chip for IGBT to drive, can precisely drive and output waveform.
• Automatic load identification and phase lock function, so that the load side can get a higher power factor, and the circuit can be accurately controlled in the weak inductive area and work efficiently.
• Several electromagnetic heating controllers are installed in parallel on the same heating tube without interference.
• Power saving, and easy installation, it can be connected to induction coils of barrel type and flat plate type, and etc.

• 1 x Electromagnetic Induction Heater
• 2 x Dia. 30mm Coils
• 2 x Dia. 40mm Coils
• 2 x Dia. 50mm Coils
• 2 x Annealed Copper Wires
• 1 x Power Adapter
