From Molnar, the Australian built standard, part of the Stenhøj Group known worldwide for it's premium quality passenger vehicle hoists

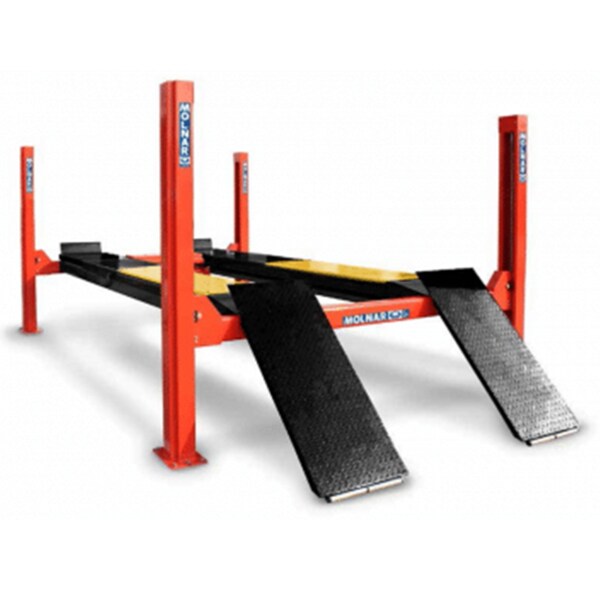

An electro hydraulic 4 post hoist with 5000kg capacity, designed to Australian specifications. Suitable for wheel alignment with integrated slip plates and large provision for turntables.



*Installation, Delivery and Training is an optional extra cost.
Call the Equipment Sales team on 0800 4 EQUIP (0800 437 847) for a quotation to your region.

  Platforms are perfect for Wheel Alignment and come with long run-up ramps to allow easy access for a wide range of vehicles. Ideal for passenger cars to light commercial vehicles.


  Key Features


• Specified for and tested in Australia
• Lifting capacity 5000kg; ideal for cars to light commercial vehicles
• Power pack position optimised for the operator and workshop space
• Large diameter pulleys
• Optional Air-hydraulics, 3 tonne Jacking Beams
• Long run-up ramps for easy vehicle approach
• Wheel alignment set includes slip plate and large provision for turntables
• Electro-hydraulic operation with cable system
• Automatic lock release
• Incorporate Isolation Switch
• Custom Colours available on request
• Optional Single Phase Motor available
• 3 Year Warranty


Specifications


Lifting Capacity:	5000 kg
Lifting Height:	1750 mm
Minimum Height:	246 mm
Overall Length:	5944 mm
Overall Width:	3095 mm
Design Registration Number:	V1701294


Click below for Downloadable Material

Download Molnar SM450-A 4 Post Hoist Brochure

Download SM450 Installation Manual

Download SM450 Operation and Maintenance Manual

Download Molnar SM450-A Spare Parts Manual
