From Molnar, the Australian built standard, part of the Stenhøj Group known worldwide for it's premium quality passenger vehicle hoists

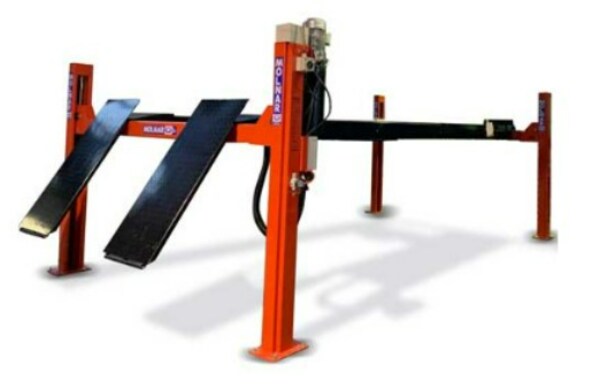

An electro hydraulic 4 post hoist with 6000kg capacity, designed to optimise operator access and workshop space.
Suitable to wheel alignment for industrial or commercial workshops with integrated slip plates and ample provision for turntables.



*Installation, Delivery and Training is an optional extra cost.
Call the Equipment Sales team on 0800 4 EQUIP (0800 437 847) for a quotation to your region.

  Platforms are perfect for Wheel Alignment and come with long run-up ramps to allow easy access for a wide range of vehicles. Ideal for passenger cars to light commercial vehicles.


  Key Features

POSTS

• Integrated eccentric brake system
• Lifting capacity 6000kg; ideal for cars to light commercial vehicles
• Large diameter pulleys
• Motor and control unit located on rear right post
• Push button control unit
• Emergency stop and lowering valve
• Hydraulic cylinder under right platform
• Electro-hydraulic operation with cable system
• Optional Single Phase Motor available
• Custom Colours available on request
• Optional Micro3000 – 3 tonne air-hydraulic Jacking Beam
• 3 Year Warranty


PLATFORMS / RAMPS

• Platforms suited to Micro 3000 – MOLNAR Jacking Beam
• Long run up ramps for easy vehicle approach
• Double slip plates included
• Large provision for turntables
• 600mm wide platforms
• Platform length of 5445 mm



Specifications


Lifting Capacity:	6000 kg
Lifting Height:	1750 mm
Working Height:	1750 mm
Lifting / Lowering Time:	55 seconds / 30 seconds
Pump Unit:	3 kW Motor
Voltage:	3 Phase + Earth 415V 50hz Optional Single Phase
Total Length:	6854 mm
Platform Length:	5445 mm
Wheel Base:	Variable
Platform Width:	600 mm
Distance between platforms:	945 mm
Minimum Height:	246 mm
Width between posts:	3010 mm
Total Width (outer edges base plates):	3412 mm
