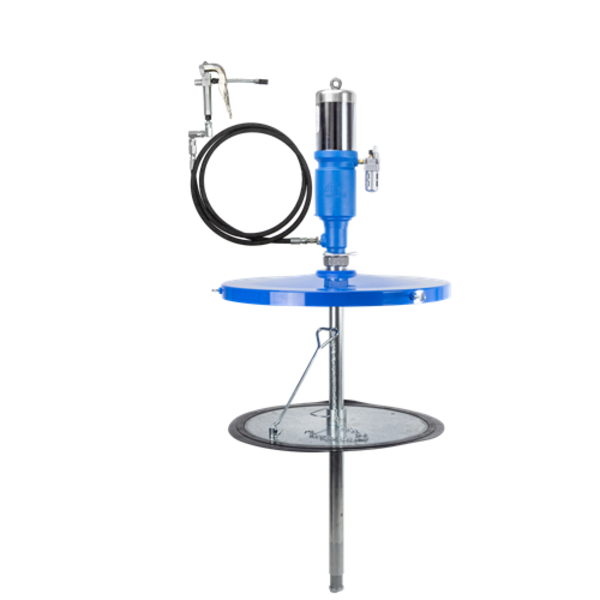

Heavy Duty Air Operated Grease Pump w/ Gun, Lid & Follower

The P58 MAXILUBE is the latest and most powerful air-operated heavy duty grease pump from Macnaught. Designed, engineered and manufactured in Australia, the P58 is a high-performance pump providing high volume and high pressure for 180kg grease systems.

Features & Benefits

• Heavy duty construction - reliable long service life
• High flow up to 6kg /min (free flow) - fast high pressure greasing
• High-quality components to ensure reliable operation in the harshest environments.
• Large silencer that is incorporated into the aluminium alloy pump body to prevent icing and less noise
• Quick grease line pressure recovery - Instant greasing
• Large pump suitable for long grease line delivery - Ideal for large workshops with long greasing distances
• Fully repairable - Spare parts availability
• Low Air consumption – 23.5cfm

Technical Specifications

• Pressure Ratio - 58:1
• Compatible with 180kg (400lb) drums
• Air Pressure Operating Range - 60 to 150psi (413kPa to 1,034kPa)
• Max Fluid Outlet Pressure - 8700psi (59,900 kPa)
• Max Free Flow Delivery Rate - 6 kg/min (13lb/min) [@120psi pressure, 20°C (68°F)]
• Noise Level - 85 dB(A) (@120 psi)
• Air Inlet Size - 1/4" BSPT
• Fluid Outlet Size - 3/8" BSPT
• Grease viscosity up to NLGI No.2
• Supplied with Lid and Follower suitable for 180Kgs (400lbs), Hose and B2 Booster Gun
• Wetted Components - Aluminium, Nitrile Rubber, Zinc Plated Carbon Steel, Carbon PTFE
