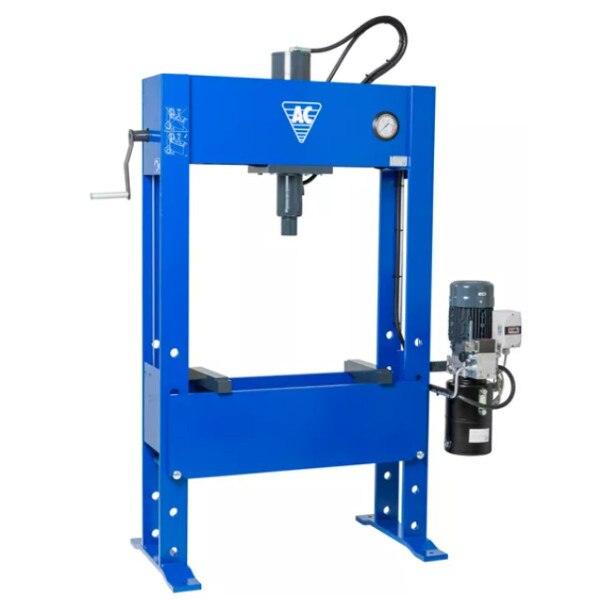

AC Hydraulic P60EH2, 60T Hydraulic Press
Details
ELECTRO-HYDRAULIC PRESS FOR TRUCK WORKSHOPS AND HEAVY INDUSTRY
- Electro-hydraulic 2-stage pump
- The pressure can be set to any required tonnage up to 60 t
- Traversing double-acting ram with long stroke of 300 mm
- Removable ram end cap for mounting of various piston heads
- The motor is 3 phase 400V and 50 Hz
- Built-in safety overload valve
- Winch operated press table

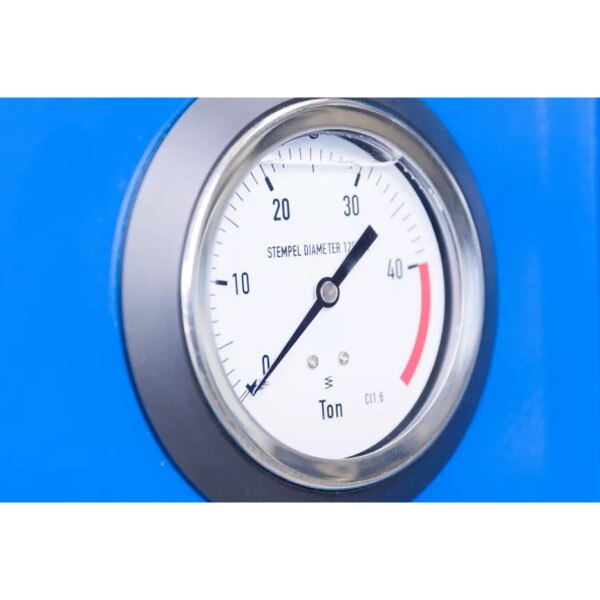

- Built-in pressure gauge at convenient eye level
- Supplied with 2 vee blocks
Specifications:
- Capacity 60 t
- Stroke 300 mm
- Height 2,020 mm
- Width with motor 1,555 mm
- Width between legs 1,010 mm
- Depth between legs 260 mm
- Clearance 170-760 mm
- Press speed 10 mm/s
- Return speed 14.50 mm/s
- Weight 635 kg
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
