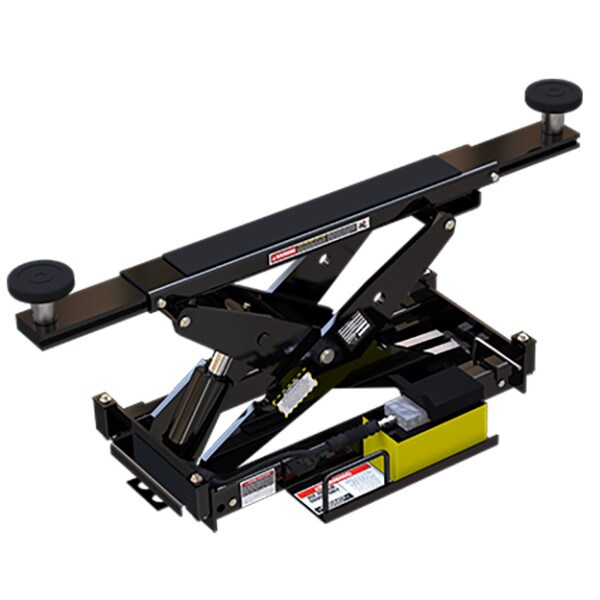

Bendpak 7,000lb Rolling Bridge Jack

This 7,000-lb. capacity rolling bridge jack is made for an HD-14 four-post lift. Each rolling jack comes complete with three safety-lock positions and stackable pad adapters to provide added clearance when needed.

Lift 7,000 lbs. for Full Wheel Service Capability

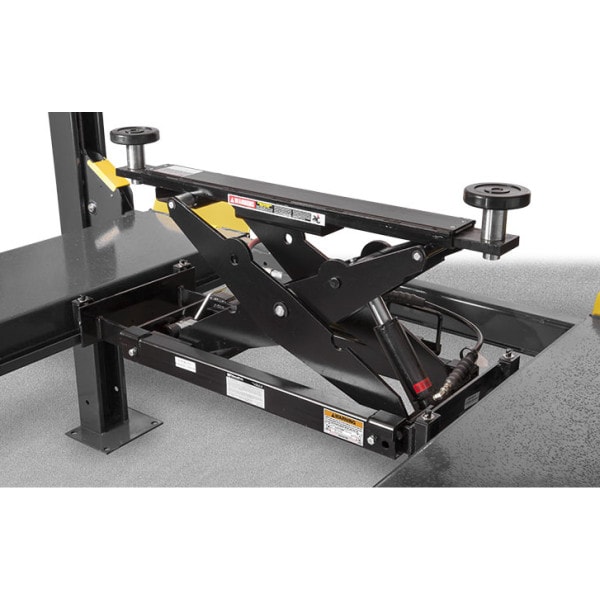

The HD-14 car lift is one of our most popular units for lifting medium-duty vehicles, as well as low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle’s wheels, but what do you do when it’s time for a tire swap? Unless you want to expand your capabilities with a two-post lift, a simple pair of RBJ7000 rolling bridge jacks is necessary to lift the vehicle. (Each jack lifts half the vehicle frame.)

Rubber contact pads

BendPak rubber contact pads are included with every rolling bridge jack we sell. The RBJ7000 pads engage the lift points of large vehicle chassis with ease. We recommend purchasing the optional frame cradle pads for larger trucks and SUVs, as well.

Stackable adapters

Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RBJ7000 rubber contact pads come with stackable adapters. This lets you reach the lift points without sacrificing how much rise you get from the jack. The adapters work on every vehicle type; all you need to know is whether the RBJ7000 is the right jack for what you want to lift.

High-pressure hydraulic power unit

A single, air-hydraulic pump is fitted to the side of the RBJ7000 rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack’s. After connecting the air line to the jack (needs 125 PSI and 10-20 CFM), an easy-to-use foot pedal activates the jack.

Three lock levels

For your convenience, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends. Your car lift operations are separate from those of the bridge jack.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.
