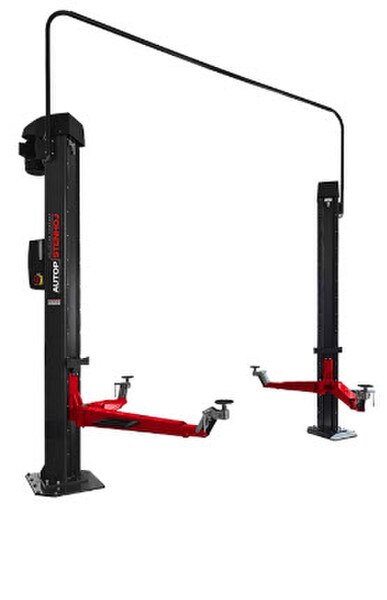

Autop Stenhoj Maestro 2.32CF Hoist 2 Post 3,200kg

Autop-Stenhoj, considered the best hoist money can buy. European designed, 2 post 3.2T capacity. Suitable for the safe lifting of electric vehicles. A very good machine that will give you many years of reliable trouble free operation

*Installation & delivery not included, for pricing contact your Sulco equipment sales rep

Features & Benefits:

• Asymmetric post installation

• Very stable welded posts

• Without base frame

• Two motors

• Cold-rolled spindle for low noise and much reduced wear

• Nylon nut sets

• Carriage with 6 guiding wheels and lubrication free roller bearings, 2 POM guiding wheels

• Pushbutton control unit with alarm signal

• Programmable top stop

• Electronic synchronisation

• Single telescopic front and rear arms as standard

• Internal arm locking system

• Low minimum height

• Recommended by Renault

• Plus a large range of Optional Extra's available

Technical data:

• Lifting capacity: 3,200 kg
• Lifting height: 1,900 mm
• Working height: 1,995 - 2,150 mm
• Lifting / lowering time: ~ 40 sec.
• Voltage: 3ph 415V
• Motor: 2 x 1.5 kW

Arm superstructure:

Lifting pad included in the delivery

• F: 777112 (95 – 125 mm)
• CF: 777504 (95 -255 mm)
• CF-08: 777395 (95 - 250 mm)

• Total height post: 2713 mm
• Total height incl. portal: 4,050 / 4,350 mm
• Drive-through width: 2,120 - 2,320 mm
• Min. height: 95 mm
• Width between posts: 2,380 - 2,580 mm
• Total width - outer edges base plates: 3,120 - 3,320 mm
• Total width - outer edges posts: 2,960 - 3,160 mm

Arm length front, min. - max.

• F: 540 – 850 mm
• CF: 580 – 890 mm
• CF-08: 550 – 840 mm

Arm length rear, min. - max.

• F: 900 – 1,425 mm
• CF: 935 – 1,425 mm
• CF-08: 920 – 1,415 mm
