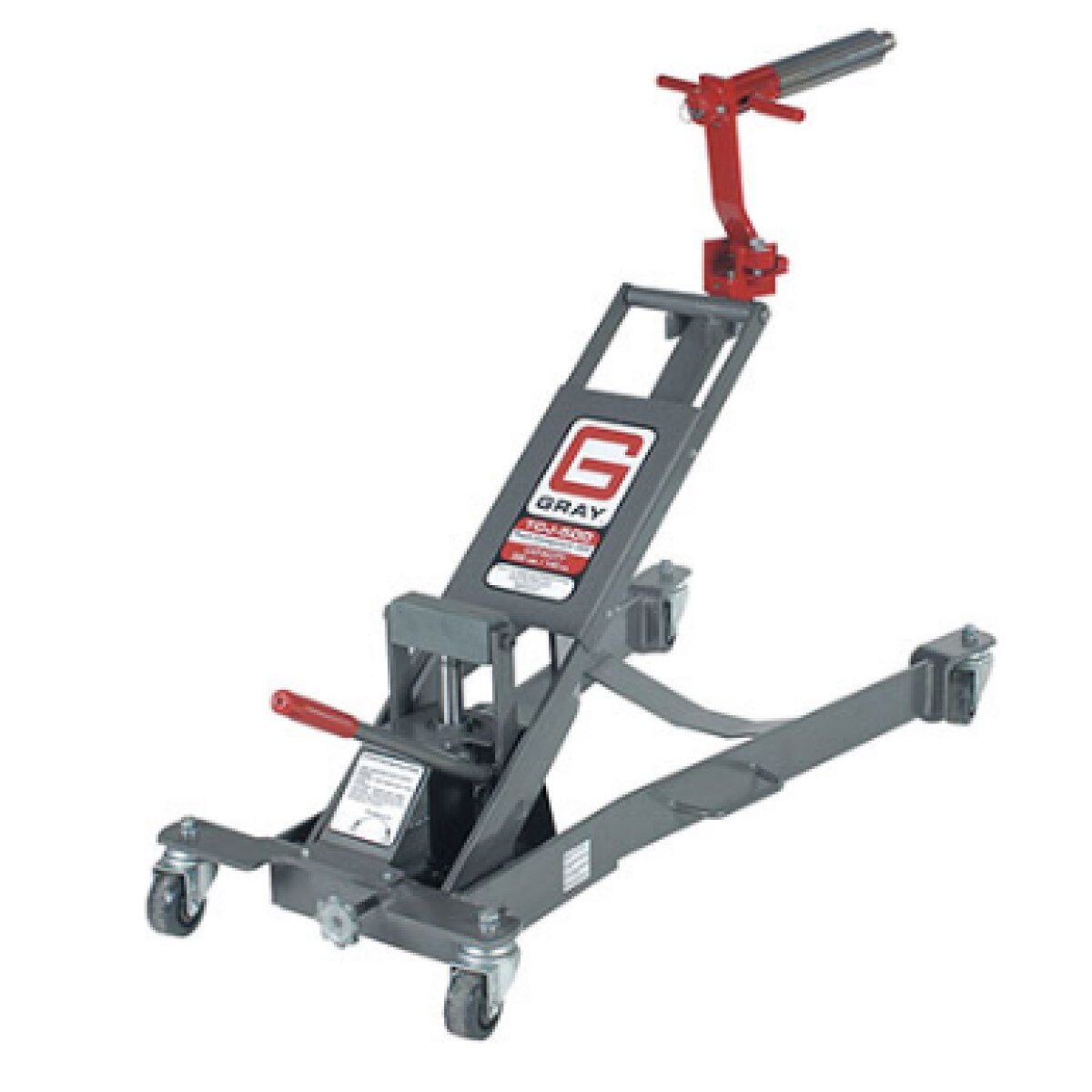

Gray - Heavy Clutch Handler for Trucks

Easily handles 14" and 15.1/2" clutches.

• 360° head rotation allows precise alignment when replacing clutch
• Low profile design - easily remove from under vehicle with clutch/component on jack
• Convenient - handles heavy components that usually tie up two technicians
• Accurate - provides side-to-side rotation and vertical tilt adjustments
• Strong - welded steel frame construction for durability
• Includes 2" spline with 1" hub pilot bearing shaft
• 4" x 3" swivel casters manoeuvre jack around shop with ease

Made in USA. Patented design.

• Maximum capacity: 136kgs. (300lbs.)
• Starting height: 330mm (13")
• Maximum lift height: 990mm (39")
• Power: Hydraulic
• Supplied spline shaft: 51mm (2")
• Supplied hub pilot size: 25mm (1")
• Head rotation: 360°
• Overall length: 1,041mm (41")
• Overall height: 330mm (13")
• Overall width: 559mm (22")
• 4 each swivel casters: 76mm (3")
• Shipping weight: 59kgs. (130lbs.)
