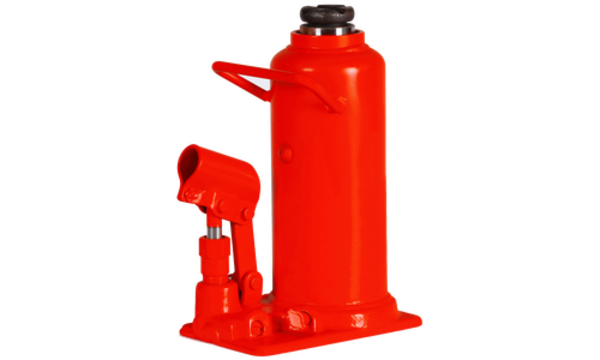

12T Hydraulic Bottle Jack, 250 - 480mm

12T hydraulic Bottle Jack

Industrial series jacks feature in-line design making it more convenient to be positioned & operated. Welded base & cylinders to ensure strength & eliminate leaks. Chrome plated pump piston and ram for added rust resistance. Fitted with safety valves to protect overloading. They can be used vertically, horizontally or at any angle for application versatility. Jacks feature fewer working parts; internally machined oil passages, extremely smooth bearing surfaces; and close tolerances to ensure trouble free service & long life. Extension screw gives added height when necessary.

Meets ANSI / ASME PALD standards & CE / GS standards.

• Capacity: 12 ton
• Stroke: 150 mm
• Screw: 88 mm
• Retracted: 250 mm
• Extended: 480 mm
• Weight: 7.7 kg
