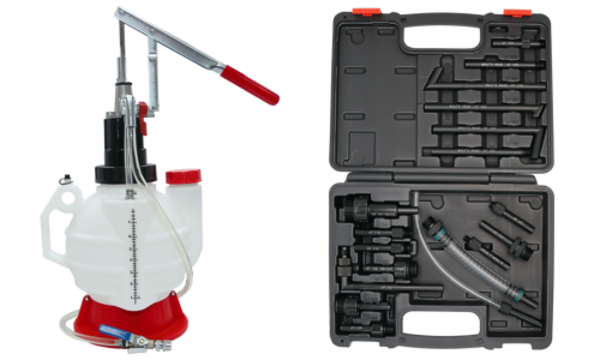

Transmission Filling System w/ #K10-4

Manual operated pump to fill transmission system. Standard and optional adaptors cover all CVT and DSG design. Pump stroke to minimize leakage when reaching overflow point. Fluid control valve to shut off dispensing immediately. Large transparent tank to see through fluid level.

Item No.DescriptionLength
AT105Straight Adaptor100mm Long x 10mm Diameter (10 x 1mm Thread)
AT104Bent Adaptor150mm Long x 10mm Diameter (VW, Audi, Porche)
AT103Bent Adaptor150mm Long x 10mm Diameter (VW, Audi)
AT102Bent Adaptor140mm Long x 10mm Diameter (Universal)
AT101Straight Adaptor122mm Long x 1/8NPT (Ford)
AT106Thread AdaptorMercedes 722.9 12 x 1.5mm
AT107DSG Thread AdaptorVW / Audi DSG 24 x 1.5mm
AT108Thread AdaptorVW / Audi CVT 22 x 1.5mm
AT109Special AdaptorVOLVO M5 / 16 x 24mm (Optional)
AT110Special AdaptorTOYOTA / LEXUS M18 X 1.5mm (Optional)
AT111Special AdaptorSKODA M30 X 1.5mm (Optional)
AT112Adaptor for #K10CHVW / Passat and Tiguan after 2007 (Optional) M13 x 1.8 x 5.5mm
AT113Adaptor for #K10CHInfiniti 7 speed M8 x 1.0mm (Optional)
AT114Adaptor for #K10CHUniversal Honda, Hyunda, Kia (Optional) M1.43 x 1.43 x 7mm
AT115Adaptor for #K10CHNEW SKODA M18 x 1.5mm (Optional)
AT116Adaptor for #K10CHMini Cooper M1.43 x 6.8mm (Optional)
AT117Adaptor for #K10CHNISSAN Serena S-HYBRID M10 x 1.5mm (Optional)
AT118Adaptor for #K10CHNISSAN JUKE M12 x 1.25 (Optional)
AT185GM W-Body Strut Service Kit
