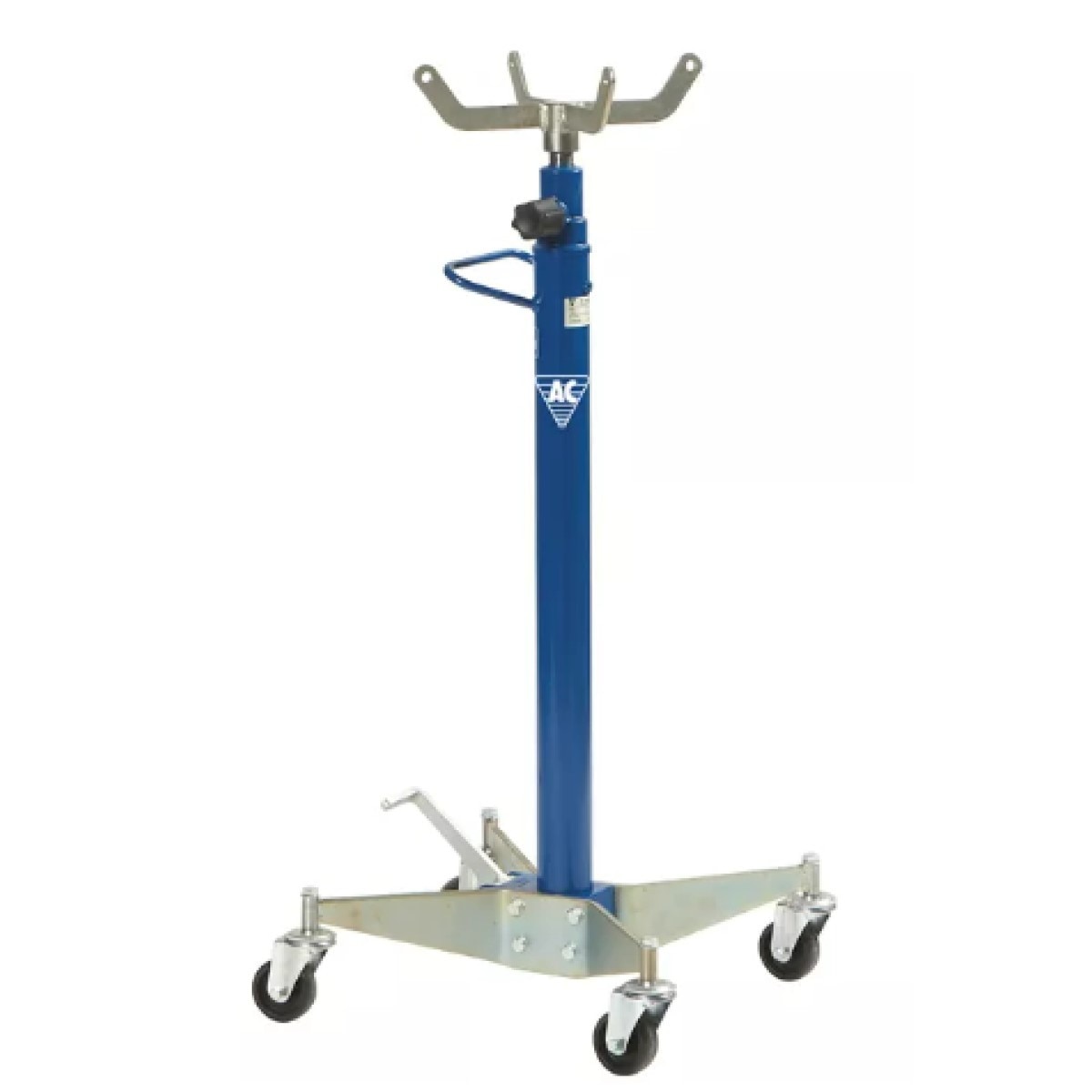

AC Hydraulic Transmission Jack, 600 kg
Details
HYDRAULIC TRANSMISSION JACK FOR CARS AND VANS
- Pedal operated pump leaving both hands free for working
- Precise adjustment for positioning of transmission
- Hand operated dead man’s release for optimum safety whilst lowering
- Hard chromium plated piston rod and pump piston for long life
- Also suitable for many other lifting operations such as mounting of springs, fuel tanks, exhaust pipes etc
- Galvanised support saddle and base frame
- Built-in safety overload valve
- Sturdy swivel castors for optimum stability and manoeuvrability
Specifications:
- Capacity: 0,6 t or 600 kg
- Minimum Height: 1,130 mm
- Maximum Height: 1,965 mm
- Width: 530 mm
- Weight: 33 kg
- Wheel diameter: Ø 80 mm
10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
Watch this video to learn how to troubleshoote your hydraulic transmission jack
Watch this video to learn how to repair your hydraulic transmission jack
