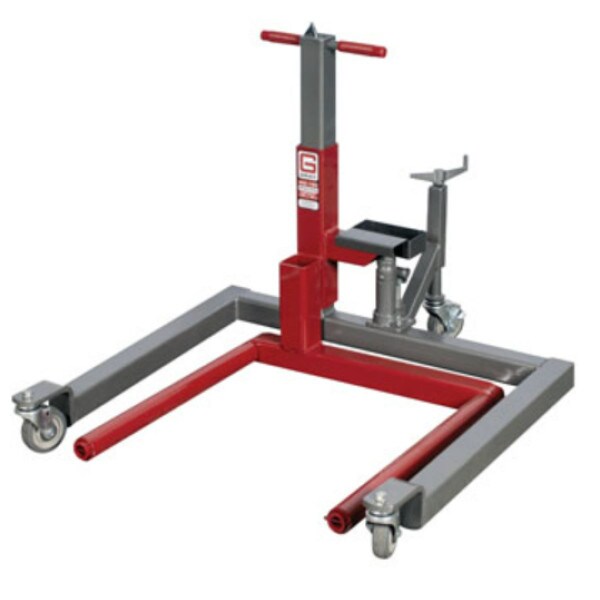

Gray - Wheel Dolly, 680kgs
Details
- Made by Gray, USA
- This wheel dolly, while basic in design has great structural strength being of heavy box section steel construction
- Has enough capacity to handle a variety of dual and single wheel assemblies for applications on heavy-duty truck, aircraft, ground support and farm equipment
- The vertical column is offset which allows easy access to wheel studs and wheel hub centres
- The lift utilises a genuine Gray made hydraulic bottle jack
- The frame height from the floor is adjusted by the hand wheel
- Casters are heavy duty and will roll on uneven shop floors
- One caster is braked
- The small parts tray for wheel nuts etc. is removable
- The lifting tines are fitted with rollers so the vehicle wheels can be rotated on the frame
- The tine rollers have internal bearings for ease of aligning wheels to the wheel hub
- Finished in grey and red powder coated enamel, this is a top quality piece of equipment at an economical price
- Requires minimum maintenance
- Maximum capacity: 680kgs. (1,499lbs.)
- Maximum lift height: 203mm (8")
- Power: Hydraulic
- Lift arm spread: 609mm (24")
- Chain length: 1,829mm (72")
- Forward / rear lift: +2° / –5°
- Overall length: 990mm (39")
- Overall height: 762mm (30")
- Overall width: 914mm (36")
- Shipping weight: 54kgs. (119lbs.)
