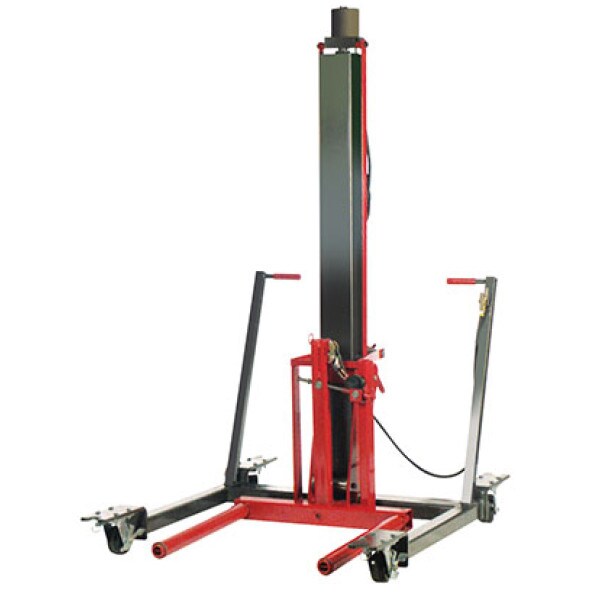

Gray - High Rise Wheel Dolly, 544kgs
Details
- The WDH-12 high rise wheel dolly has a 51" (1,295mm) air operated hydraulic power system for speed and precision
- The arms feature internal bearings for smooth rotation for ease of use
- The arms are designed to easily accommodate super singles and dual wheel assemblies
- Air assisted hydraulic power system
- Internal bearings provide smooth rotation of wheel assemblies
- Steel casters provide great maneuverability
- Made in the USA
- Capacity: 544.31kgs. (1,200lbs.)
- Maximum lift height: 1,295mm (51")
- Power: Air hydraulic
- Lift arm spread: 610mm (24")
- Forward tilt: 4°
- Rear tilt: 4°
- Side to side tilt: +/–2.875
- Overall length: 1,327mm (52.1/4")
- Overall width: 1,079mm (42.1/2")
- Overall height: 3,134mm (123.3/8")
- Chain length: 1,828mm (72")
- Shipping weight: 206.39kgs. (455lbs.)
