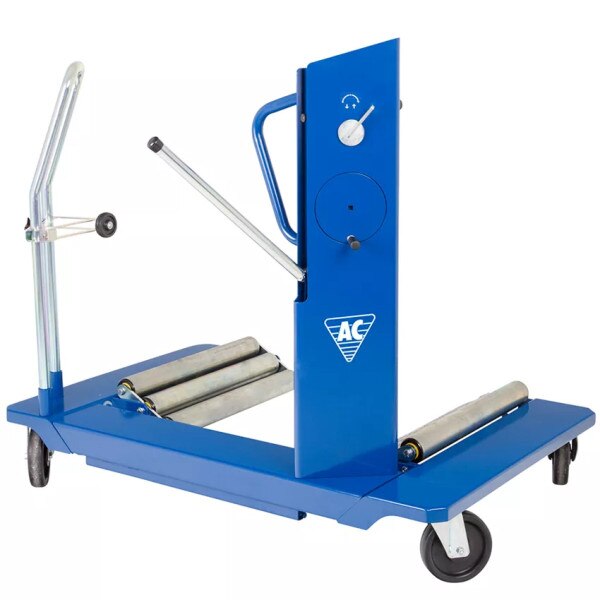

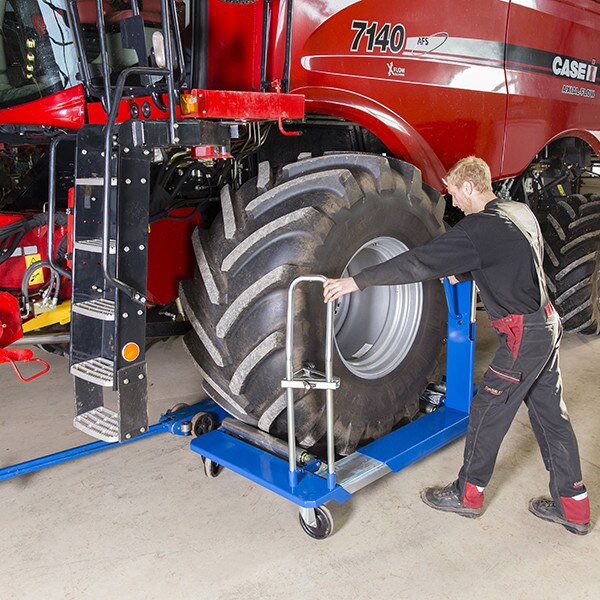

AC Hydraulic - WT1500NT 1,500 kg Wheel Trolley

HYDRAULIC WHEEL TROLLEY WITH A HANDLE THAT FACILITATES EASY TURNING OF LARGE WHEEL

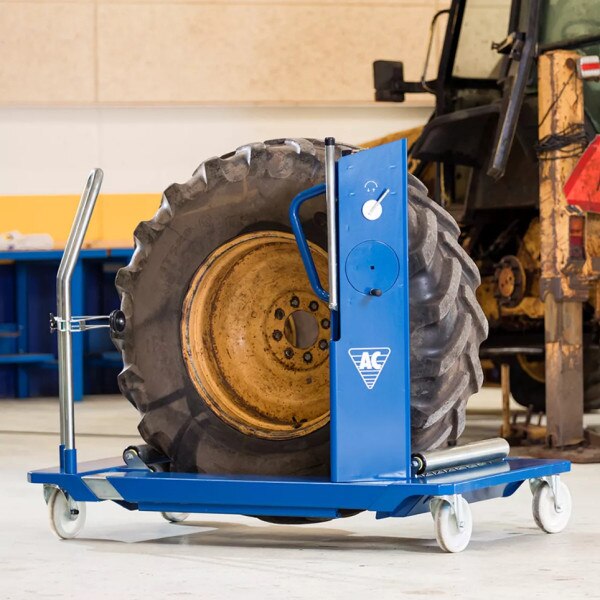

• Easy handling of the largest wheels in the world

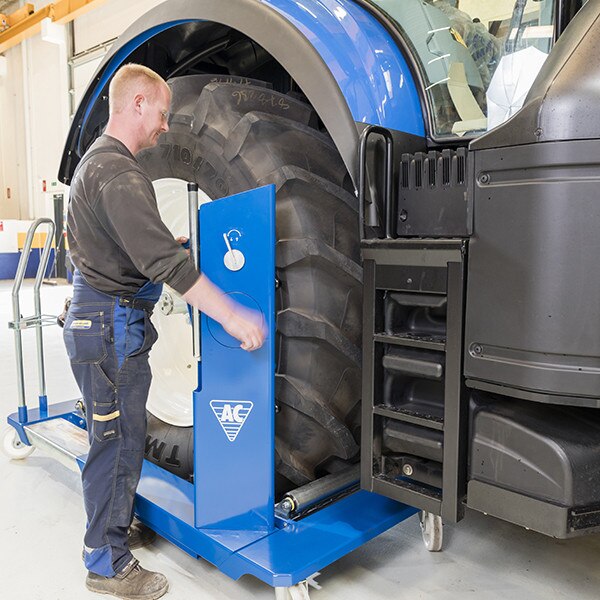

• A handle facilitates easy turning of the wheel on the trolley

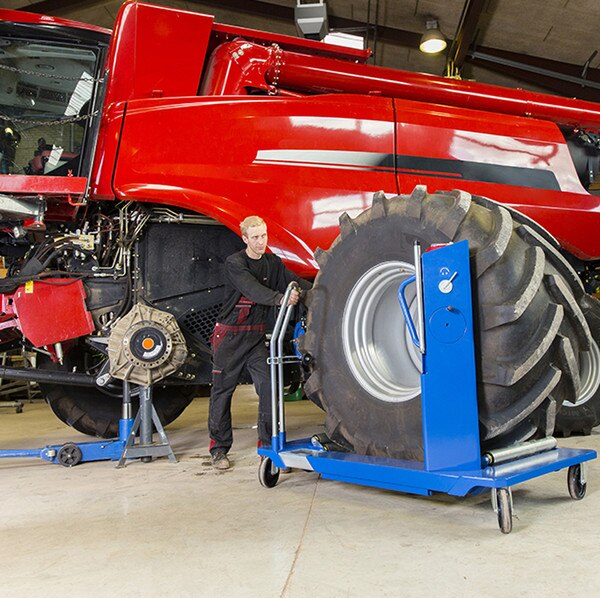

• Two robust handles makes it easy to manoeuvre in the workshop
• A simple switch makes expansion or retraction of the jaws very easy
• The wheel can be secured with a ratchet strap for maximum safety
• Handle wheel sizes from min. Ø 1000 mm - max Ø 2400 mm
• Wheel widths up to maximum 1200 mm
• Optimised packaging for ease of delivery and reduction of freight cost


Specifications:

• Capacity 1,5 t
• Height 1455 mm
• Length 1040 mm

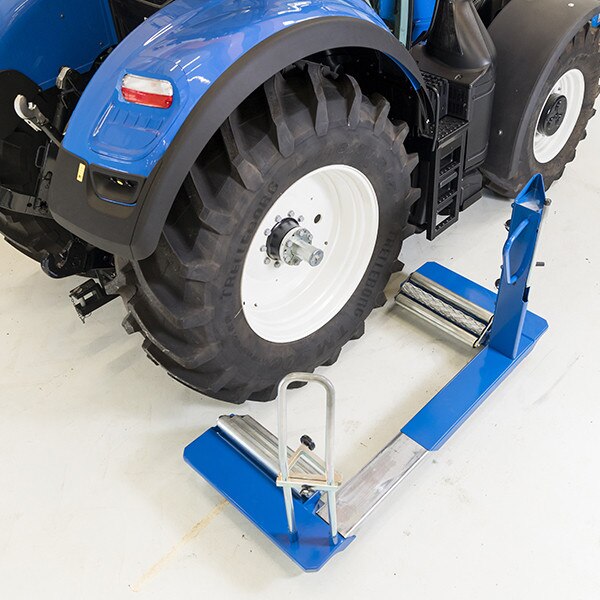

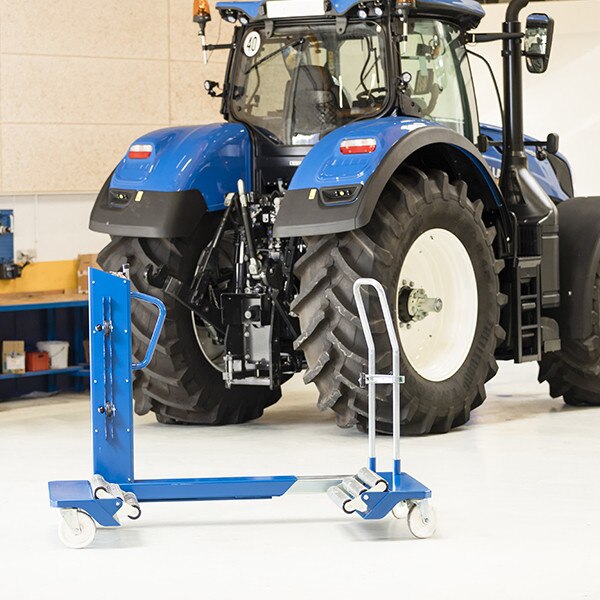

• Width 1625 - 2375 mm
• Roller distance 900 - 1650 mm
• Roller length 690 mm
• Wheel sizes 1000 - 2400 mm
• Castor wheel 200 mm
• Handle for wheel rotation Yes
• Weight 225 kg

10 year warranty on frame, chassis and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder).
