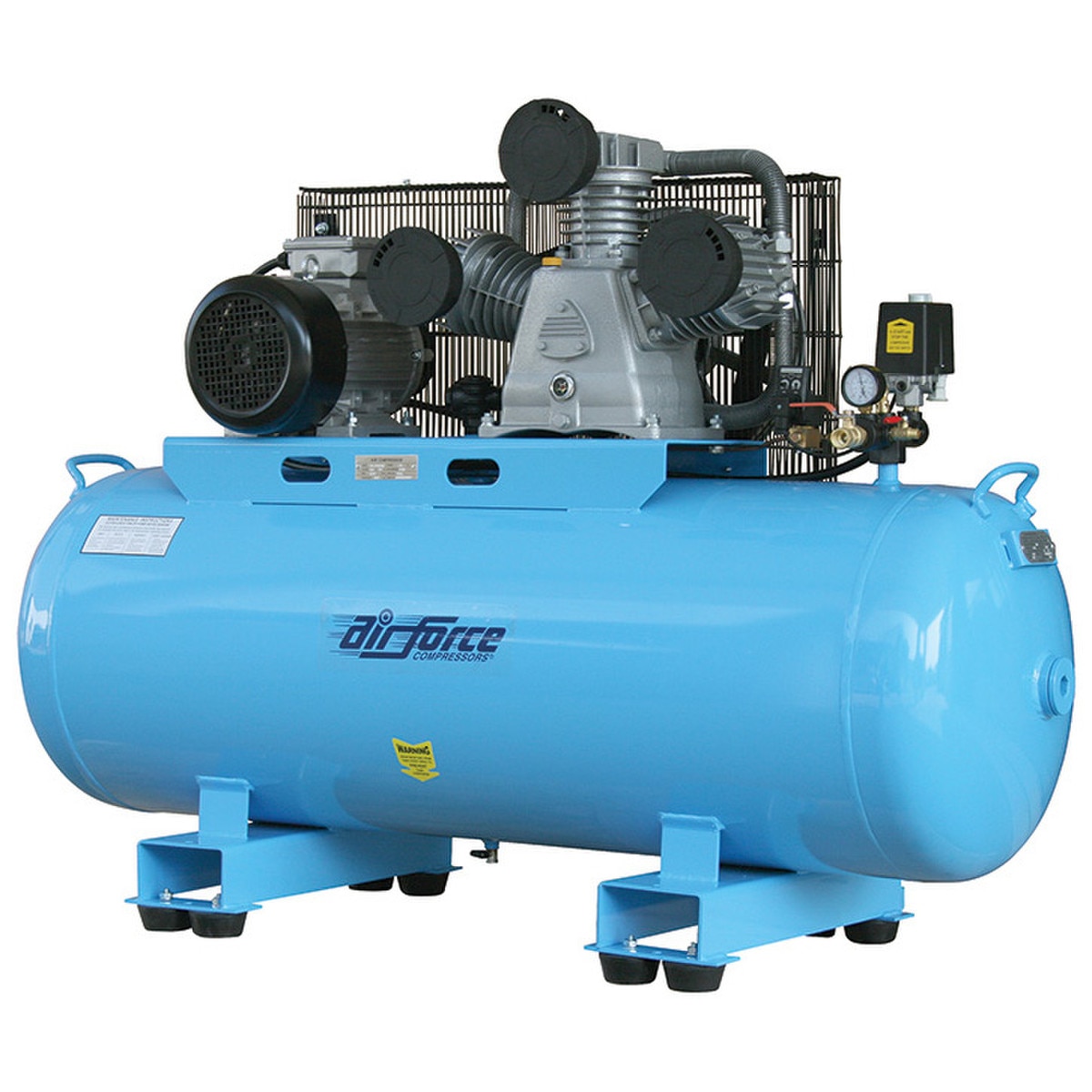

AirForce Fixed Industrial Piston Electric Compressor AF38, 300L, 7.5Hp, 3ph, 31CFM

Industrial AF Series

Three-Stage Fixed Skid Base Industrial Piston Compressor, Electric Drive via Belt

• Pressure: 8 Bar / 116 PSI
• Cylinders: 3
• Nominal Motor Rating: 7.5 Hp / 5.6 kW
• Voltage: 415V / 3ph / 50hz (approx 9.2A load at 0.85 lag PF per phase)
• Air Displacement: 885 l/min / 31 CFM
• Tank: 300 litres
• Rotational Speed: 2,800 RPM
• Soft Starter
• Regulator & Pressure Gauge

Downloads

Specification Sheet
