Autel MaxiSys ADAS Portable Calibration Tool—MA600
Details
Autel MaxiSys ADAS Portable Calibration Tool
The Autel MaxiSYS ADAS Calibration solution is becoming more portable.
The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple.
Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles.
With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more.
Portable expansive affordable!
MaxiSYS ADAS Functions
Lane Departure Warning (LDW)
Warns driver when vehicle begins to move out of freeway lane.
Designed to minimize causes collisions: driver error, distractions and drowsiness.
ADAS Calibration Frame Comparison
Diagnostic Scanner / Scantool / Tablet is not included.
The MA600 is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE and MSADAS.
All tablet models require an additional one-time purchase software application upgrade, except MSADAS.
Tablets with previously active ADAS application software will not be compatible with MA600.

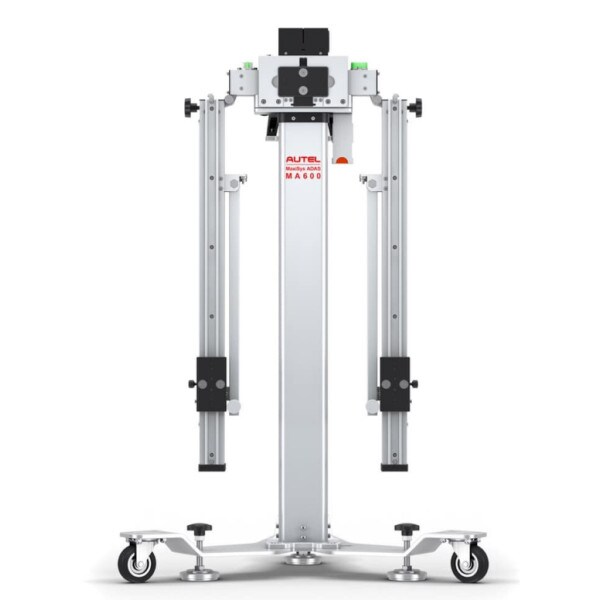

MaxiSys ADAS Calibration Frame-MA600
Portable Calibration Frame and Accessories
MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.
MaxiSys ADAS Kit -- What's Included?
- 1000001268 (MA600 Frame)
- 1000001269 (5 Line Laser Kit)
- CSC0601/00 (VW Board)
- CSC0601/02 (Benz Board)
- CSC0601/03 (Nissan Board 1)
- CSC0601/04 (Nissan Board 3)
- CCS0601/05 (Honda Pattern 1)
- CSC0601/06 (Nissan Pattern 3)
- CSC0601/07 (Kia/Hyundai Pattern 1)
- CSC0601/08 (Honda Pattern 2)
- CSC0601/09 (Kia/Hyundai Pattern 2)
- CSC0601/11 (Toyota Pattern 1)
- CSC0601/12 (Mazda Pattern 1)
- CSC0601/13 (Mazda Pattern 2)
- CSC0601/14 (Subaru Board)
- CSC0601/15 (Toyota Pattern 2)
- CSC0601/19 (Benz/Sprinter Pattern 2)
- CSC0601/22 (Mitsubishi Pattern)
- CSC0601/23 (Suzuki Pattern)
- CSC0701/23 (Kia/Hyundai Aid Tool)
- ACC Bracket (Compatible with MA600 – No Part#) CSC0802/01) CSC0800, CSC0602, CSC0602/02,
- (Radar Corner Reflector Package Three Items)
- CSC0605/01 (Radar Calibration Box).
*Kit Content is subject to change at any time. Please contact us for confirmation.
MaxiSys ADAS -- MA600 Parts and Accessories
The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately.
The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure.
It's the new generation MaxiSYS MA600, smarter service made simple.
Lane Departure Warning
Pattern & Target Board
Different patterns for lane departure warning systems calibration of different vehicles.
Night Vision (NV)
Around View Monitoring (AVM)
Blind Spot Detection (BSD)
Rear Collision Warning (RCW)
Assistance Tools
MaxiSys ADAS Software
Precise MaxiSys ADAS Calibration Software
Based on the powerful MaxiSys platform, Autel presents the MaxiSys ADAS with the original complete diagnostic functions and comprehensive ADAS calibration.
Combined with the service manual, the procedures are presented with graphic instruction.
The MaxiSys tablet has the best possible OE-level diagnostic coverage to offer ADAS and diagnostic solutions for smarter repair and calibration.
Downloads
ADAS MA600 Calibration Toolset User Manual
ADAS MA600 Diagnostic Scanner (Scantool) User Manual (Scantool not included in MA600 Kit)
