FCAR F7S-G Diagnostic Scanner (Truck)

The only value for money diagnostic platform available in New Zealand that covers a broad range of on-highway and off-highway commercial vehicles and passenger vehicle applications for under $10,000.

This all in one tool will become your "go to" for all your diagnostic requirements replacing virtually all others.

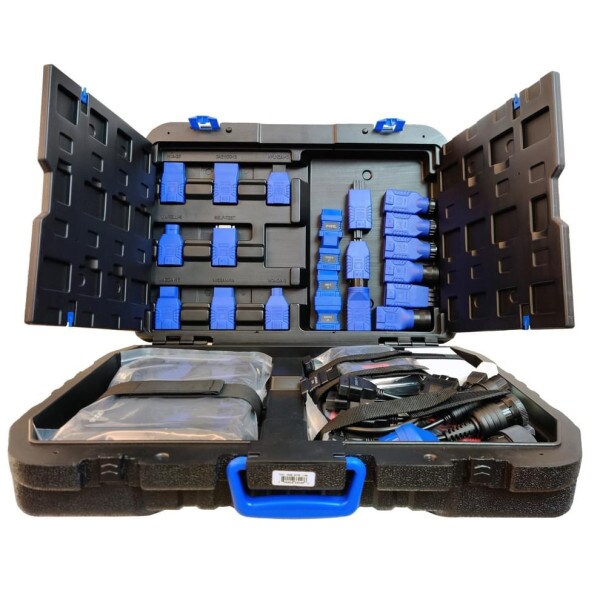

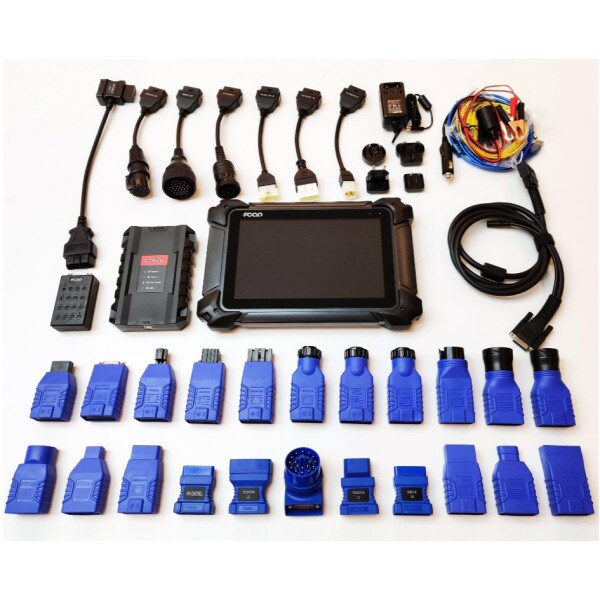

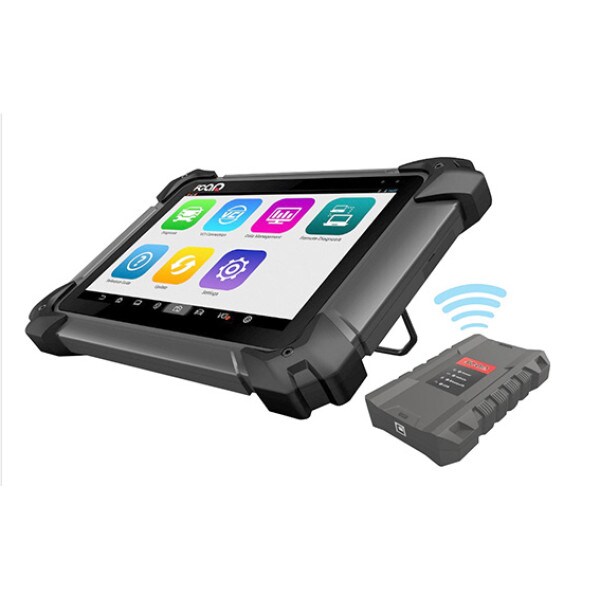

Comes with tablet, wireless VCI, charger and adaptor package – all protected in a rugged impact resistant carry case.

Includes two year free updates and covered by a 12 month manufacturer's warranty.

Parameters:

• Tablet CPU: Freescale Semiconductor (Quad-core), I.MX6Q, 1.2GHz
• Operating system: Android 11
• Screen size: 10.1" 16:10, 1280*800 IPS
• Storage capacity: RAM 2G; ROM 64GB
• WIFI: WIFI 802.11 (a/b/g/n) Frequency 2.4G+5.8G dual band WiFi
• Bluetooth: BT4.0 (BLE) class1 transmission distance: 10M
• Battery: Lithium-ion polymer battery, 3.7V/10000mAh
• Operating temperature: –10°C to 50°C / 14°F to 122°F
• Store temperature: –30°C to 70°C / –4°F to 140°F

Functions and Features:

• Instant remote technical support, via TeamViewer.
• One click feedback
• One click update
• Embedded technical information
• All-in-one diagnostic solution system for automotive aftermarket workshop
• Multi-languages make it easy understanding and operation
• Localised vehicles, including Indian, Malaysian and Australian
• 1 year warranty and 2 years free software update
• Huge database including over 200 vehicle models and technical materials provides better and faster troubleshooting
• All-in-one automotive diagnostic system covering passenger and light commercial vehicles, heavy duty trucks and off-road equipment
• VIN automatic detection for passenger vehicles

Special function of F7S-G:

• ABS EXHAUST
• BATTERY MATCH
• DPF
• ECU PROGRAMM
• ECU RESET
• EPB
• LAMP ADAPTION
• SAS
• SERVICE RESET
• SMARKEY PROGRAMM
• SRS RESET
• SUSPENSION
• THROTTLE RESET
• TPMS
• WINDOWS
• ODOMETER
