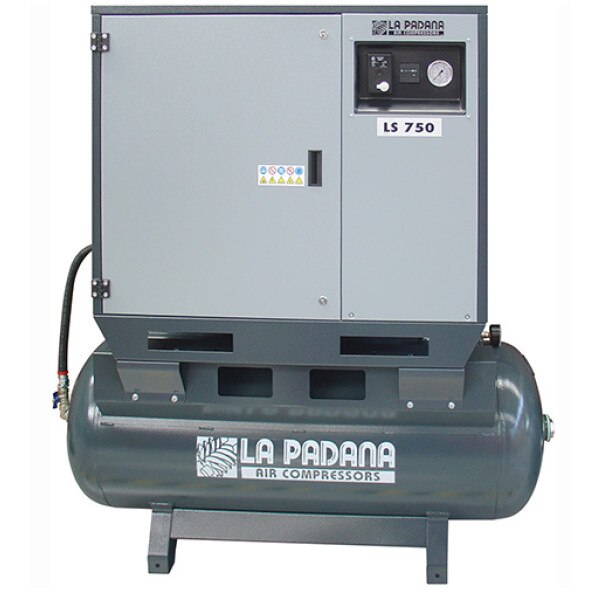

La Padana Silenced Industrial Piston Electric Compressor LS750-270, 270L, 7.5Hp, 3ph, 31CFM

Industrial Silent LS Series

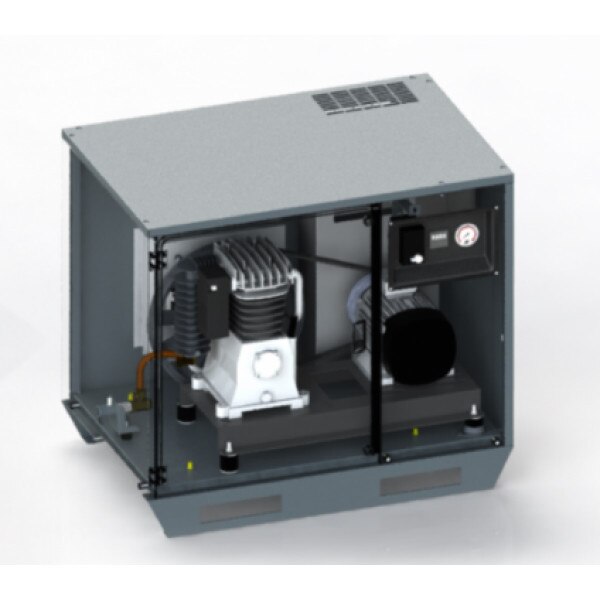

Double-Stage Silenced Industrial Piston Compressor, Electric Drive via Belt with Oil-Lubrication

• Pressure: 10 Bar / 145 PSI
• Cylinders: 2
• Nominal Motor Rating: 7.5 Hp / 5.5 kW
• Voltage: 400V / 3ph / 50hz (approx 9.4A load at 0.85 lag PF per phase)
• Air Displacement: 872 l/min / 31 CFM / 52.4 m3/h
• Tank: 270 litres
• Rotational Speed: 1,200 RPM
• Weight: 301 kg
• Package Dimensions: 155 x 73 x 165 cm
• Formally known as AF38SILENT

Downloads

LS Series Brochure
