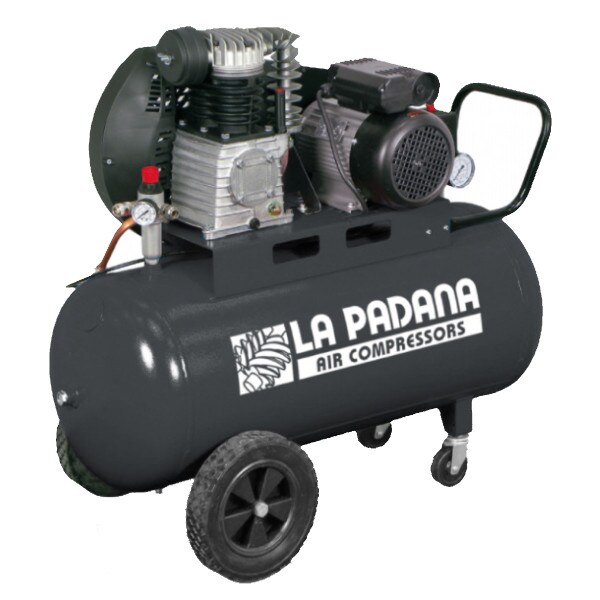

La Padana Portable Industrial Piston Electric Compressor PR 100/2M, 100L, 2Hp, 1ph, 9.2CFM

Industrial PR Series

Single-Stage Portable Industrial Piston Compressor, Electric Drive via Belt with Oil-Lubrication

• Compressor Pump: K 11 (K Series)
• Pressure: 10 Bar / 145 PSI
• Cylinders: 2
• Nominal Motor Rating: 2 Hp / 1.5 kW
• Voltage: 230V / 1ph / 50hz (approx 7.7A load at 0.85 lag PF per phase)
• Air Displacement: 260 l/min / 9.2 CFM / 15.6 m3/h
• Tank: 100 litres
• Rotational Speed: 1,180 RPM
• Weight: 69 kg
• Package Dimensions: 100 x 40 x 80 cm

Downloads

PR Series Brochure
