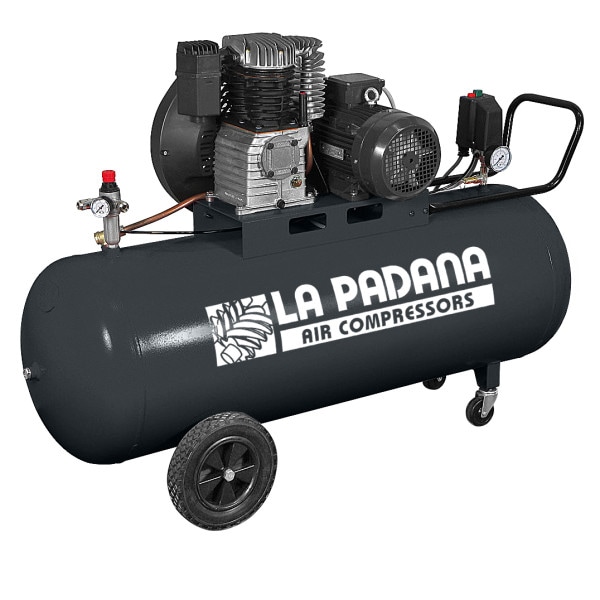

La Padana Portable Industrial Piston Electric Compressor PR 200/4T, 200L, 4Hp, 3ph, 19CFM
Details
Industrial PR Series
Single-Stage Portable Industrial Piston Compressor, Electric Drive via Belt with Oil-Lubrication
- Compressor Pump: K 18 (K Series)
- Pressure: 10 Bar / 145 PSI
- Cylinders: 1
- Nominal Motor Rating: 4 Hp / 3 kW
- Voltage: 400V / 3ph / 50hz (approx 5.1A load at 0.85 lag PF per phase)
- Air Displacement: 540 l/min / 19.1 CFM / 32.4 m3/h
- Tank: 200 litres
- Rotational Speed: 1,100 RPM
- Weight: 96 kg
- Package Dimensions: 145 x 50 x 107 cm
- Fitted with 3 phase 4 pin 20A plug (NZ) (Advise if different requirements upon order)
