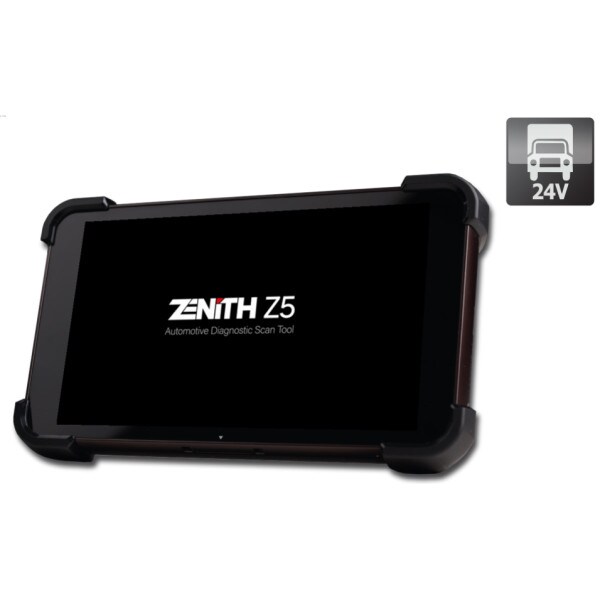

E-ZDS Zenith Z5 diagnostic scanner with OBD-II Adaptor

Overview:

Introducing EZD's first automotive diagnostic scan tool in the Z series.

In combination of their vast diagnostics software and world's best industrial tablet.

The Z5 will give the user diagnostic confidence.

Features:

• Fast Performance CPU
• A powerful octa-core processor for optimum diagnostic performance and fast operation to perfectly manage workshop conditions

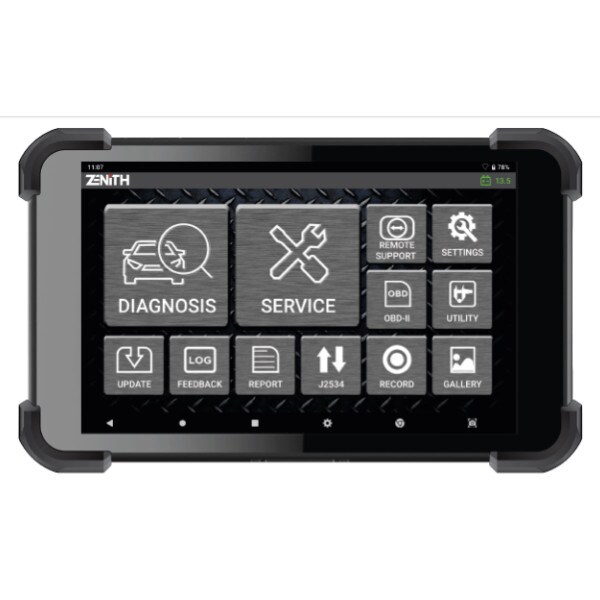

• Smart Operating System
• Based on Android 9 OS providing quick boot-up, multi-tasking, fast networking and enhanced system security
• Eyellumicate™ 8” LCD
• Eyellumicate™ Display LCD provides a crystal clear view both indoors and out, offering field-optimized display under bright workshop environment
• Eyellumicate™ Display Technology
• Eyellumicate™ Display technology enhances touch functionality and allows technicians to perform tasks with work gloves on under any harsh workshop conditions

Service Function

Diagnostic software programmed by engineers with automotive technicians in mind.

Regular and urgent on-demand software updates bring diagnostic confidence to the user.

• J2534 Pass-thru
• Zenith Z5 functions as a J2534 ‘Pass-Thru’ device for programming the ECUs for multiple carlines.

24V Commercial Vehicles

Zenith Z5 hardware accepts power & signals of a 24V system, and supports Bi-directional communications with commercial trucks and buses.

Wireless Connectivity

Robust connectivity allows for smart updates, quick feedback, Teamviewer Support, Bluetooth printing, browsing and much more.

Pre & Post Diagnostic Report

An intuitively designed diagnostic report function for fast and easy creation of the report on pre and post scan results.

Lightweight, Robust Design

Compact, yet rugged. Ergonomic size to hold in one hand for long periods of time. Zenith Z5 is a light weight scan tool (680g or 1.5 lbs) with sleek, ruggedized design.

Components: (Basic Kit)

• Zenith Z5 Main Body
• Main DLC Cable
• AC/Dc Adaptor
• Z5 Packing Box
• Quick Manual
• Z5 Battery
• Z5 Stylus Pen
• Z5 Stylus Pen string
• Z5 Rear hand Strap
• USB Cable

Optional ODB Adaptors:

• TOYOTA 17+1P Square
• TOYOTA 17P Round
• HONDA/ACURA 3P
• MAZDA 17P
• SUBARU 9P
• MITSUBISHI/ HYUNDAI 12P+16P
• Kia 20P-A type Connector
• Kia 20P-B type Connector
• NISSAN 14P
• SSANGYONG 14P
• SSANGYONG 20P
• J1939 9P + J1708 6P
• ISUZU 20P-10P-3P
• Universal Adaptor Hyundai Commercial 4P
• Hyundai Commercial 16P
• Hyundai Commercial 4P CNG
• HINO 12P-5P
• AUDI/VW 4P
• BMW 20P
